Product Specifications
| Manufacturer Part Number | 02510289 |
| Minimum Cutting Diameter (Decimal Inch) | 0.237" |
| Minimum Cutting Diameter (mm) | 6.01mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.315" |
| Maximum Cutting Diameter (mm) | 8.00mm |
| Flange Diameter (Decimal Inch) | 0.984" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Maximum Cutting Depth (Decimal Inch) | 0.110" |
| Maximum Cutting Depth (mm) | 2.80mm |
| Body Length (Decimal Inch) | 0.984" |
| Body Length (mm) | 25.00mm |
| Shank Length (Decimal Inch) | 1.752" |
| Shank Length (mm) | 44.50mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |

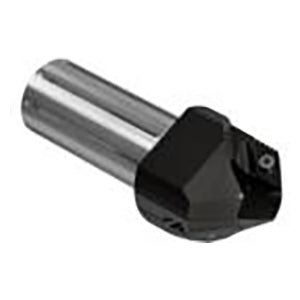

| Product Type | Combination Chamfer & Countersink Drill |
