Product Specifications
| Manufacturer Part Number | 02506169 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.969" |
| Minimum Cutting Diameter Internal (mm) | 50.00mm |

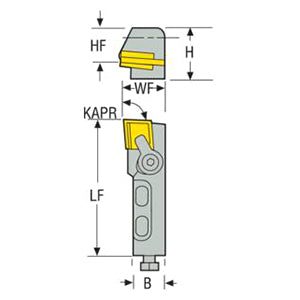

| Functional Length (Decimal Inch) | 2.165" |
| Functional Length (mm) | 55.00mm |
| Shank Width (Decimal Inch) | 0.551" |
| Shank Width (mm) | 14.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.791" |
| Height of Tool Holder Shank (mm) | 20.10mm |
| Functional Height (Decimal Inch) | 0.472" |
| Functional Height (mm) | 12.00mm |
| Mounting Hole Distance (Decimal Inch) | 0.787" |
| Mounting Hole Distance (mm) | 19.99mm |
| Functional Width (Decimal Inch) | 0.787" |
| Functional Width (mm) | 20.00mm |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | -10 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 100 Degree |
| Inclination Angle (Degree) | -10 Degree |
| Shank Type | Cartridges |

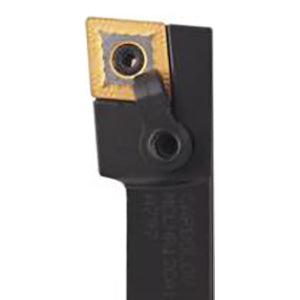

| Product Type | Indexable Turning Cartridge |
