Product Specifications
| Manufacturer Part Number | 02505955 |

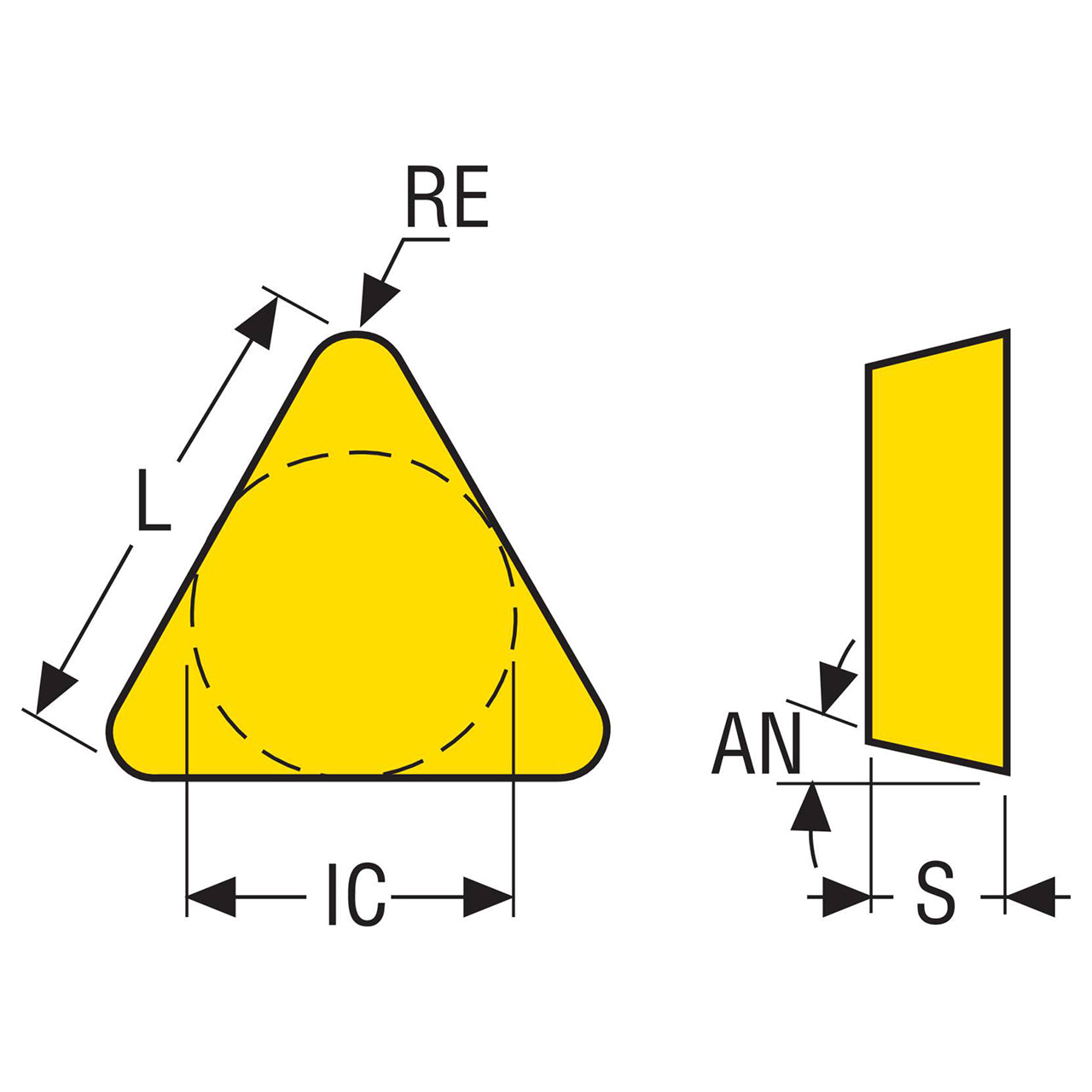

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Corner Chamfer Width (Decimal Inch) | 0.009" |
| Corner Chamfer Width (mm) | 0.22mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.188" |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 3 |
| Insert Included Angle (Degree) | 60 Degree |
| Insert Hand | Neutral |
| Material | Carbide |
| Product Type | Milling Insert |
