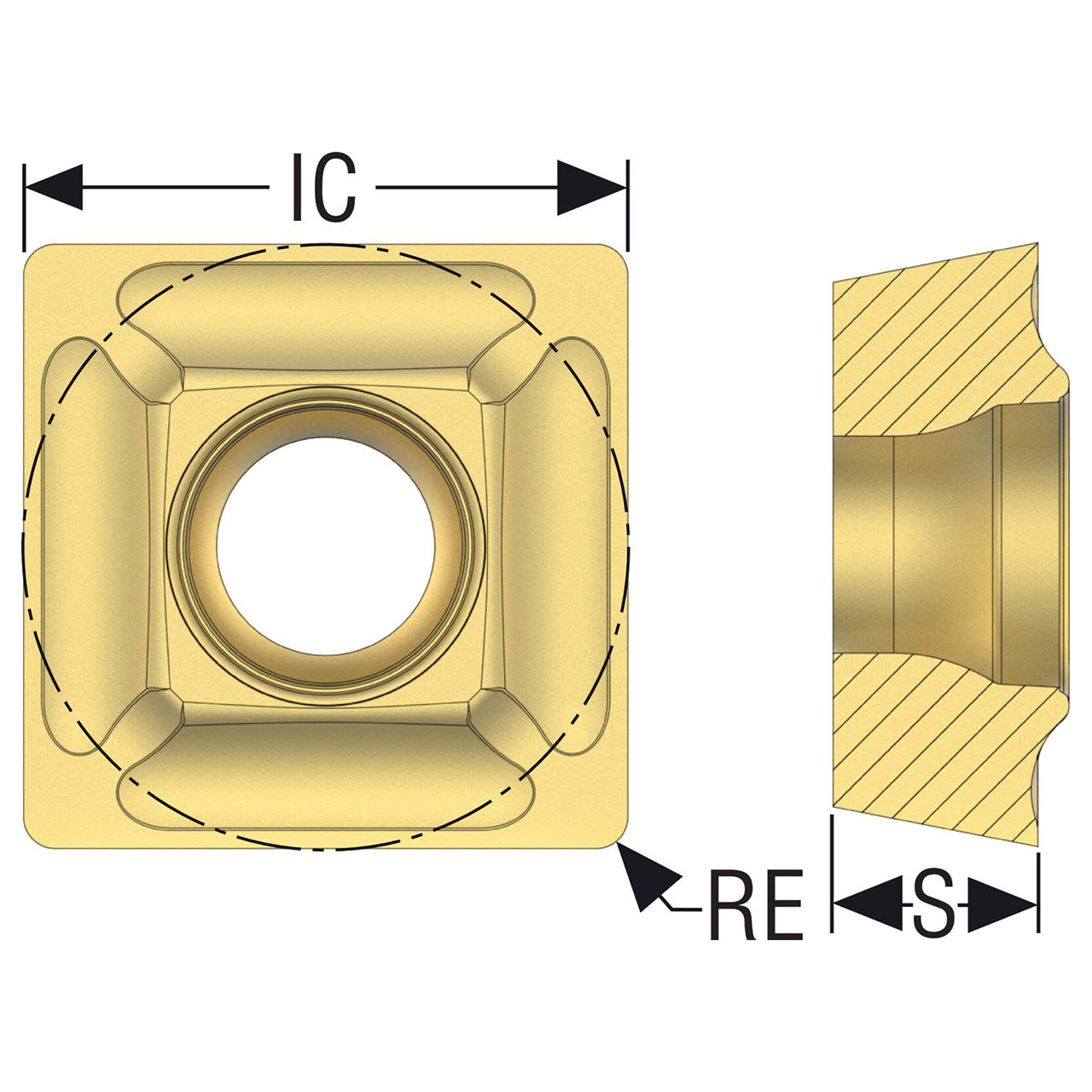

Product Specifications
| Manufacturer Part Number | 02505935 |
| Fixing Hole Diameter (Decimal Inch) | 0.154" |
| Fixing Hole Diameter (mm) | 3.90mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 4 |
| Pocket Seat Code of The Cutter | SP.X12T3 |
| Insert Size And Shape | SPMX12T3 |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 14 Degree |
| Material | Carbide |
| Product Type | Milling Insert |
