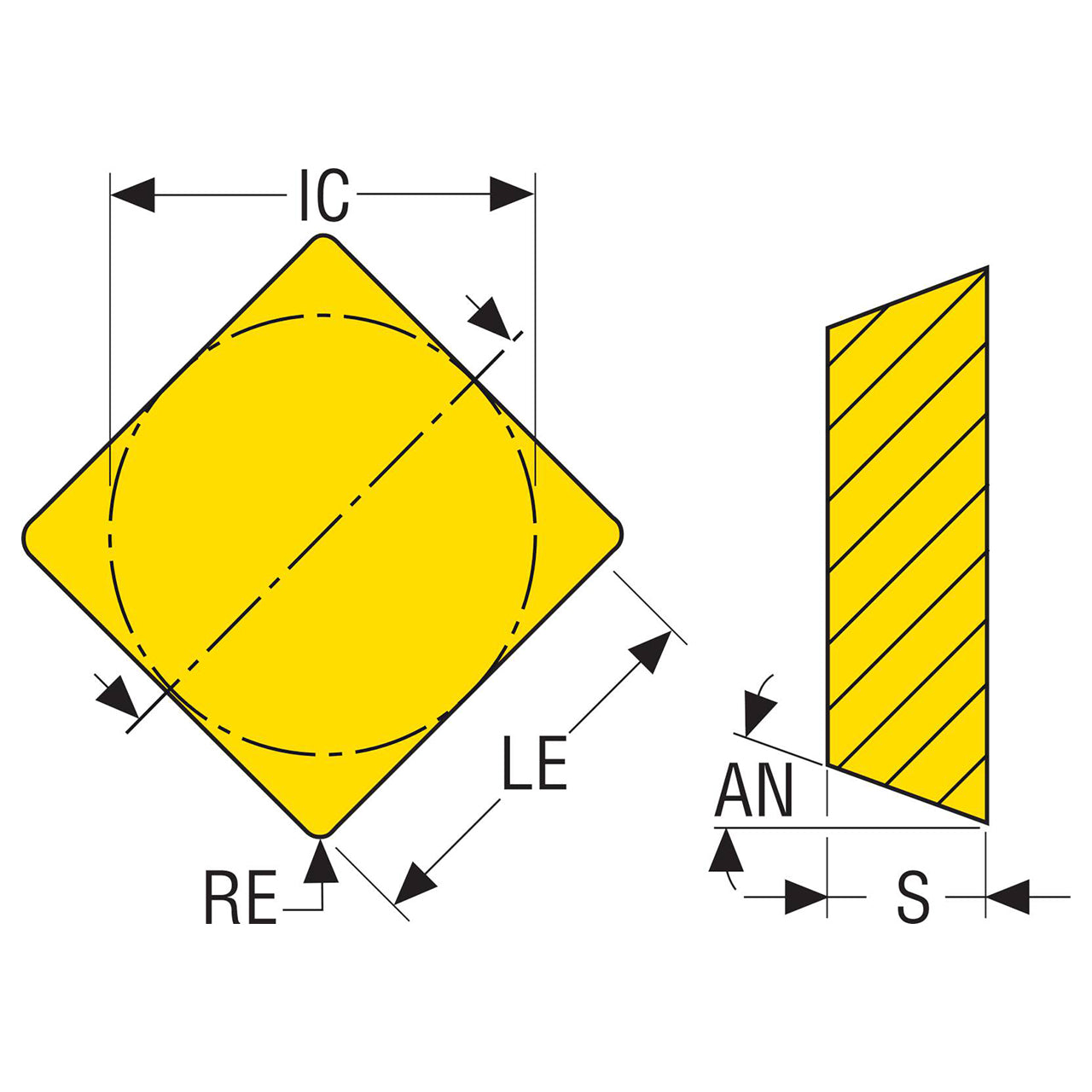

Product Specifications
| Manufacturer Part Number | 02505920 |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.437" |
| Cutting Edge Effective Length (mm) | 11.10mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.125" |
| Insert Thickness (mm) | 3.18mm |
| Clearance Angle Major (Degree) | 20 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M12 |
| Pocket Seat Code of The Cutter | SE..1203 |
| Insert Size And Shape | SENN1203 |
| Insert Hand | Neutral |
| Material | Carbide |
| Product Type | Milling Insert |
