Product Specifications
| Manufacturer Part Number | 02479647 |
| Cutting Diameter (mm) | 8.00mm |
| Cutting Diameter 1 (mm) | 8.00mm |
| Connection Diameter Machine Side (mm) | 7.80mm |
| Shank Diameter (mm) | 7.80mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 15.79mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.40mm |
| Overall Length (mm) | 70.00mm |
| Cutting Edge Effective Length (mm) | 10.00mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.500" |
| Functional Width (mm) | 38.10mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Corner Radius (mm) | 0.10mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JH40 |
| Cutting Geometry Type Technical | JH40 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 25 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 20 Degree |
| Axial Rake Angle (Degree) | 25 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Coating | Uncoated |

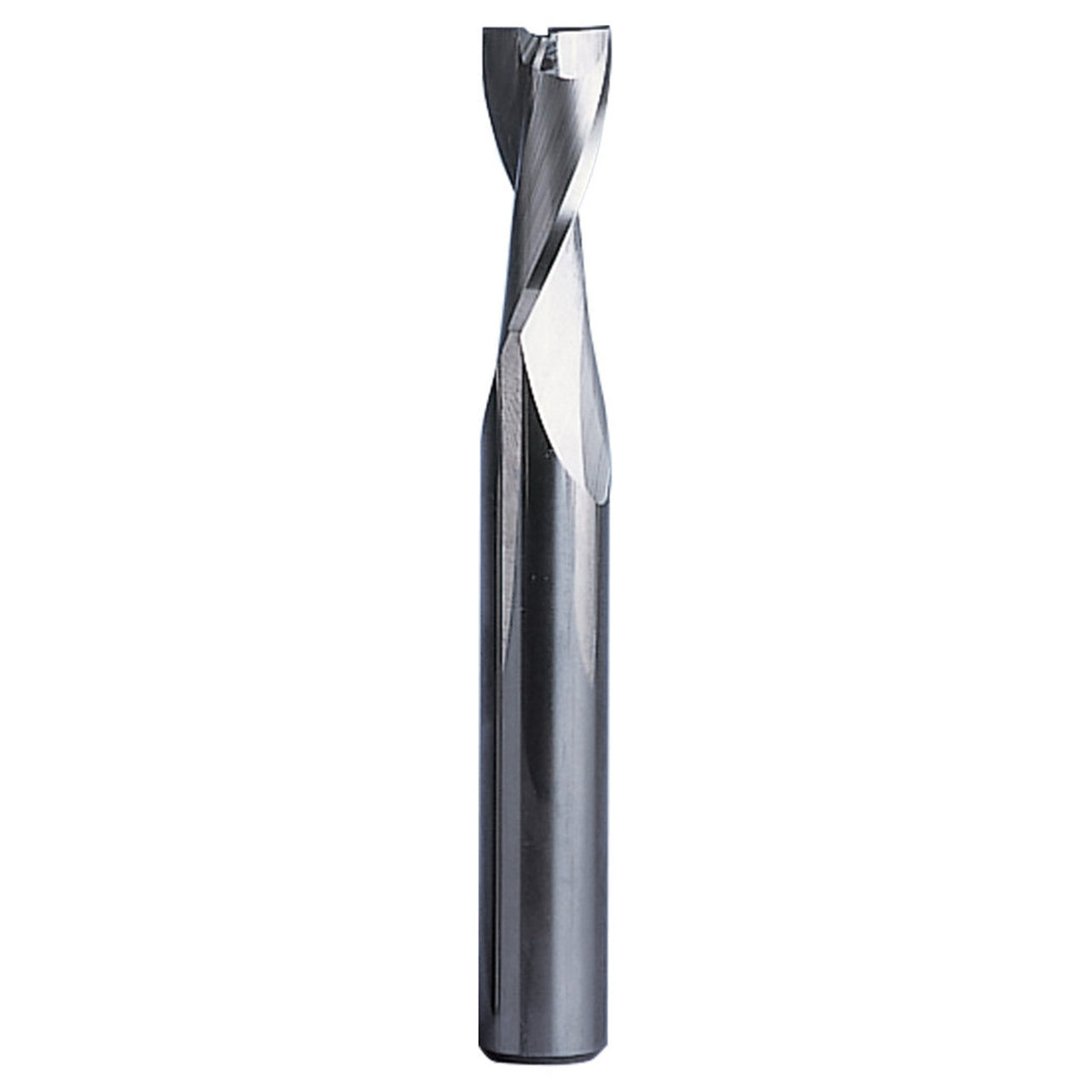

| Product Type | Corner Radius End Mill |
