Product Specifications
| Manufacturer Part Number | 02466284 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 4.724" |
| Minimum Cutting Diameter Internal (mm) | 120.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.874" |
| Minimum Cutting Diameter Internal 3 (mm) | 200.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 2.559" |
| Functional Length (mm) | 65.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.102" |
| Maximum Radial Cutting Depth (mm) | 2.60mm |
| Maximum Cutting Depth (Decimal Inch) | 0.095" |
| Maximum Cutting Depth (mm) | 2.40mm |
| Functional Width (Decimal Inch) | 1.772" |
| Functional Width (mm) | 45.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 37 Degree |
| Insert Shape Code | C |
| Shank Type | Seco-Capto |

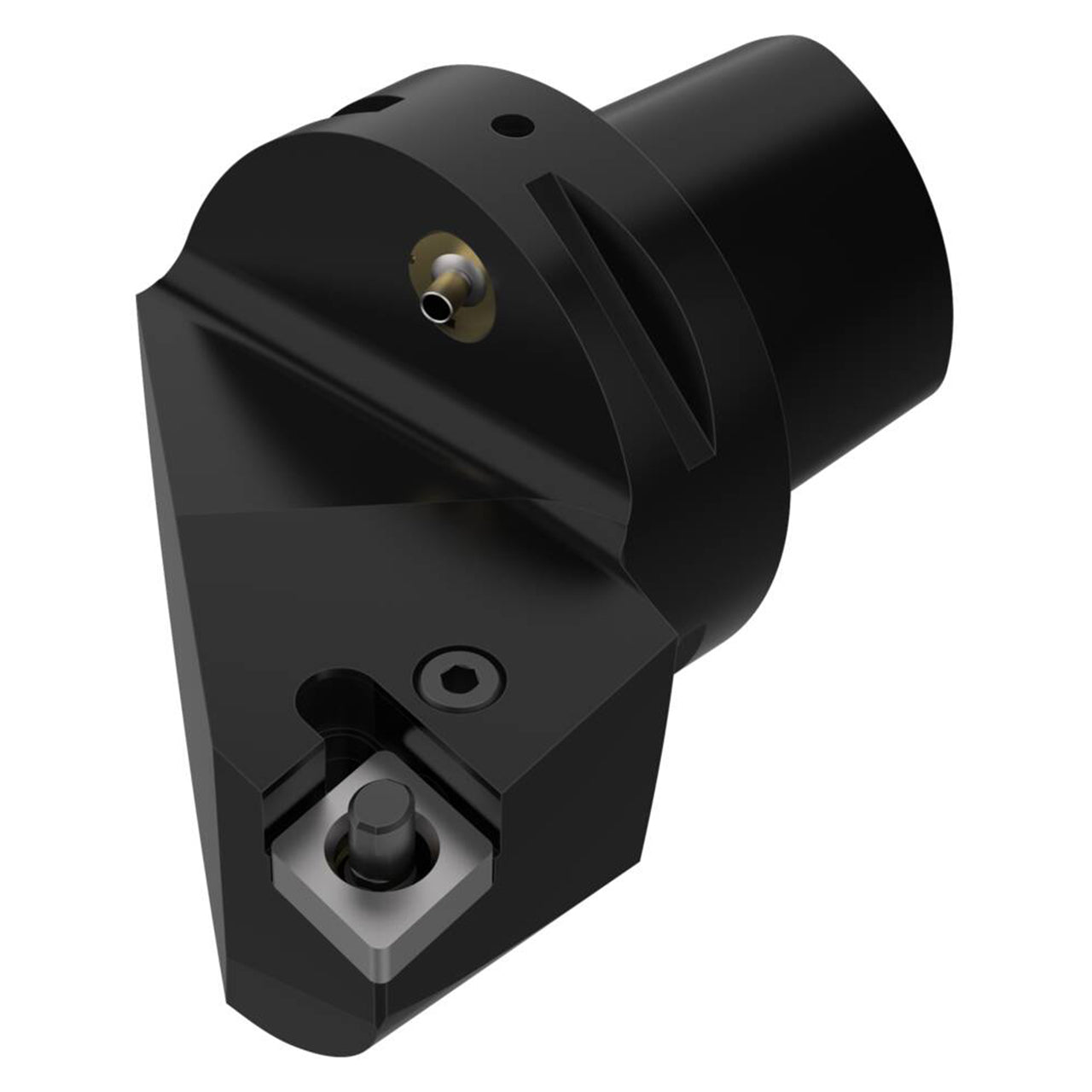

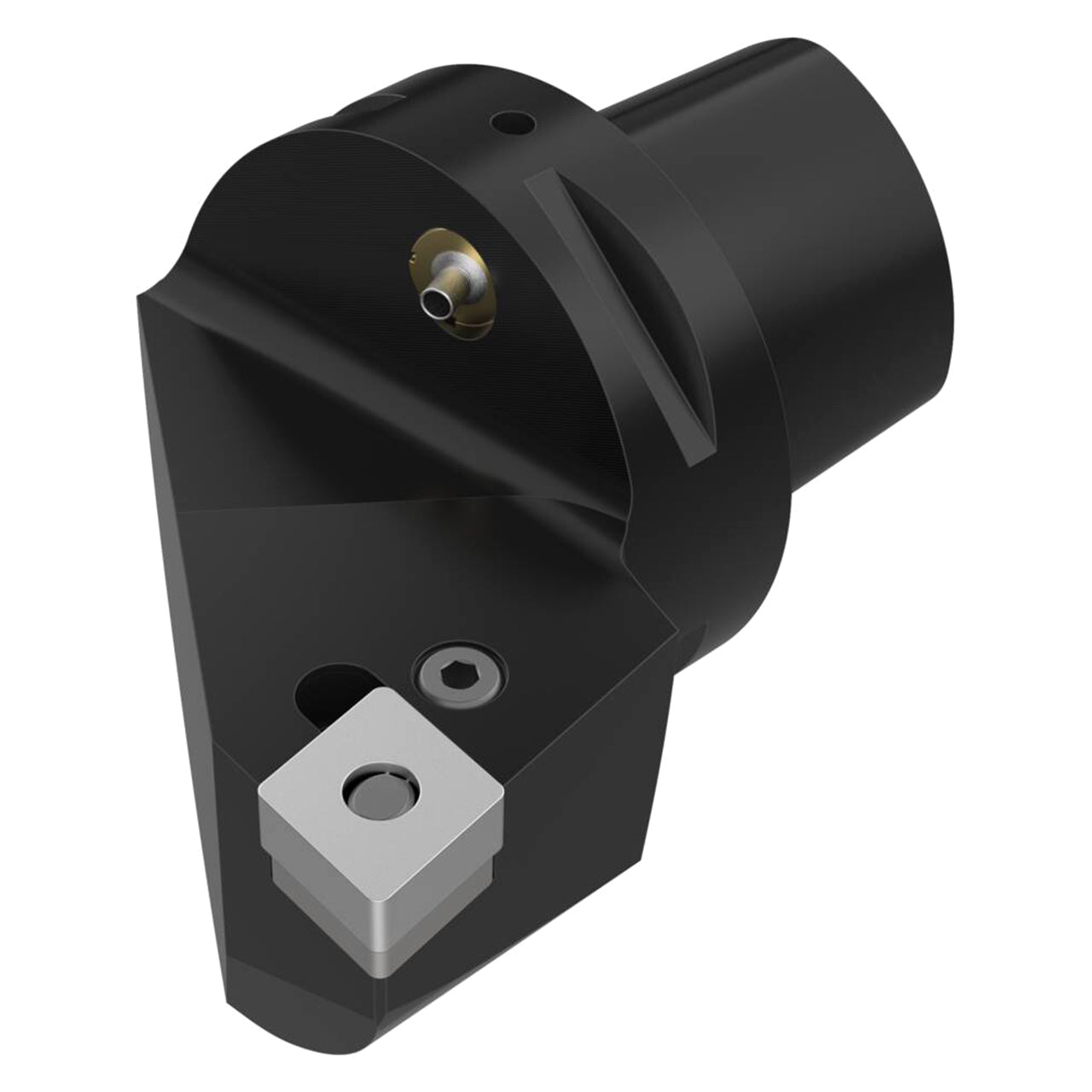

| Product Type | Modular Turning Head |
