Product Specifications
| Manufacturer Part Number | 02462586 |
| Minimum Cutting Diameter (Decimal Inch) | 0.118" |
| Minimum Cutting Diameter (mm) | 3.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.158" |
| Connection Diameter Machine Side (mm) | 4.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.185" |
| Maximum Cutting Diameter (mm) | 4.70mm |
| Shank Diameter (Decimal Inch) | 0.158" |
| Shank Diameter (mm) | 4.00mm |
| Corner Radius (Decimal Inch) | 0.006" |
| Corner Radius (mm) | 0.15mm |
| Body Length (Decimal Inch) | 0.394" |
| Body Length (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 0.610" |
| Functional Length (mm) | 15.50mm |
| Overall Length (Decimal Inch) | 1.209" |
| Overall Length (mm) | 30.70mm |
| Maximum Depth of Cut (mm) | 0.06mm |
| Maximum Depth of Cut (Decimal Inch) | 0.002" |
| Body Width (Decimal Inch) | 0.1083 |
| Body Width (mm) | 2.75 |
| Functional Width (Decimal Inch) | 0.053" |
| Functional Width (mm) | 1.35mm |
| Tool Cutting Edge Angle (Degree) | 98 Degree |

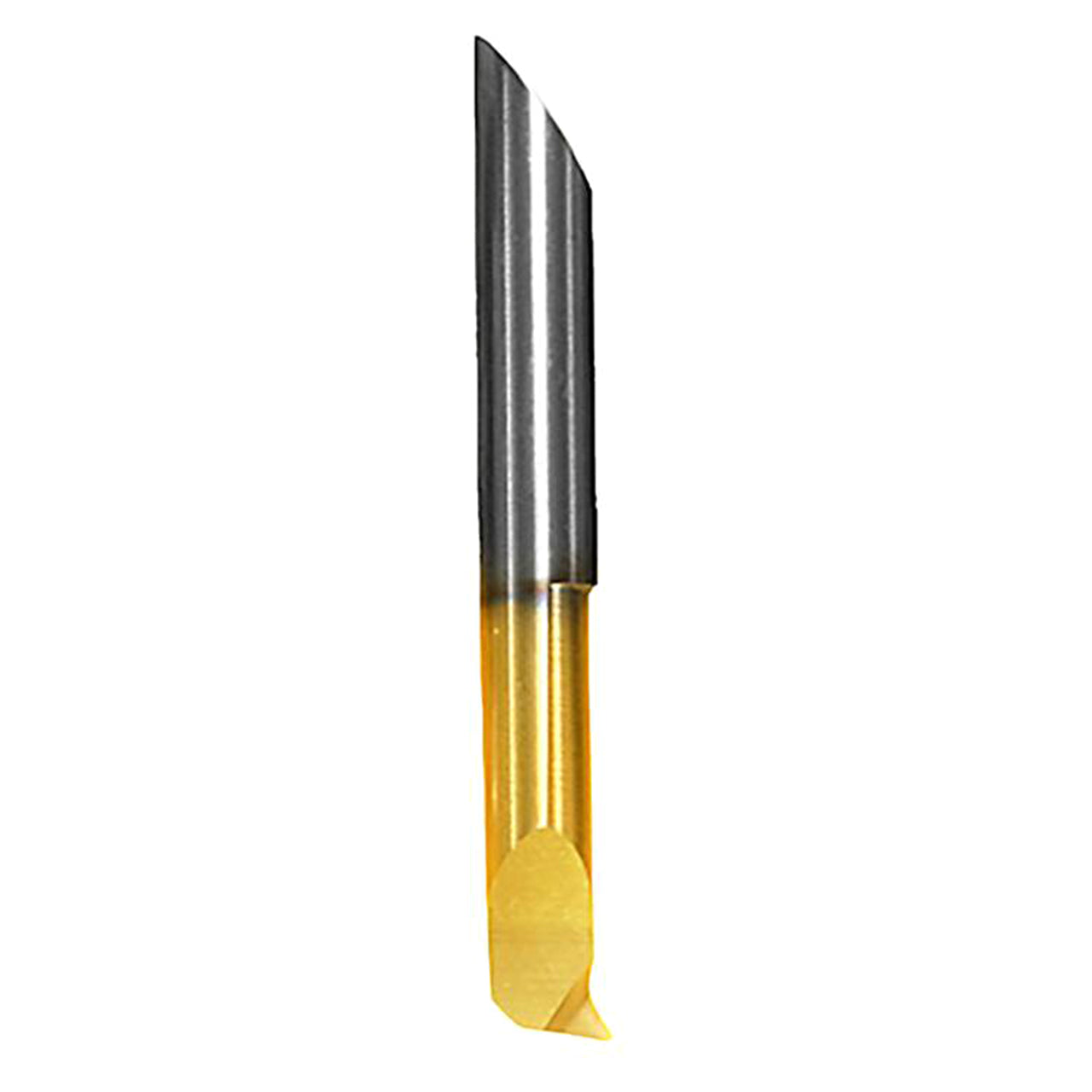

| Product Type | Boring Bar |
