Product Specifications
| Manufacturer Part Number | 02456293 |

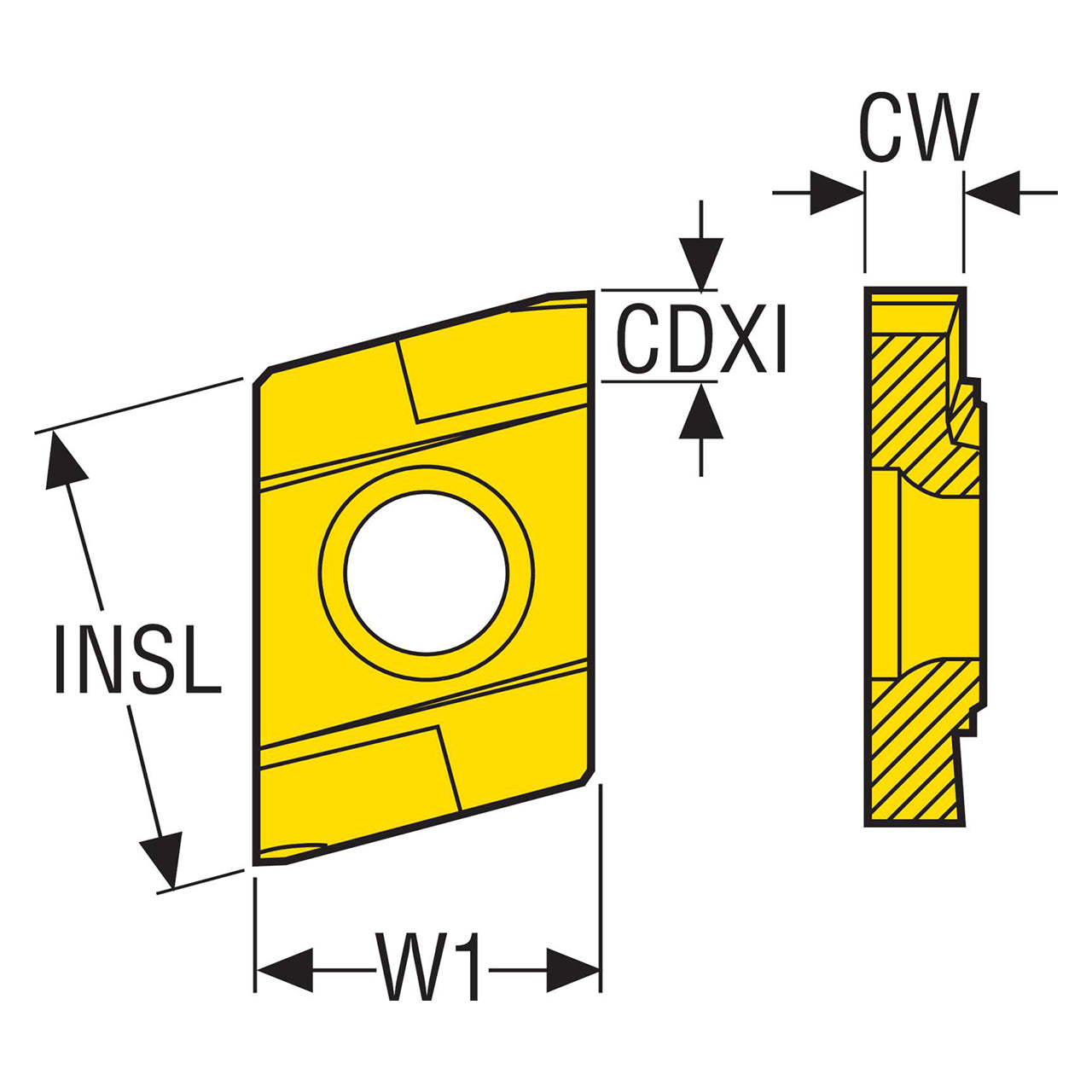

| Maximum Cutting Depth Insert (Decimal Inch) | 0.102" |
| Maximum Cutting Depth Insert (mm) | 2.60mm |
| Cutting Width (Decimal Inch) | 0.074" |
| Cutting Width (mm) | 1.88mm |
| Insert Length (Decimal Inch) | 0.532" |
| Insert Length (mm) | 13.50mm |
| Insert Width (Decimal Inch) | 0.354" |
| Insert Width (mm) | 9.00mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | E08 |
| Insert Size And Shape | R335.15-13 |
| Insert Rake Angle (Degree) | 15 Degree |
| Material | Carbide |
| Insert Hand | Right Hand |

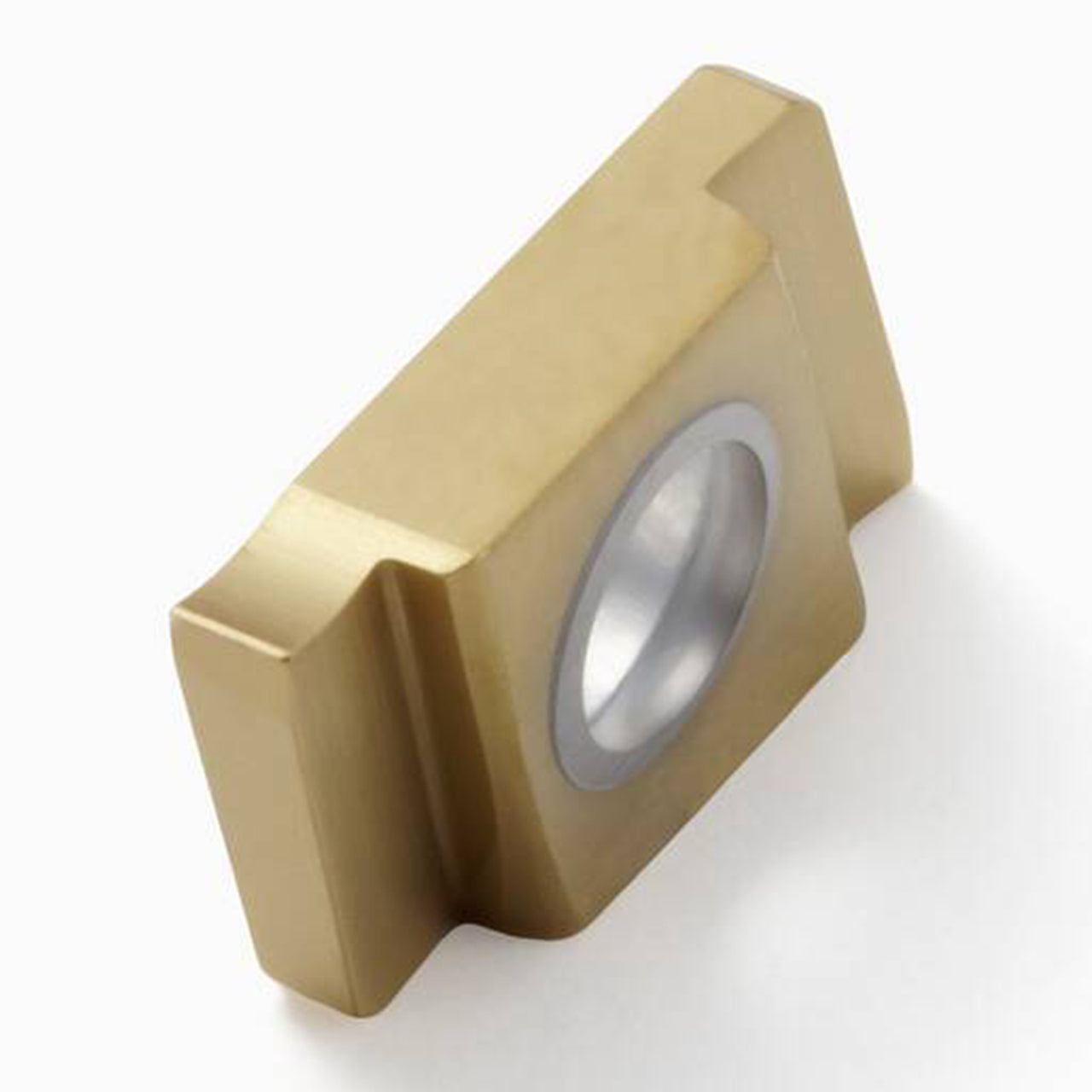

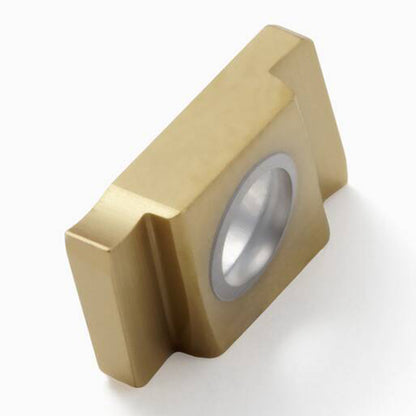

| Product Type | Disc Milling Insert |
