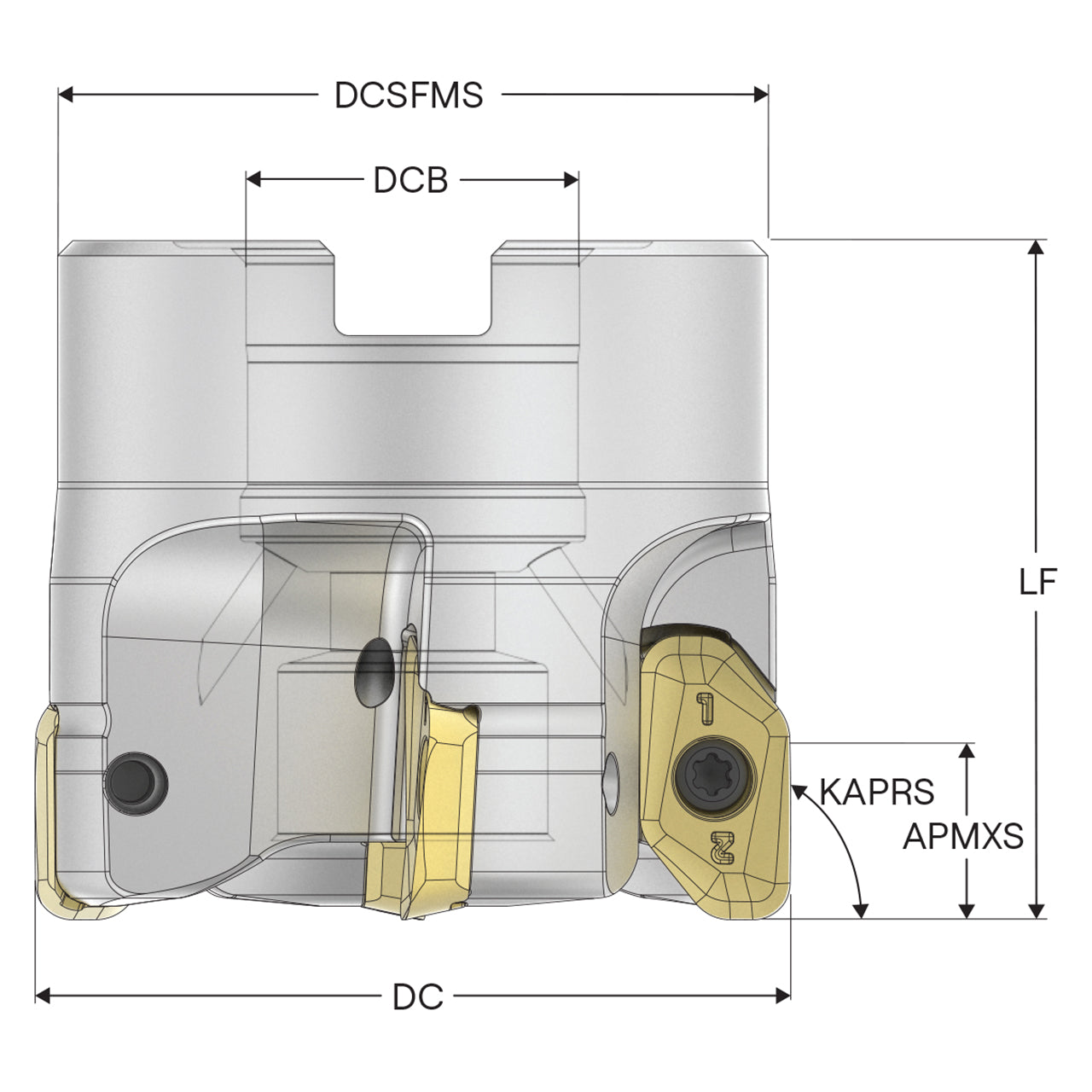

Product Specifications
| Manufacturer Part Number | 02450395 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.472" |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.850" |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (Decimal Inch) | 1.772" |
| Rotational Speed Maximum | 30000 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 4 |
| Product Series | R220.97 |

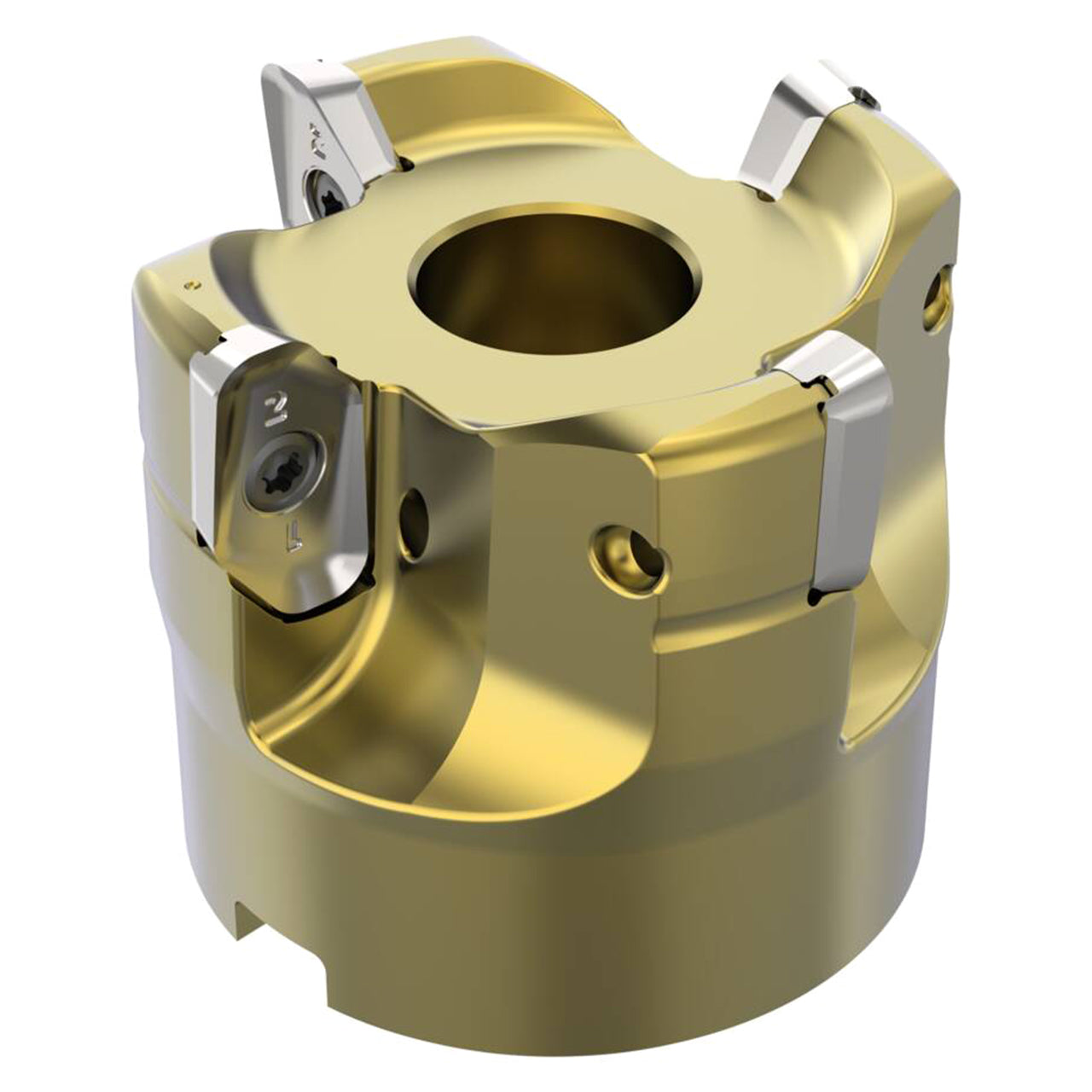

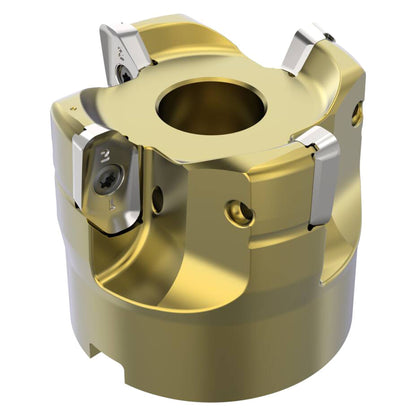

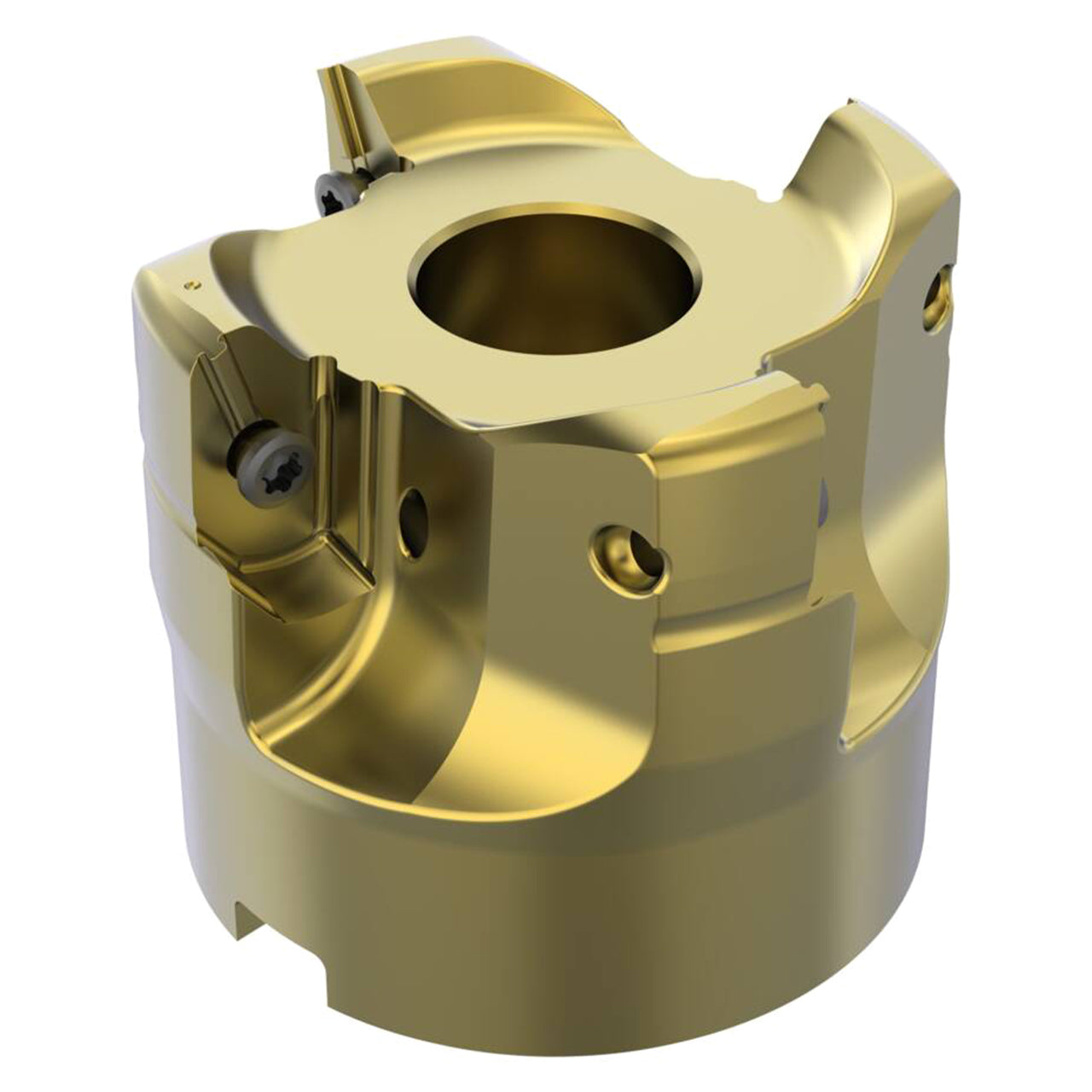

| Product Type | Indexable Copy Face Mill |
