Product Specifications
| Manufacturer Part Number | 02445801 |
| Minimum Cutting Diameter (mm) | 13.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 13.99mm |
| Flange Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 16.00mm |
| Body Diameter (mm) | 12.50mm |
| Shank Length (mm) | 48.00mm |
| Usable Length (mm) | 40.00mm |
| Overall Length (mm) | 116.80mm |
| Corner Chamfer Width (Decimal Inch) | 0.039" |
| Corner Chamfer Width (mm) | 1.00mm |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

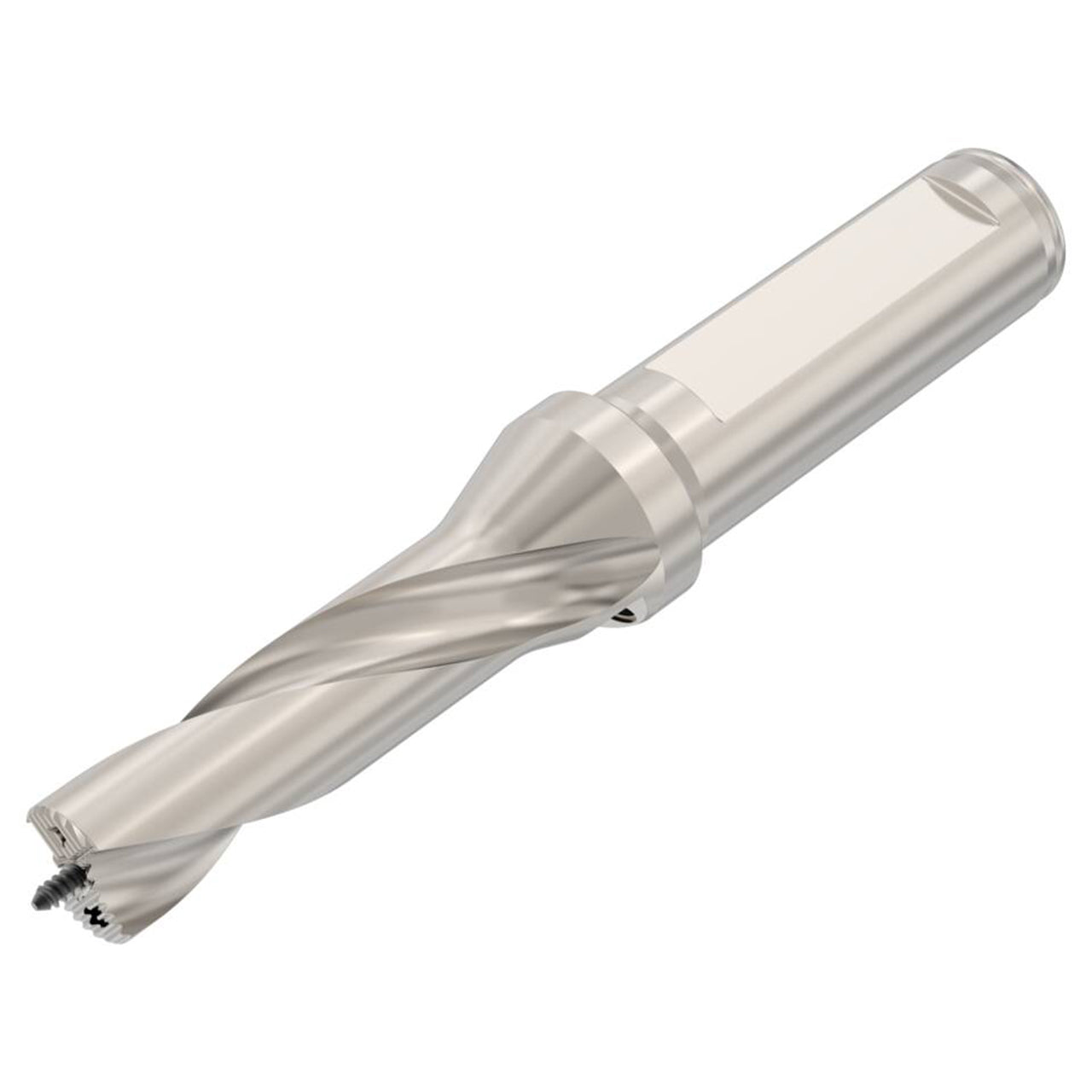

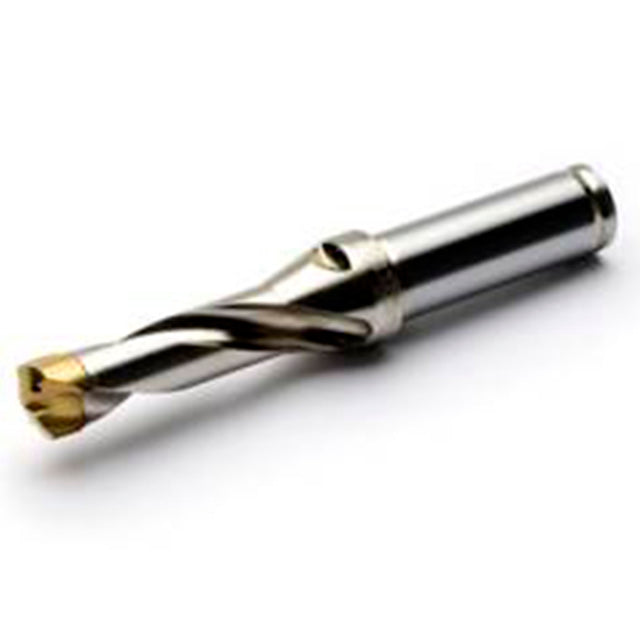

| Product Type | Replaceable-Tip Drill |
