Product Specifications
| Manufacturer Part Number | 02444732 |
| Body Diameter (Decimal Inch) | 0.906" |
| Body Diameter (mm) | 23.00mm |
| Body Diameter 1 (Decimal Inch) | 0.972" |
| Body Diameter 1 (mm) | 24.70mm |
| Body Diameter 2 (Decimal Inch) | 1.870" |
| Body Diameter 2 (mm) | 47.50mm |
| Body Length (Decimal Inch) | 8.898" |
| Body Length (mm) | 226.00mm |
| Body Length 1 (Decimal Inch) | 1.181" |
| Body Length 1 (mm) | 30.00mm |
| Body Length 2 (Decimal Inch) | 7.874" |
| Body Length 2 (mm) | 200.00mm |
| Body Length 3 (Decimal Inch) | 8.898" |
| Body Length 3 (mm) | 226.00mm |
| Functional Length (Decimal Inch) | 9.646" |
| Functional Length (mm) | 245.00mm |
| Protruding Length (Decimal Inch) | 9.646" |
| Protruding Length (mm) | 245.00mm |
| Overall Length (Decimal Inch) | 13.650" |
| Overall Length (mm) | 346.70mm |
| Body Half Taper Angle Degree) | 3.8 Degree |
| Data Chip Provision | 1 |

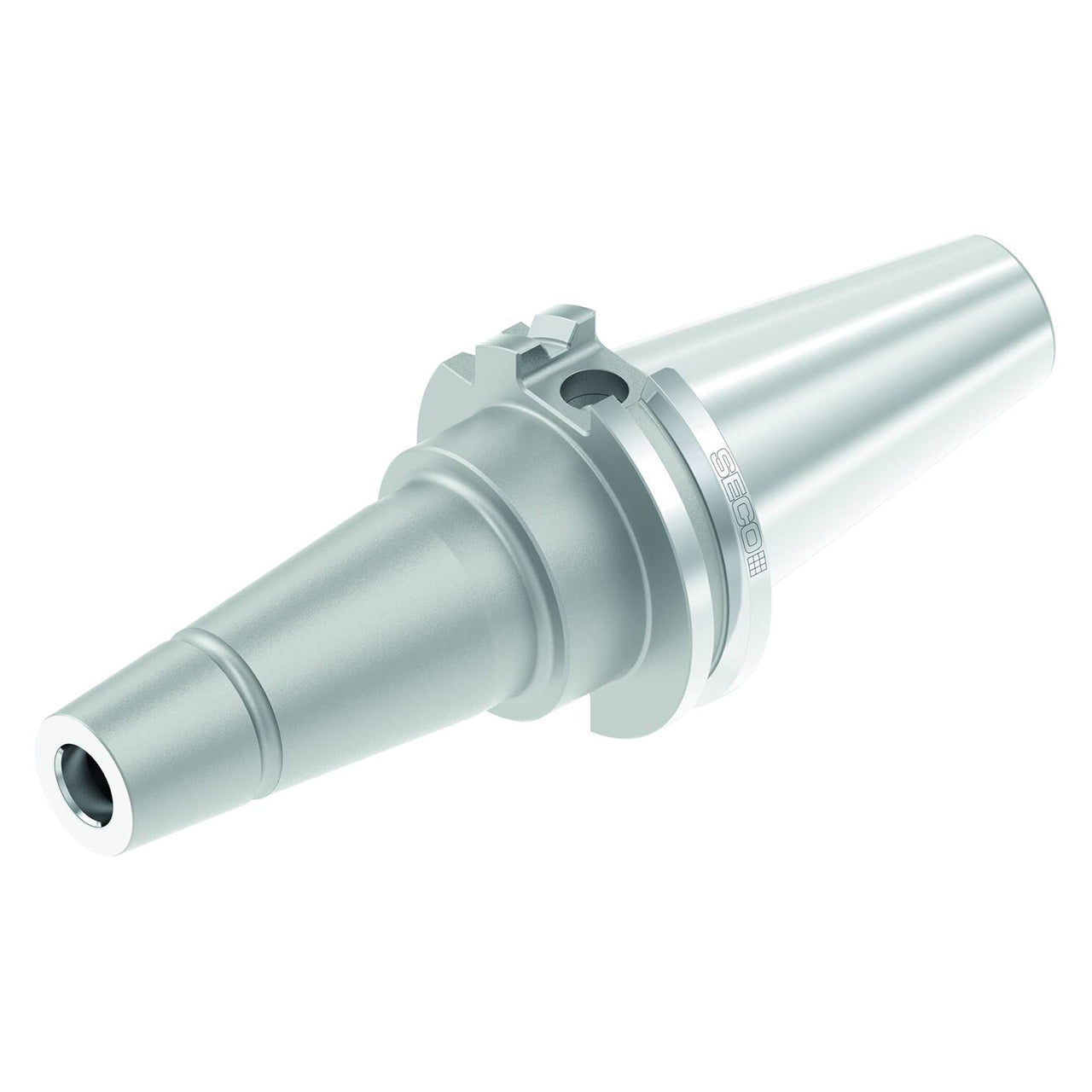

| Product Type | End Mill Holder |
