Product Specifications
| Manufacturer Part Number | 02437226 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 3.543" |
| Functional Length (mm) | 90.00mm |
| Workpiece Side Body Angle (Degree) | 45 Degree |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Cutting Direction | Neutral |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | M |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Insert Shape Code | C |
| Shank Type | Seco-Capto |

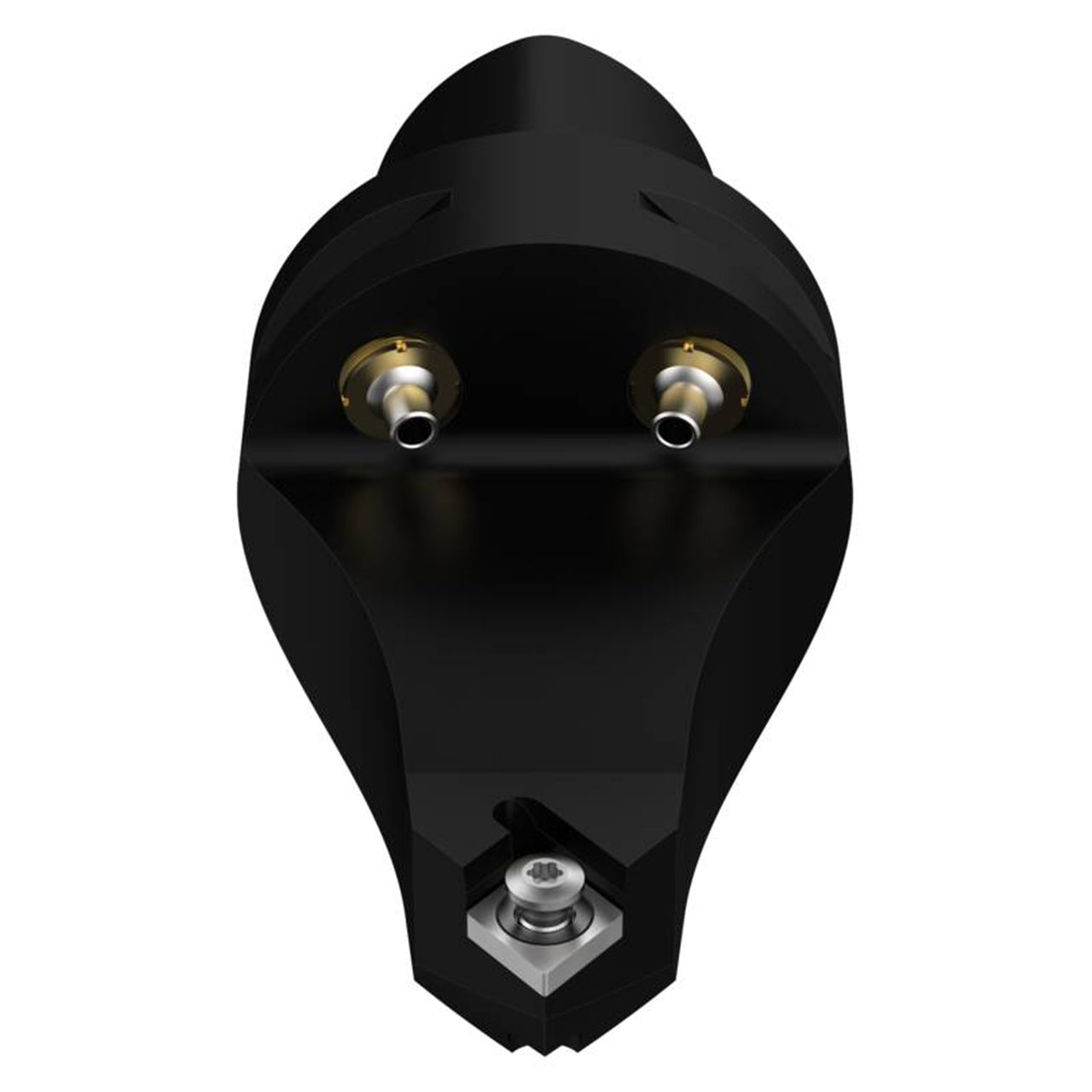

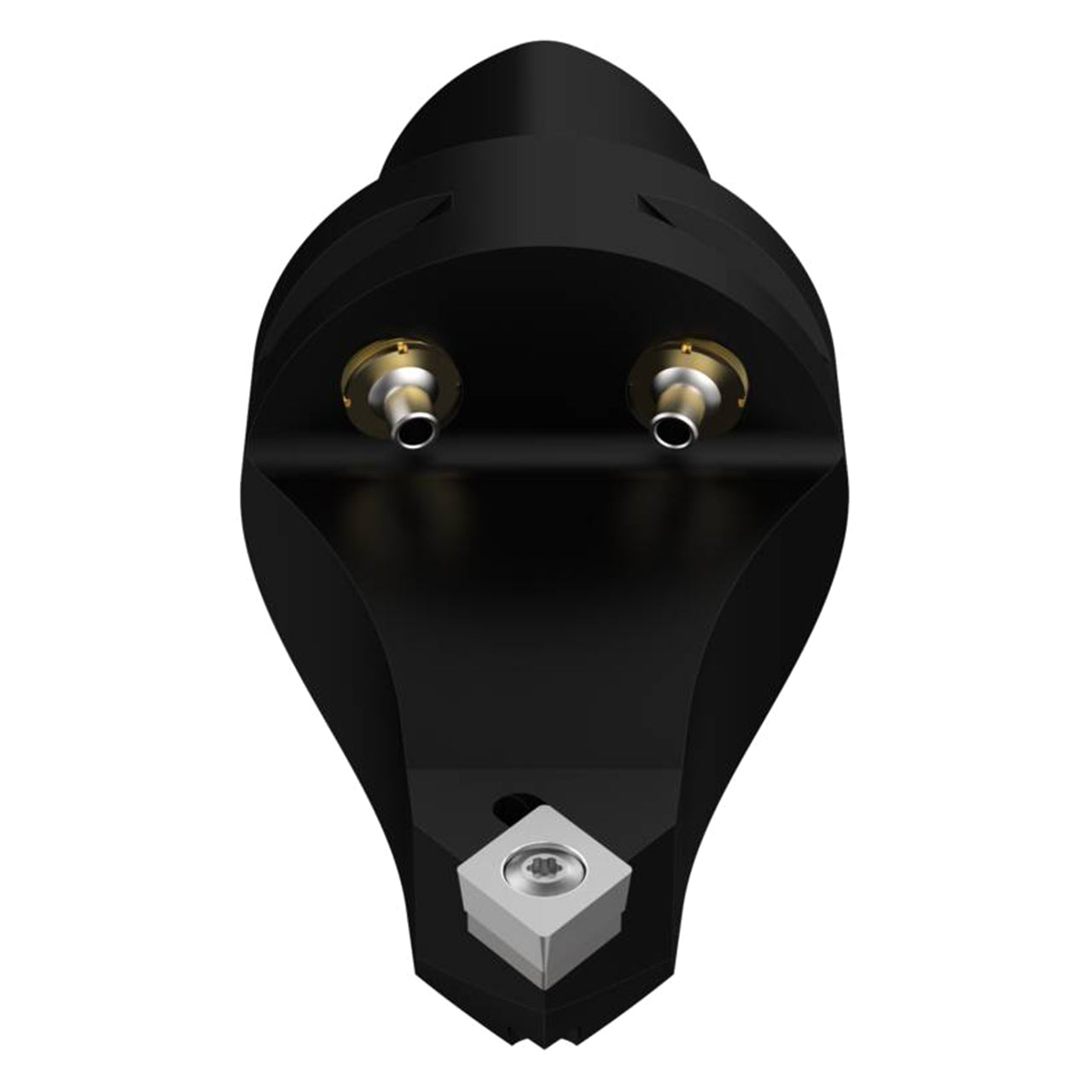

| Product Type | Modular Turning Head |
