Product Specifications
| Manufacturer Part Number | 02429809 |
| Fixing Hole Diameter (Decimal Inch) | 0.150" |
| Fixing Hole Diameter (mm) | 3.81mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.114" |
| Cutting Edge Effective Length (mm) | 2.90mm |
| Corner Chamfer Width (Decimal Inch) | 0.006" |
| Corner Chamfer Width (mm) | 0.16mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Condition Code | S |
| Cutting Edge Count | 3 |
| Insert Size And Shape | TN1604 |
| Insert Included Angle (Degree) | 60 Degree |
| Material | PCBN |

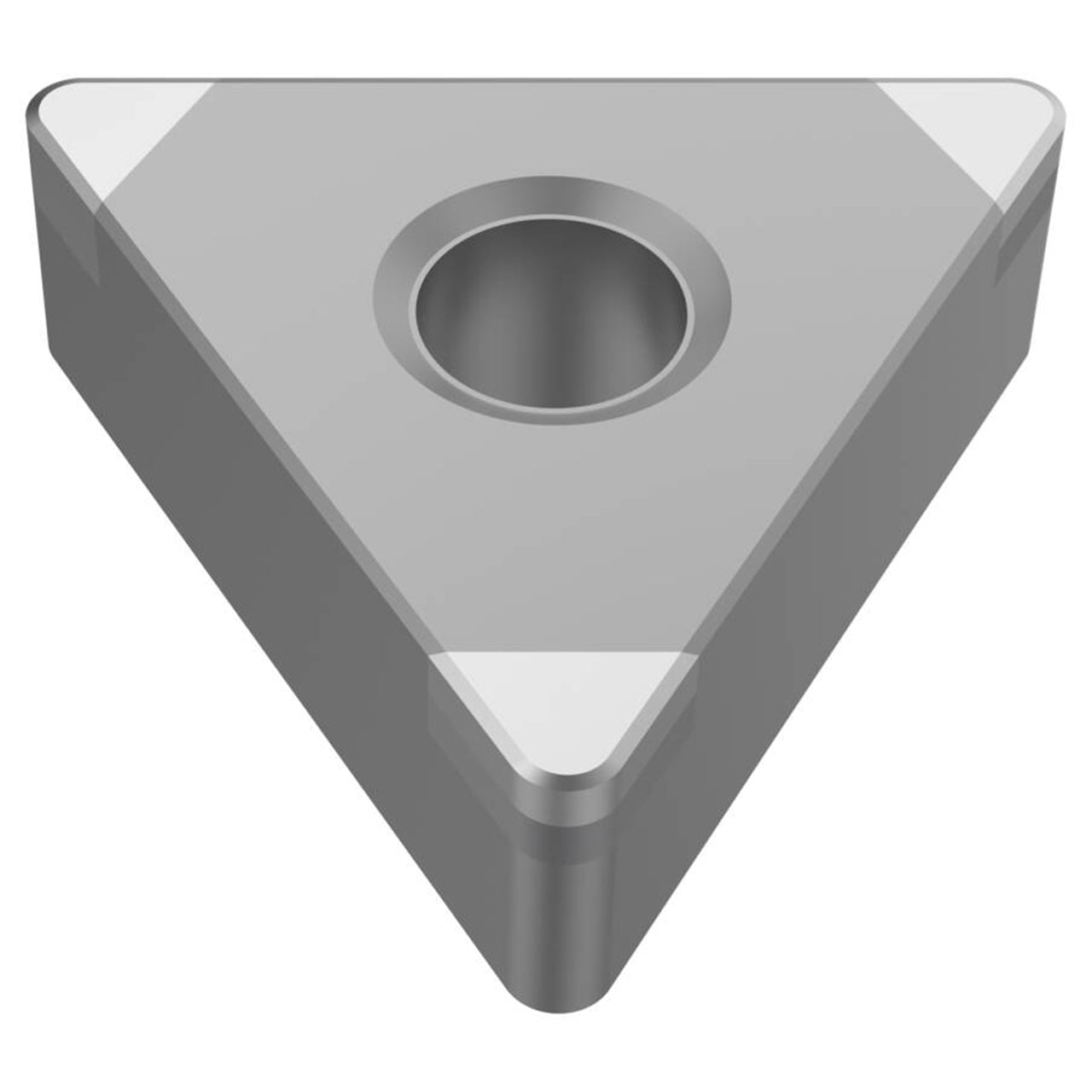

| Product Type | PCBN Tipped Turning Insert |
