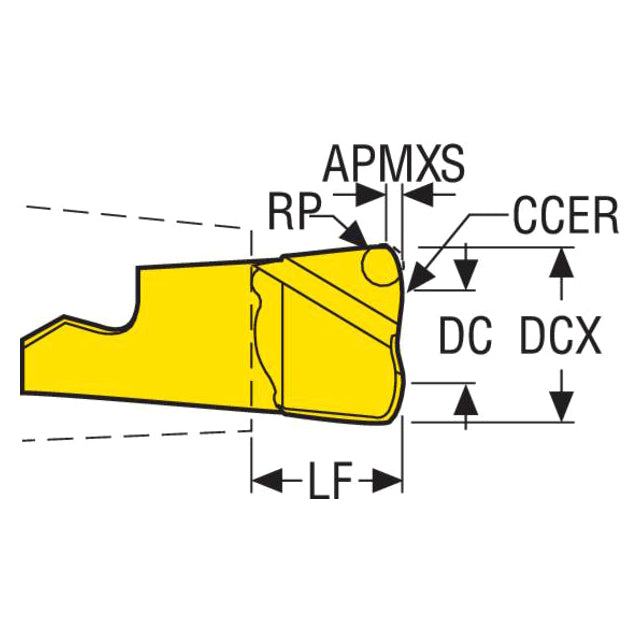

Product Specifications
| Manufacturer Part Number | 02424995 |
| Cutting Diameter (Decimal Inch) | 0.158" |
| Cutting Diameter (mm) | 4.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.315" |
| Maximum Cutting Diameter (mm) | 8.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.575" |
| Maximum Helical Interpolation Hole Diameter (mm) | 14.60mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.386" |
| Minimum Helical Interpolation Hole Diameter (mm) | 9.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.015" |
| Maximum Depth of Cut (mm) | 0.37mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.158" |
| Curved Cutting Edge Radius (mm) | 4.00mm |
| Functional Length (Decimal Inch) | 0.269" |
| Functional Length (mm) | 6.84mm |
| Torque (Nm) | 8Nm |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Radius (Decimal Inch) | 0.024" |
| Corner Radius (mm) | 0.60mm |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Programming Radius (Decimal Inch) | 0.035" |
| Programming Radius (mm) | 0.88mm |
| Peripheral Effective Cutting Edge Count | 2 |
| Peripheral Edges In The Tool | 2 |
| Product Type | Slotting Milling Tip Insert |
