Product Specifications
| Manufacturer Part Number | 02418325 |
| Body Diameter 1 (Decimal Inch) | 0.709" |
| Body Diameter 1 (mm) | 18.00mm |
| Body Diameter 2 (Decimal Inch) | 0.874" |
| Body Diameter 2 (mm) | 22.19mm |
| Connection Bore Diameter (Decimal Inch) | 0.394" |
| Connection Bore Diameter (mm) | 10.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 1.575" |
| Body Length (mm) | 40.00mm |
| Body Length 1 (Decimal Inch) | 1.575" |
| Body Length 1 (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.102" |
| Functional Length (mm) | 28.00mm |
| Minimum Functional Length (Decimal Inch) | 0.650" |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Clamping Length (Decimal Inch) | 1.260" |
| Clamping Length (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Connection Bore Depth (mm) | 42.00mm |
| Body Half Taper Angle Degree) | 3 Degree |

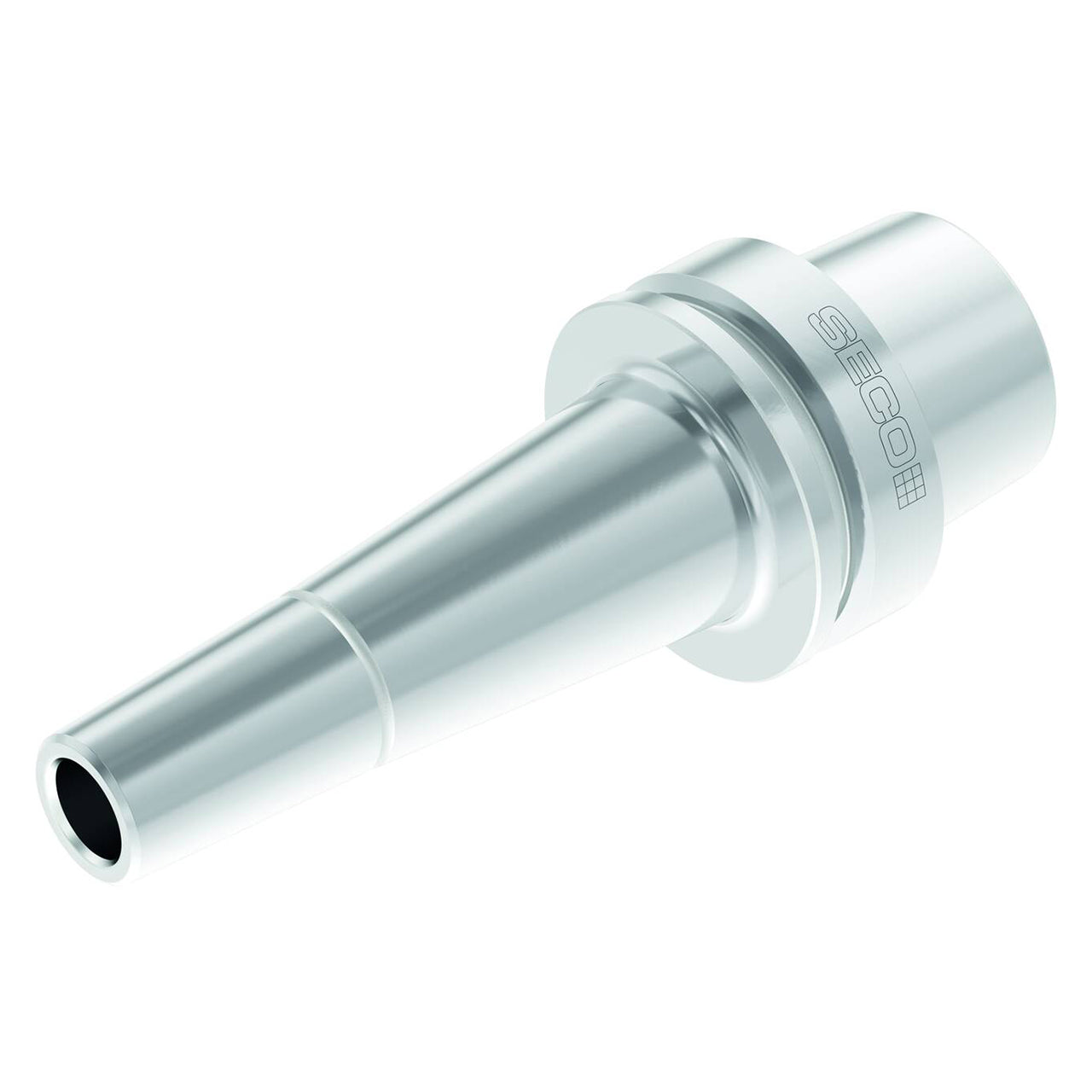

| Product Type | Shrink-Fit Tool Holder |
