Product Specifications
| Manufacturer Part Number | 02418319 |
| Body Diameter 1 (Decimal Inch) | 0.354" |
| Body Diameter 1 (mm) | 9.00mm |
| Body Diameter 2 (Decimal Inch) | 0.519" |
| Body Diameter 2 (mm) | 13.19mm |
| Connection Bore Diameter (Decimal Inch) | 0.118" |
| Connection Bore Diameter (mm) | 3.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Minimum Connection Bore Diameter (mm) | 3.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Maximum Connection Bore Diameter (mm) | 3.00mm |
| Body Length (Decimal Inch) | 1.575" |
| Body Length (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.850" |
| Functional Length (mm) | 47.00mm |
| Minimum Functional Length (Decimal Inch) | 1.791" |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Clamping Length (Decimal Inch) | 0.512" |
| Clamping Length (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 3.150" |
| Overall Length (mm) | 80.00mm |
| Body Half Taper Angle Degree) | 3 Degree |

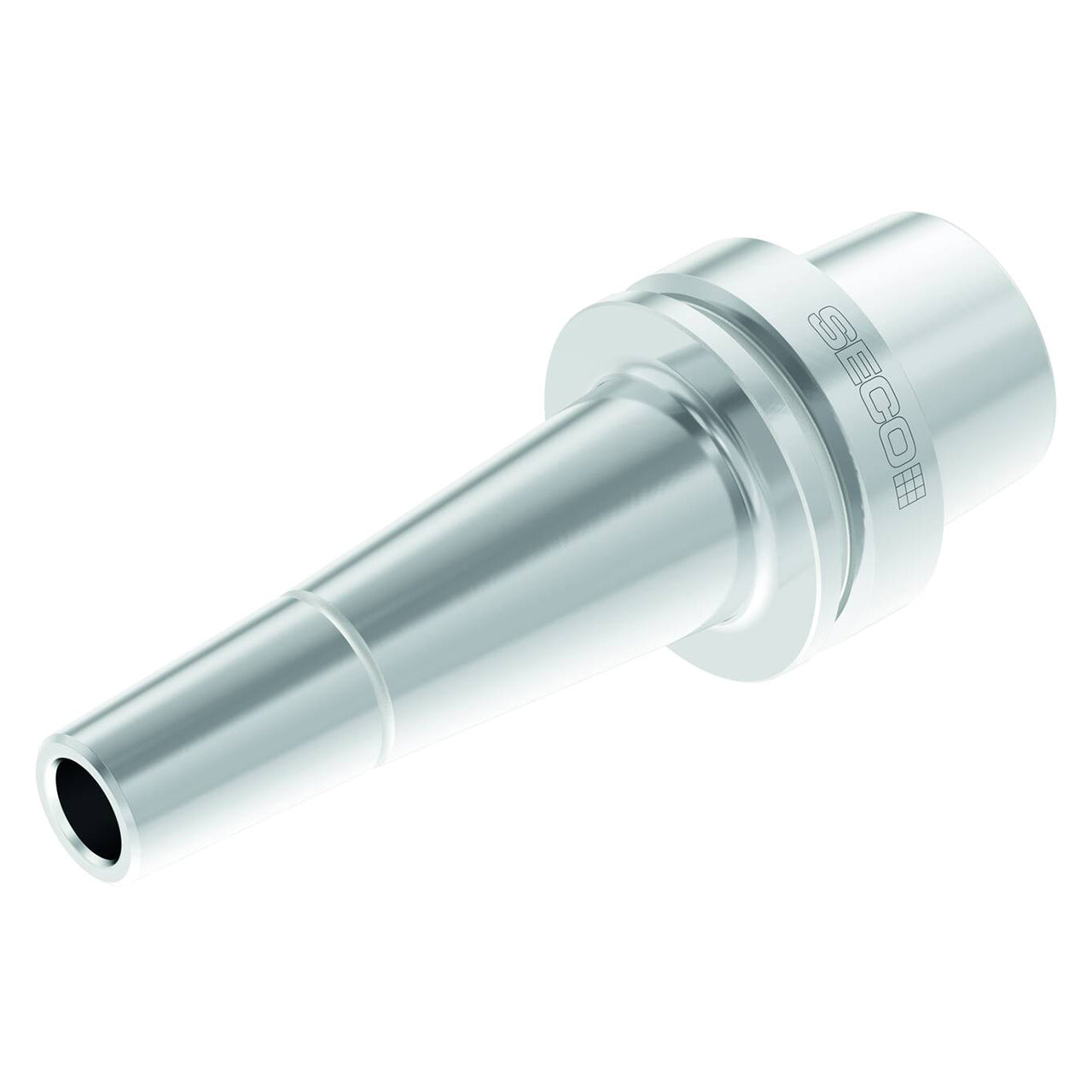

| Product Type | Shrink-Fit Tool Holder |
