Product Specifications
| Manufacturer Part Number | 00096943 |
| Cutting Diameter (Decimal Inch) | 0.764" |
| Cutting Diameter (mm) | 19.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.906" |
| Contact Surface Diameter Machine Side (mm) | 23.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.000" |
| Maximum Cutting Diameter (mm) | 25.40mm |
| Thread Diameter Size | M12 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 48.80mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.764" |
| Minimum Helical Interpolation Hole Diameter (mm) | 44.80mm |
| Functional Length (Decimal Inch) | 1.100" |
| Functional Length (mm) | 27.94mm |
| Overall Length (Decimal Inch) | 1.956" |
| Overall Length (mm) | 49.69mm |
| Maximum Depth of Cut (mm) | 3.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.118" |
| Connection Mounting Torque (Nm) | 60.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Axial Rake Angle (Degree) | 3 Degree |
| Maximum Ramping Angle (Degree) | 6.76 Degree |
| Maximum Rotational Speed (rpm) | 23200 rpm |
| Insert Shape Code | R |
| Shank Type | Combimaster |

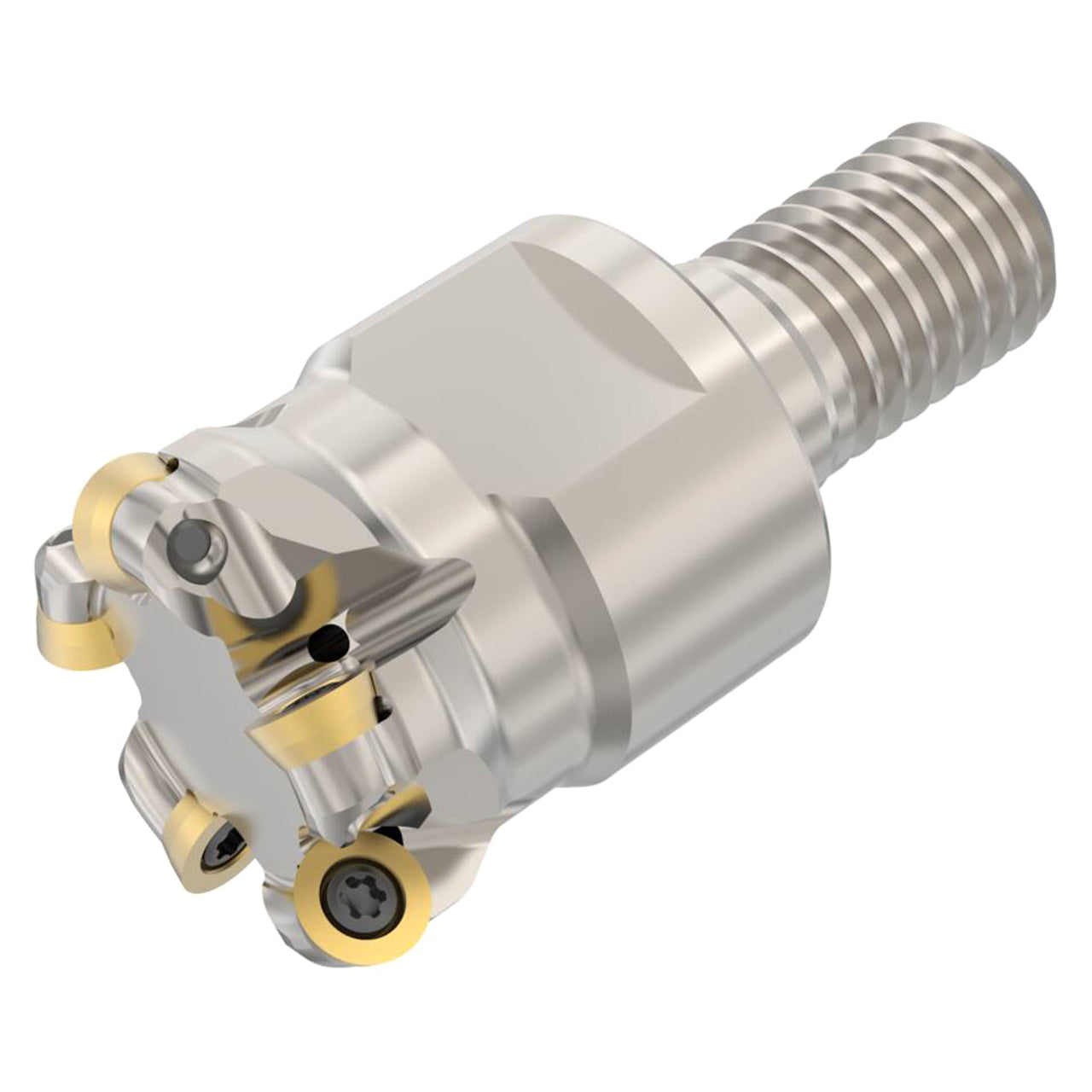

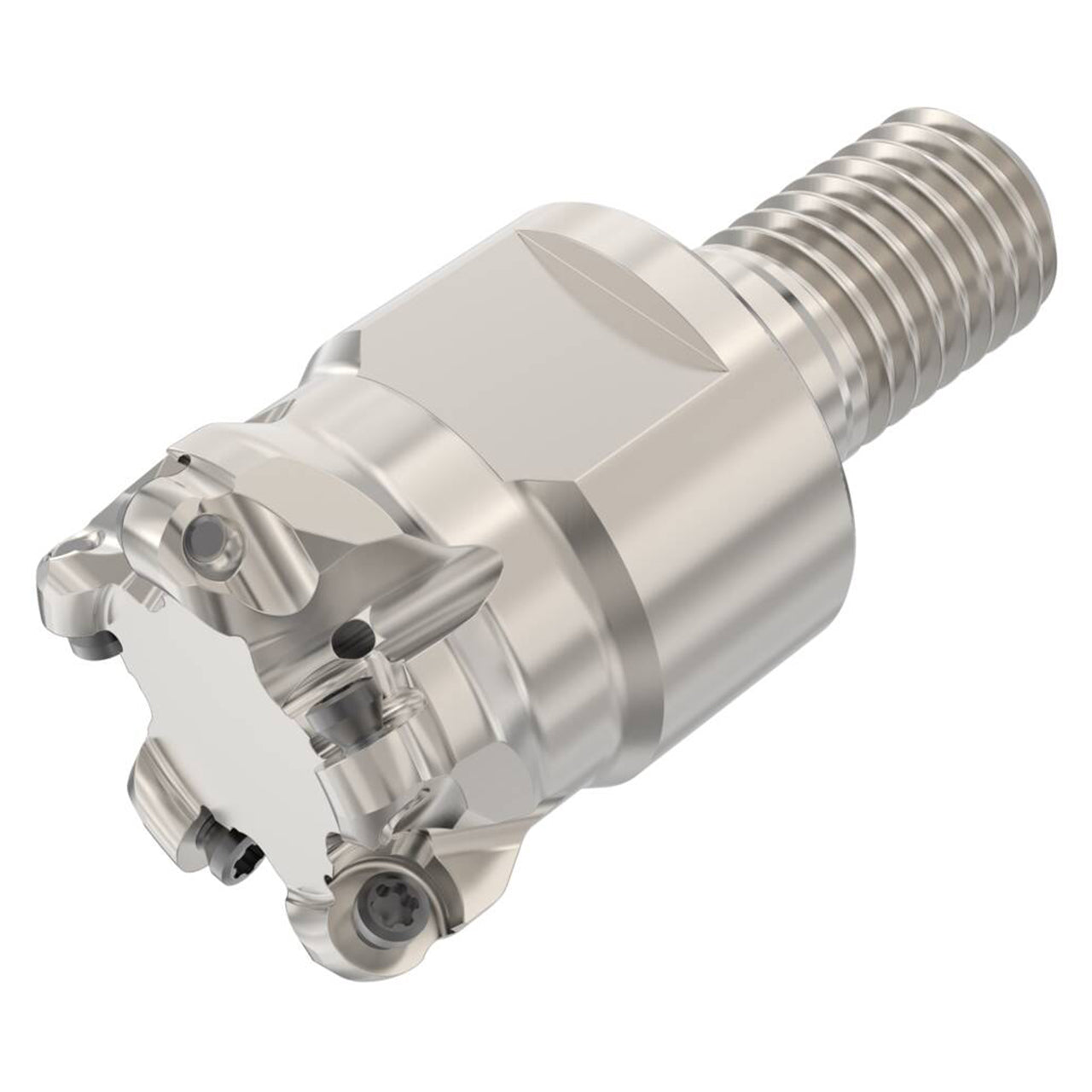

| Product Type | Indexable Copy End Mill |
