Product Specifications
| Manufacturer Part Number | 00093178 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.625" |
| Minimum Cutting Diameter Internal (mm) | 15.87mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.063" |
| Head Length (mm) | 27.00mm |
| Shank Width (Decimal Inch) | 0.465" |
| Shank Width (mm) | 11.80mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.425" |
| Height of Tool Holder Shank (mm) | 10.80mm |
| Functional Width (Decimal Inch) | 0.313" |
| Functional Width (mm) | 7.95mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle (Degree) | -9 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -9 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

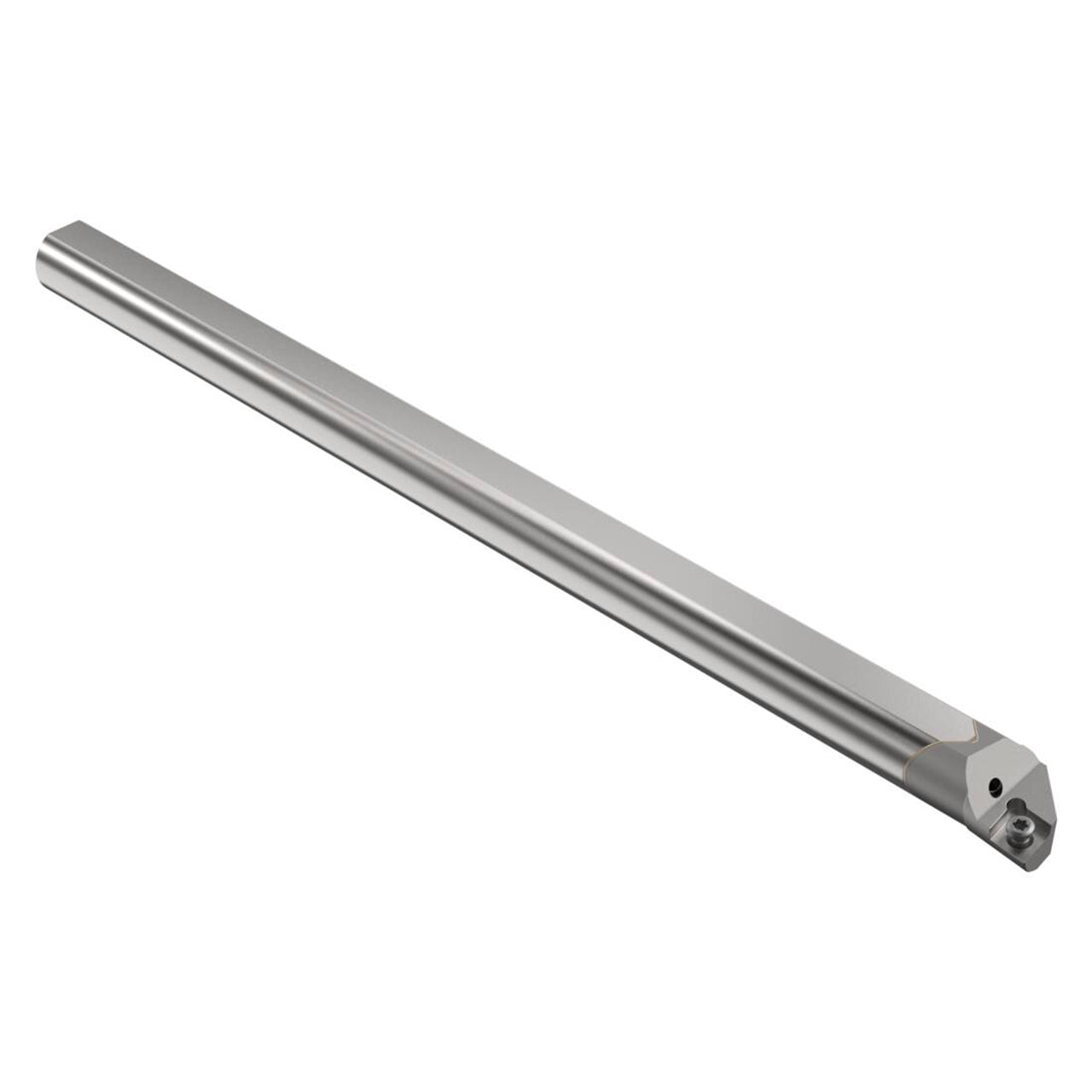

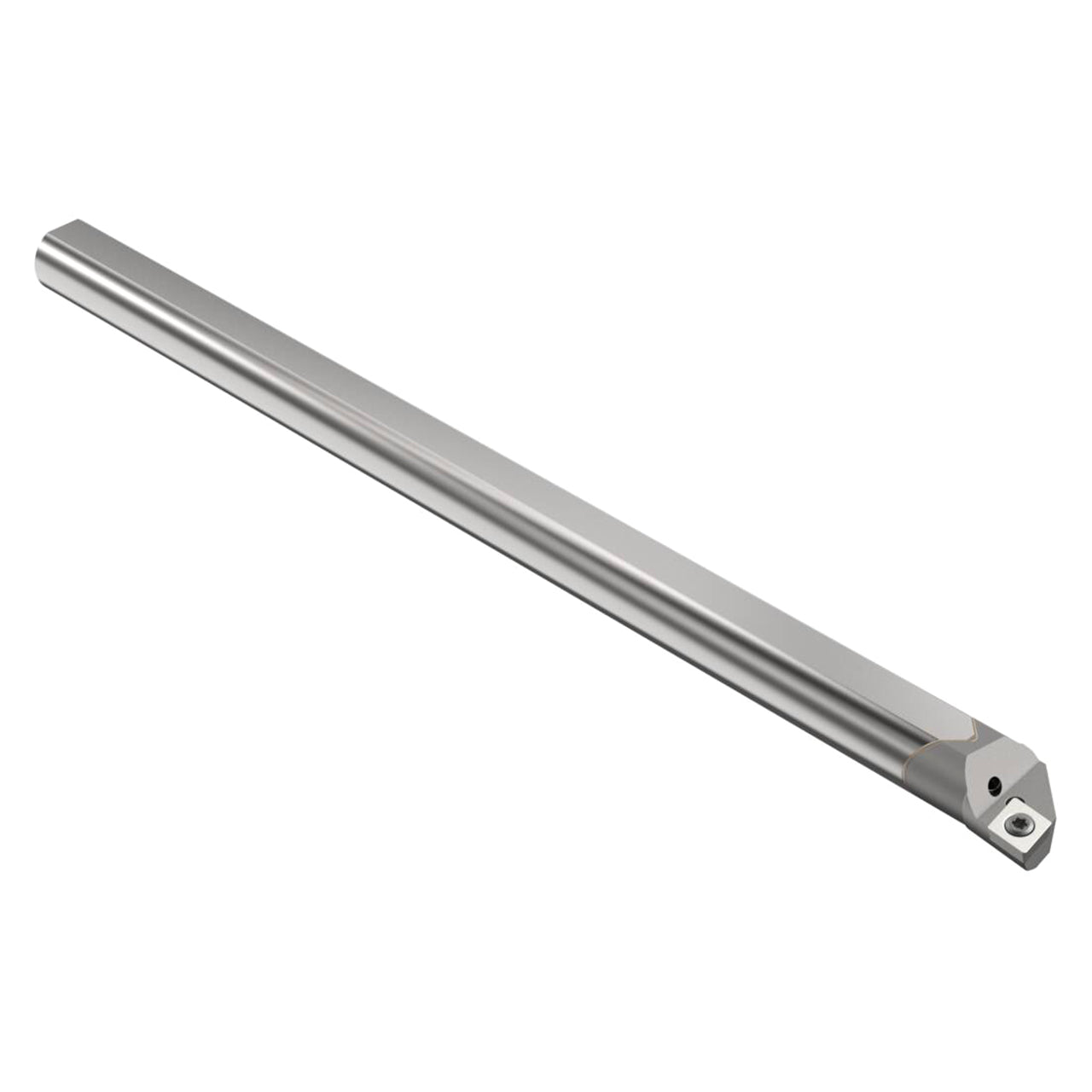

| Product Type | Indexable Boring Bar |
