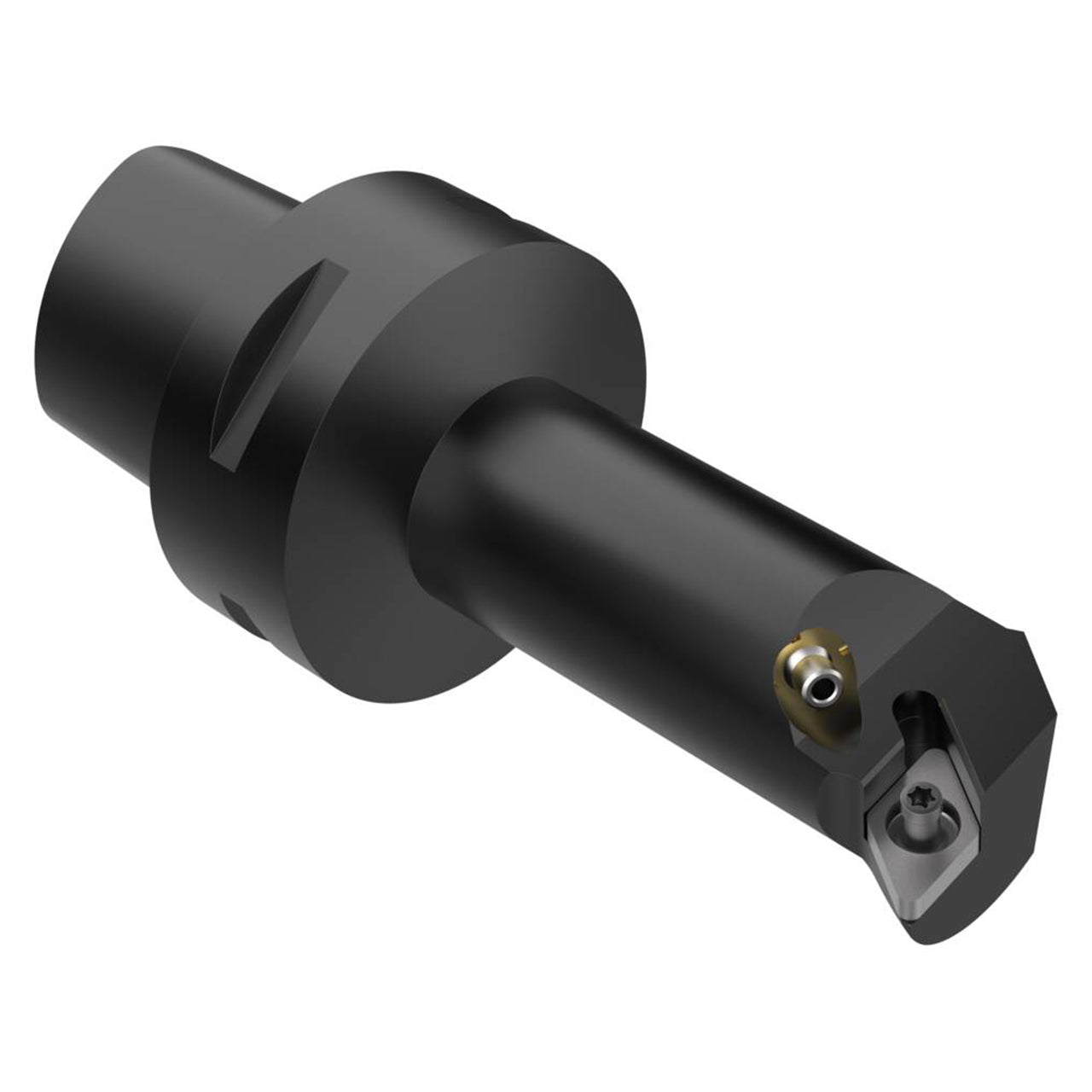

Product Specifications
| Manufacturer Part Number | 00092048 |
| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.260" |
| Minimum Cutting Diameter Internal (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 3.543" |
| Functional Length (mm) | 90.00mm |
| Head Length (Decimal Inch) | 2.638" |
| Head Length (mm) | 67.00mm |
| Usable Length (Decimal Inch) | 2.638" |
| Usable Length (mm) | 67.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.158" |
| Maximum Radial Cutting Depth (mm) | 4.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.158" |
| Maximum Cutting Depth (mm) | 4.00mm |
| Functional Width (Decimal Inch) | 0.669" |
| Functional Width (mm) | 17.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | U |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 93 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 122 Degree |
| Inclination Angle (Degree) | -13 Degree |
| Insert Shape Code | D |
| Shank Type | Seco-Capto |
| Product Type | Modular Turning Head |
