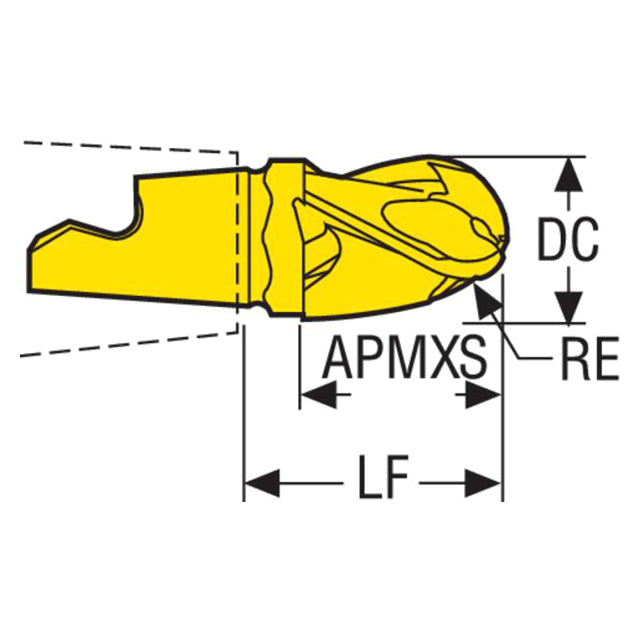

Product Specifications
| Manufacturer Part Number | 00090539 |
| Cutting Diameter (mm) | 6.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 6.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 11.90mm |
| Cutting Edge Effective Length (mm) | 7.46mm |
| Functional Length (mm) | 9.85mm |
| Maximum Depth of Cut (mm) | 7.40mm |
| Corner Radius (mm) | 3.00mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Sphere Angle (Degree) | 180 Degree |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Material | Carbide |
| Product Type | Profile Milling Tip Insert |
