Product Specifications
| Manufacturer Part Number | 00088032 |
| Insert Gauge Length (Decimal Inch) | 0.693" |
| Insert Gauge Length (mm) | 17.60mm |
| Cutting Width (Decimal Inch) | 0.280" |
| Cutting Width (mm) | 7.10mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.197" |
| Maximum Cutting Depth Insert (mm) | 5.00mm |
| Spot Chamfer (Decimal Inch) | 0.181" |
| Spot Chamfer (mm) | 4.60mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (Decimal Inch) | 0.177" |
| Insert Thickness (mm) | 4.50mm |
| Cutting Edge Count | 1 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Hand | Neutral |
| Insert Size And Shape | LC1606 |
| Material | Carbide |

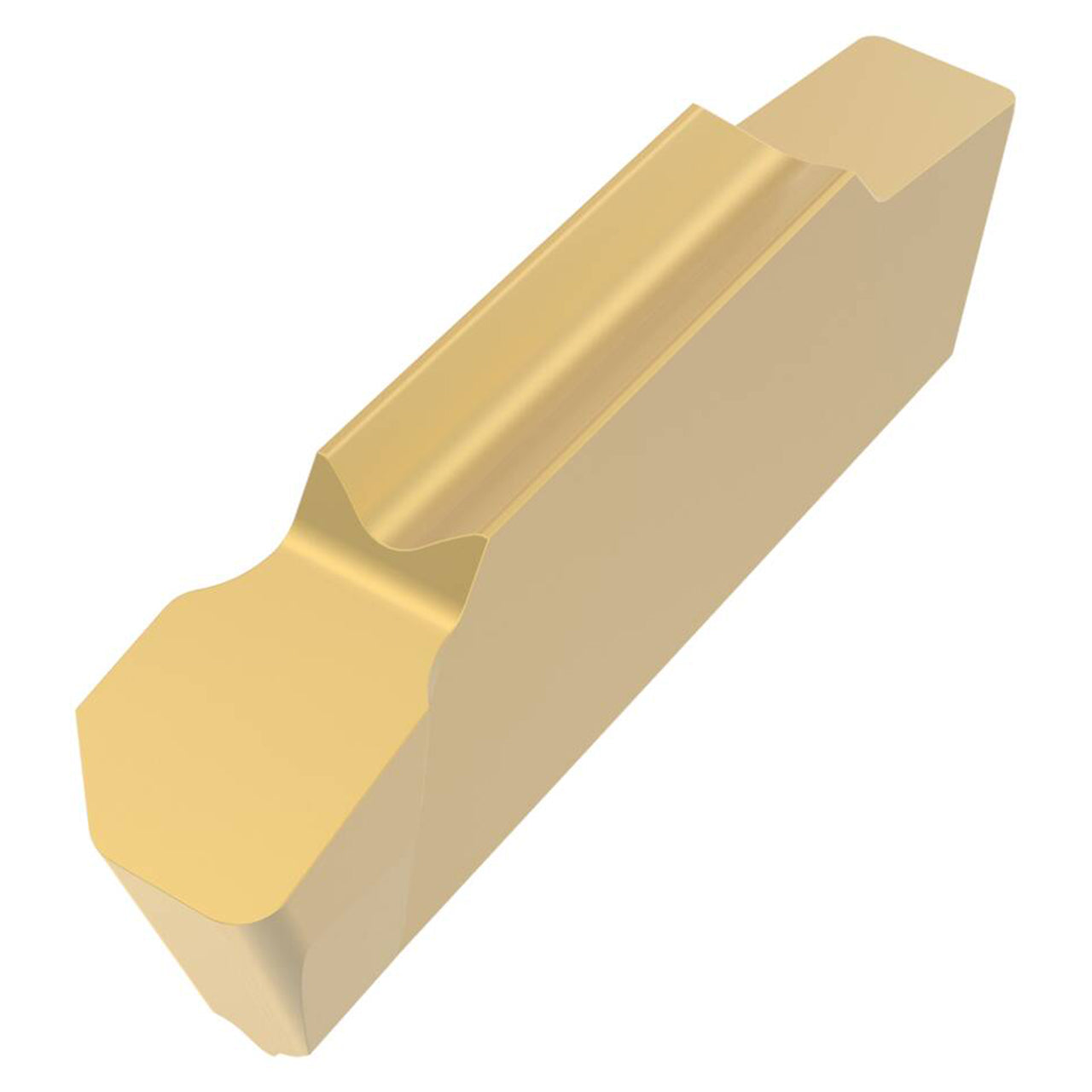

| Product Type | Multi-Directional Turning Insert |
