Product Specifications
| Manufacturer Part Number | 00087631 |
| Functional Length (Decimal Inch) | 4.500" |
| Functional Length (mm) | 114.30mm |
| Head Length (Decimal Inch) | 1.221" |
| Head Length (mm) | 31.00mm |
| Shank Width (Decimal Inch) | 0.750" |
| Shank Width (mm) | 19.05mm |
| Maximum Cutting Depth (Decimal Inch) | 0.472" |
| Maximum Cutting Depth (mm) | 12.00mm |
| Cutting Width (Decimal Inch) | 0.158" |
| Cutting Width (mm) | 4.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.750" |
| Height of Tool Holder Shank (mm) | 19.05mm |
| Functional Width (Decimal Inch) | 1.000" |
| Functional Width (mm) | 25.40mm |
| Cutting Direction | Left Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Shank Type | Square shank |

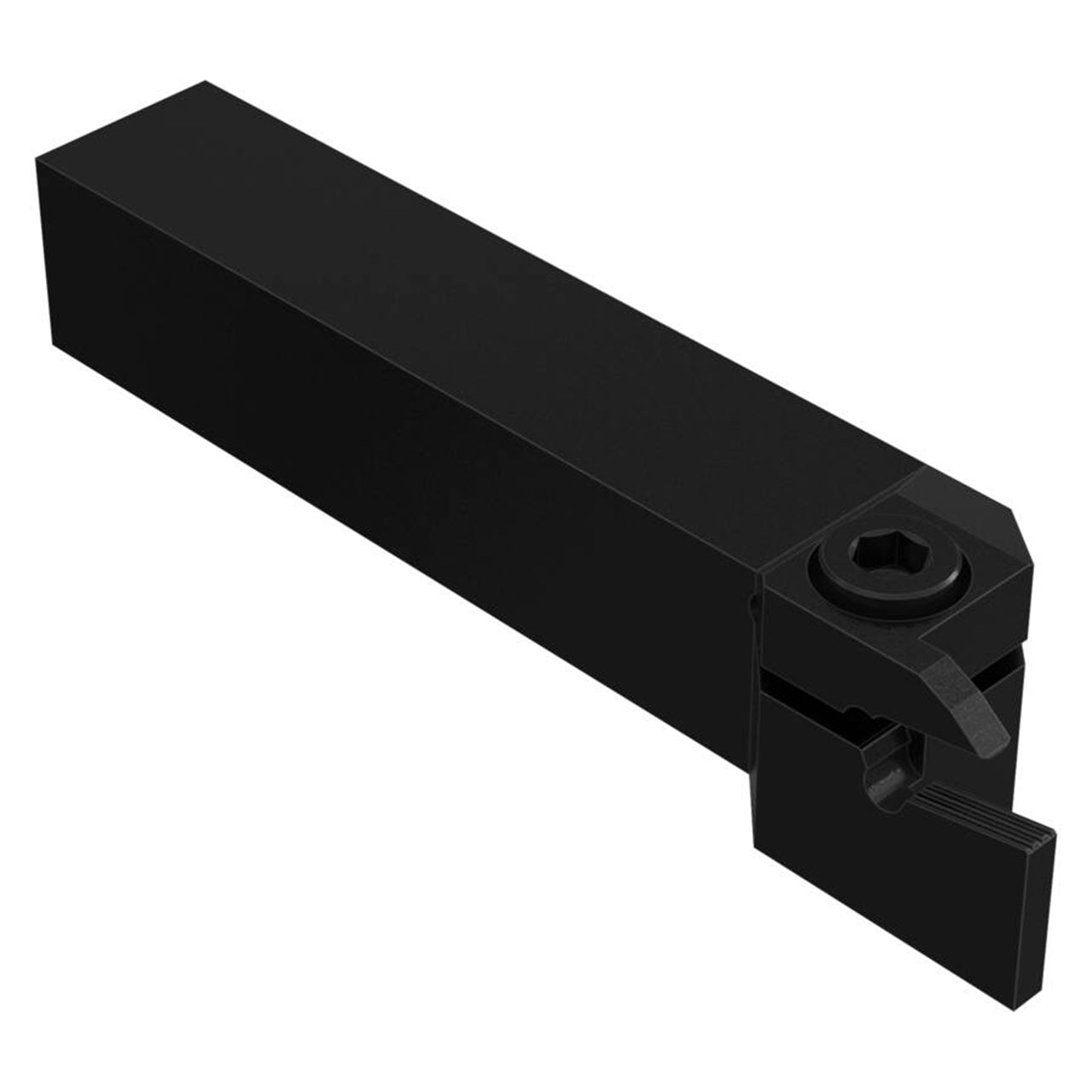

| Product Type | Indexable Grooving Toolholder |
