Product Specifications
| Manufacturer Part Number | 00087575 |

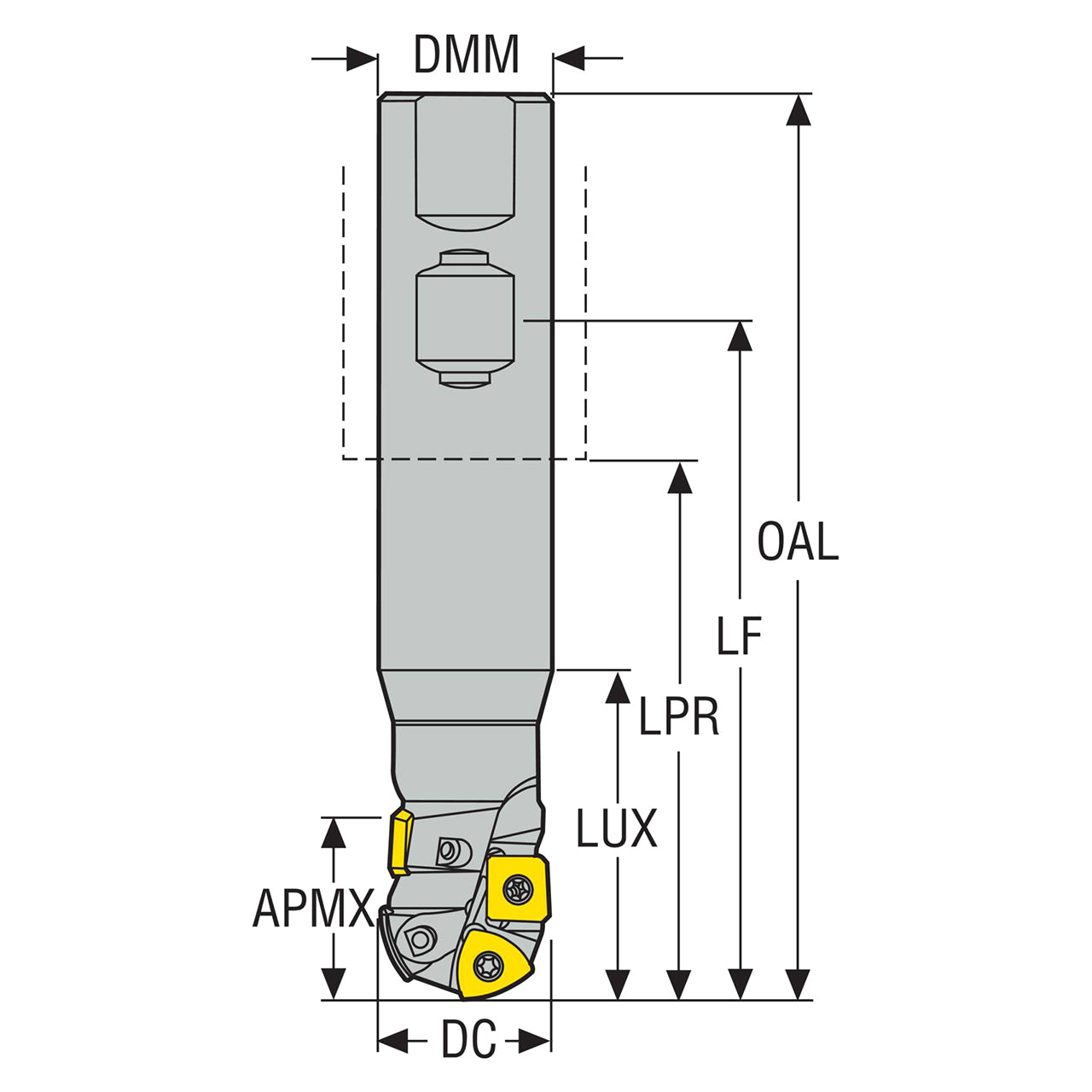

| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 3.889" |
| Functional Length (mm) | 98.77mm |
| Protruding Length (Decimal Inch) | 2.835" |
| Protruding Length (mm) | 72.00mm |
| Shank Length (Decimal Inch) | 2.835" |
| Shank Length (mm) | 72.00mm |
| Overall Length (Decimal Inch) | 5.032" |
| Overall Length (mm) | 127.80mm |
| Number of Flute | 2 |
| Maximum Depth of Cut (Decimal Inch) | 1.063" |
| Maximum Depth of Cut (mm) | 27.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 21700 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | 218.19-125 / SPMX0903AP |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Toolox 44HRc |
| Shank Type | Weldon |
| Insert Shape Code | 218.19 / S |

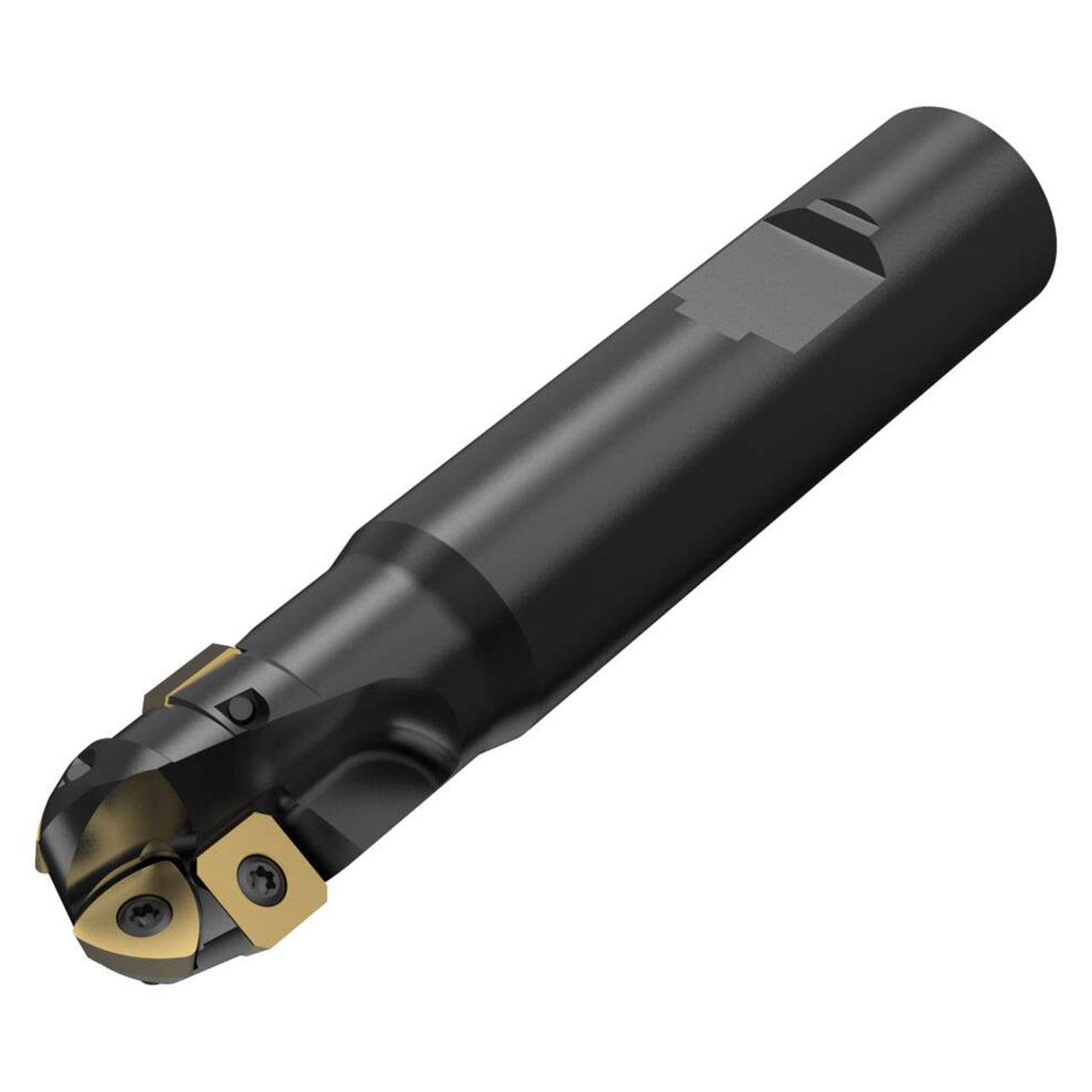

| Product Type | Indexable Ball Nose End Mill |
