Product Specifications
| Manufacturer Part Number | 00087568 |
| Cutting Diameter (Decimal Inch) | 0.390" |
| Cutting Diameter (mm) | 9.91mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Diameter (Decimal Inch) | 0.310" |
| Body Diameter (mm) | 7.87mm |
| Shank Length (Decimal Inch) | 3.610" |
| Shank Length (mm) | 91.69mm |
| Overall Length (Decimal Inch) | 4.140" |
| Overall Length (mm) | 105.16mm |
| Functional Length (Decimal Inch) | 0.530" |
| Functional Length (mm) | 13.46mm |
| Maximum Depth of Cut (Decimal Inch) | 0.510" |
| Maximum Depth of Cut (mm) | 12.95mm |
| Shank Type | Weldon |
| Rake Radial Angle (Degree) | -15 Degree |
| Rake Orthogonal Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 1 |

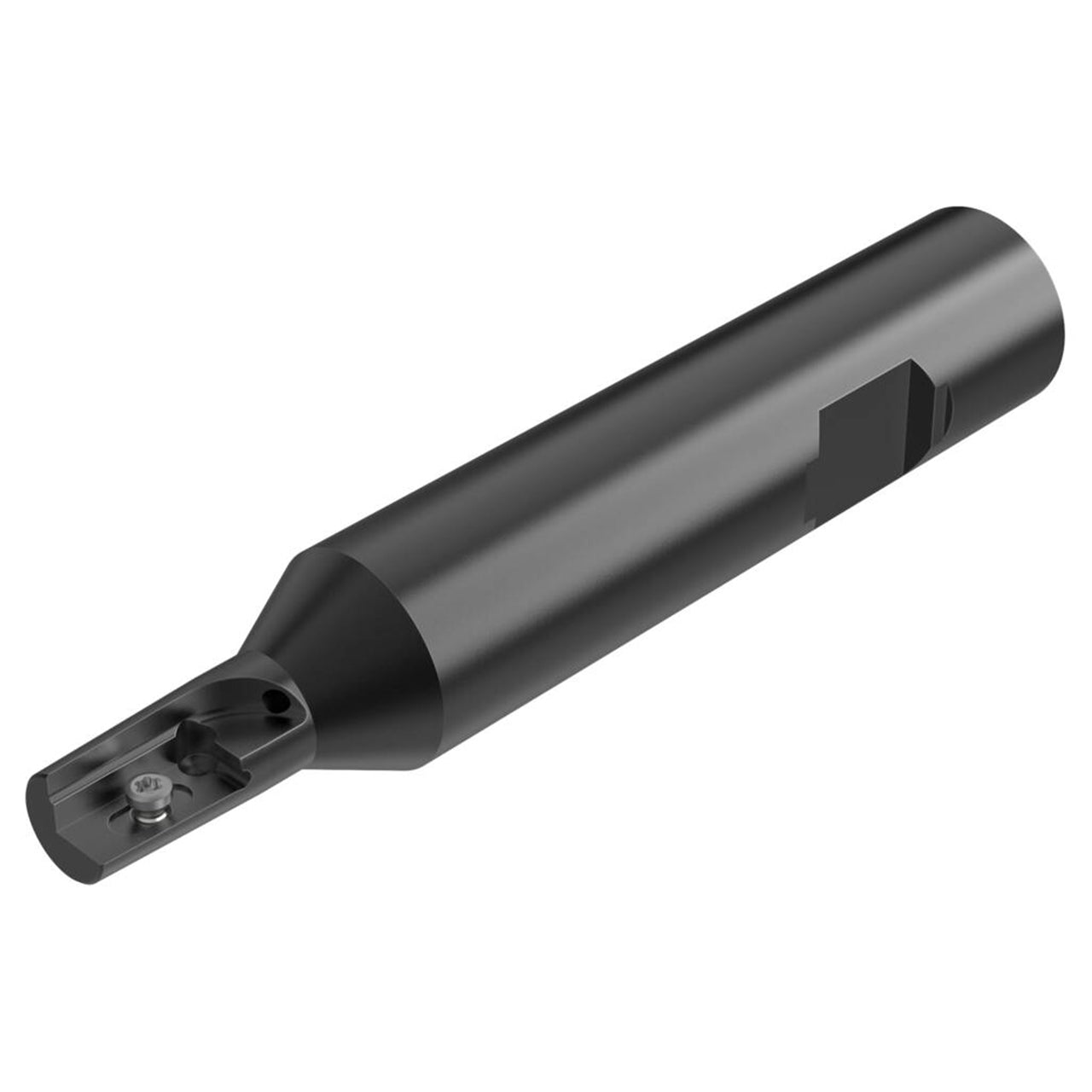

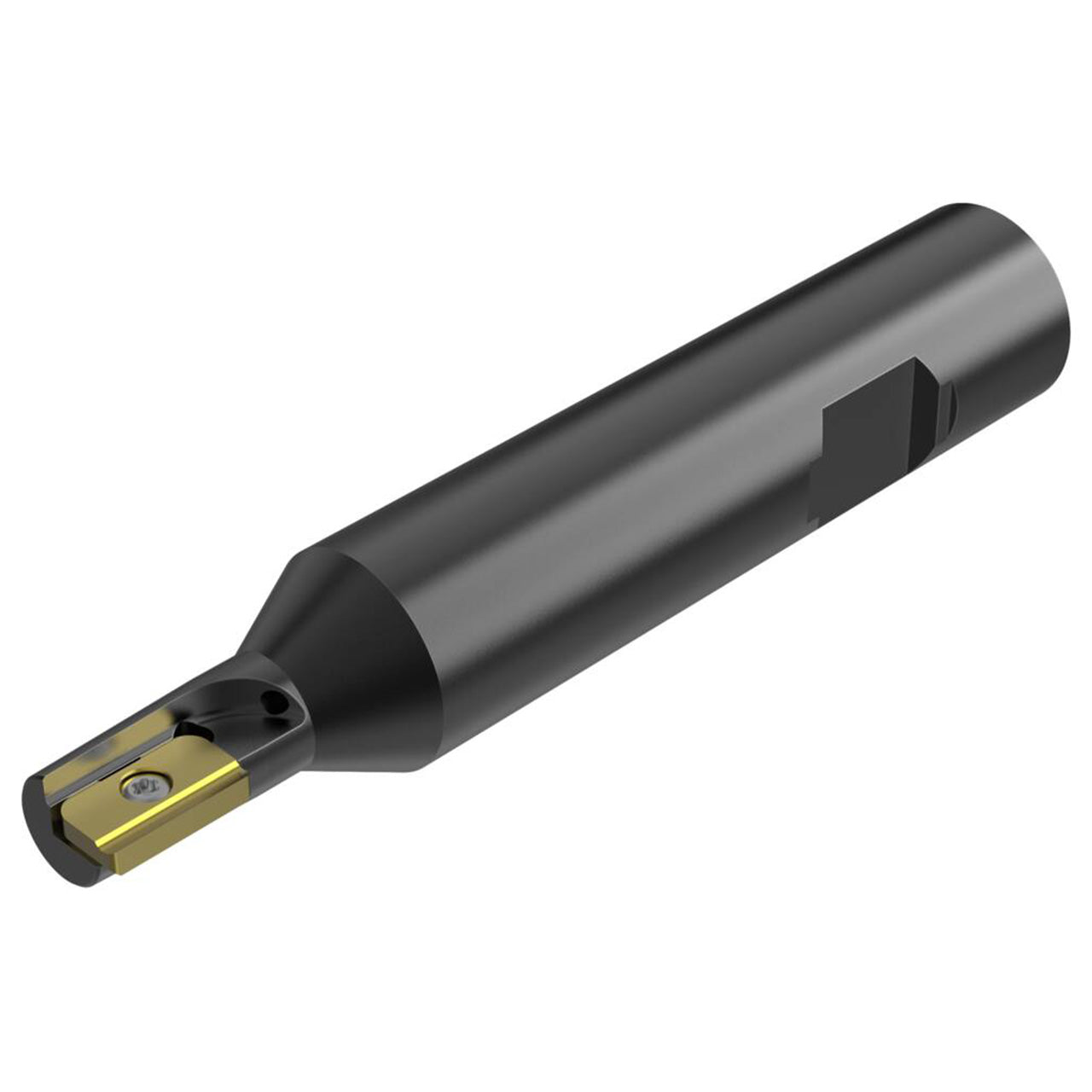

| Product Type | Indexable Thread Mill |
