Product Specifications
| Manufacturer Part Number | 00086925 |
| Body Diameter (Decimal Inch) | 1.260" |
| Body Diameter (mm) | 32.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.709" |
| Connection Bore Diameter (mm) | 18.00mm |
| Body Length (Decimal Inch) | 1.024" |
| Body Length (mm) | 26.00mm |
| Functional Length (Decimal Inch) | 2.165" |
| Functional Length (mm) | 55.00mm |
| Overall Length (Decimal Inch) | 4.134" |
| Overall Length (mm) | 105.00mm |
| Data Chip Provision | 1 |

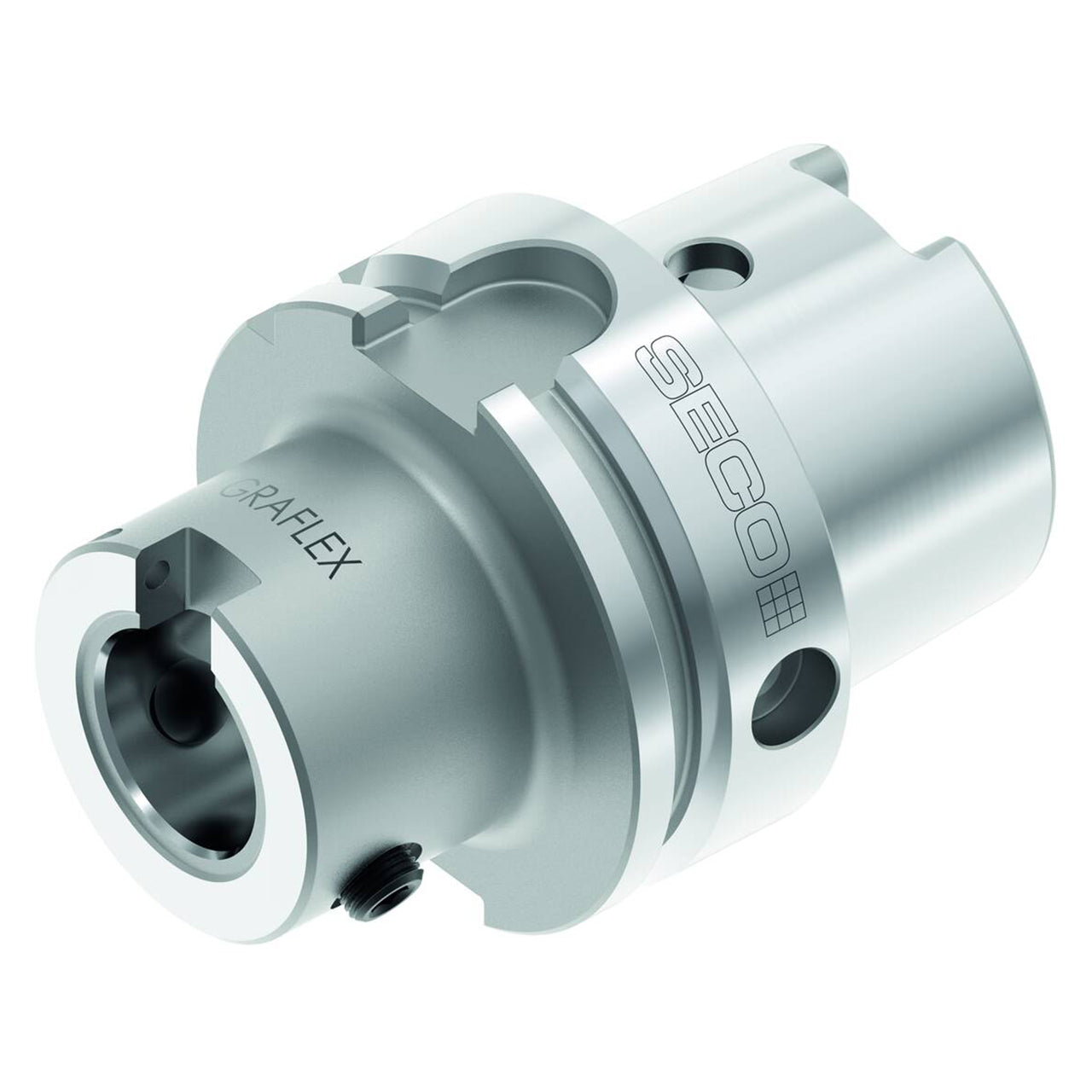

| Product Type | Modular Tool Holding System Adapter |
