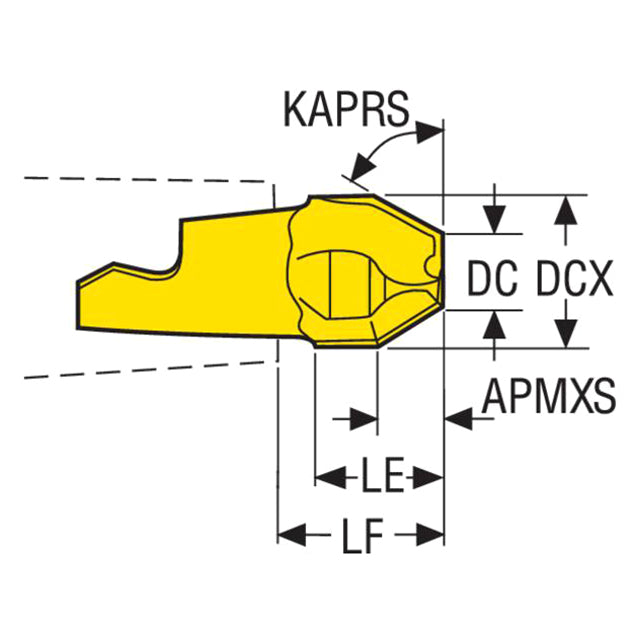

Product Specifications
| Manufacturer Part Number | 00083754 |
| Cutting Diameter (Decimal Inch) | 0.124" |
| Cutting Diameter (mm) | 3.14mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.236" |
| Maximum Cutting Diameter (mm) | 6.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.181" |
| Cutting Edge Effective Length (mm) | 4.60mm |
| Functional Length (Decimal Inch) | 0.226" |
| Functional Length (mm) | 5.75mm |
| Point Length (Decimal Inch) | 0.095" |
| Point Length (mm) | 2.40mm |
| Corner Chamfer Width (Decimal Inch) | 0.055" |
| Corner Chamfer Width (mm) | 1.40mm |
| Maximum Depth of Cut (Decimal Inch) | 0.095" |
| Maximum Depth of Cut (mm) | 2.40mm |
| Corner Radius (Decimal Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 60 Degree |
| Corner Chamfer Angle (Degree) | 60 Degree |
| Rake Radial Angle (Degree) | 16 Degree |
| Material | Carbide |
| Product Type | Chamfer Milling Tip Insert |
