Product Specifications
| Manufacturer Part Number | 00078656 |
| Body Diameter (Decimal Inch) | 2.480" |
| Body Diameter (mm) | 63.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Minimum Connection Bore Diameter (mm) | 31.75mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Connection Bore Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 3.350" |
| Body Length (mm) | 85.09mm |
| Functional Length (Decimal Inch) | 2.400" |
| Functional Length (mm) | 60.96mm |
| Minimum Functional Length (Decimal Inch) | 2.400 |
| Functional Length Secondary (Decimal Inch) | 2.402" |
| Functional Length Secondary (mm) | 61.00mm |
| Protruding Length (Decimal Inch) | 3.350" |
| Protruding Length (mm) | 85.09mm |
| Clamping Length (Decimal Inch) | 2.520" |
| Clamping Length (mm) | 64.01mm |
| Overall Length (Decimal Inch) | 4.846" |
| Overall Length (mm) | 123.09mm |

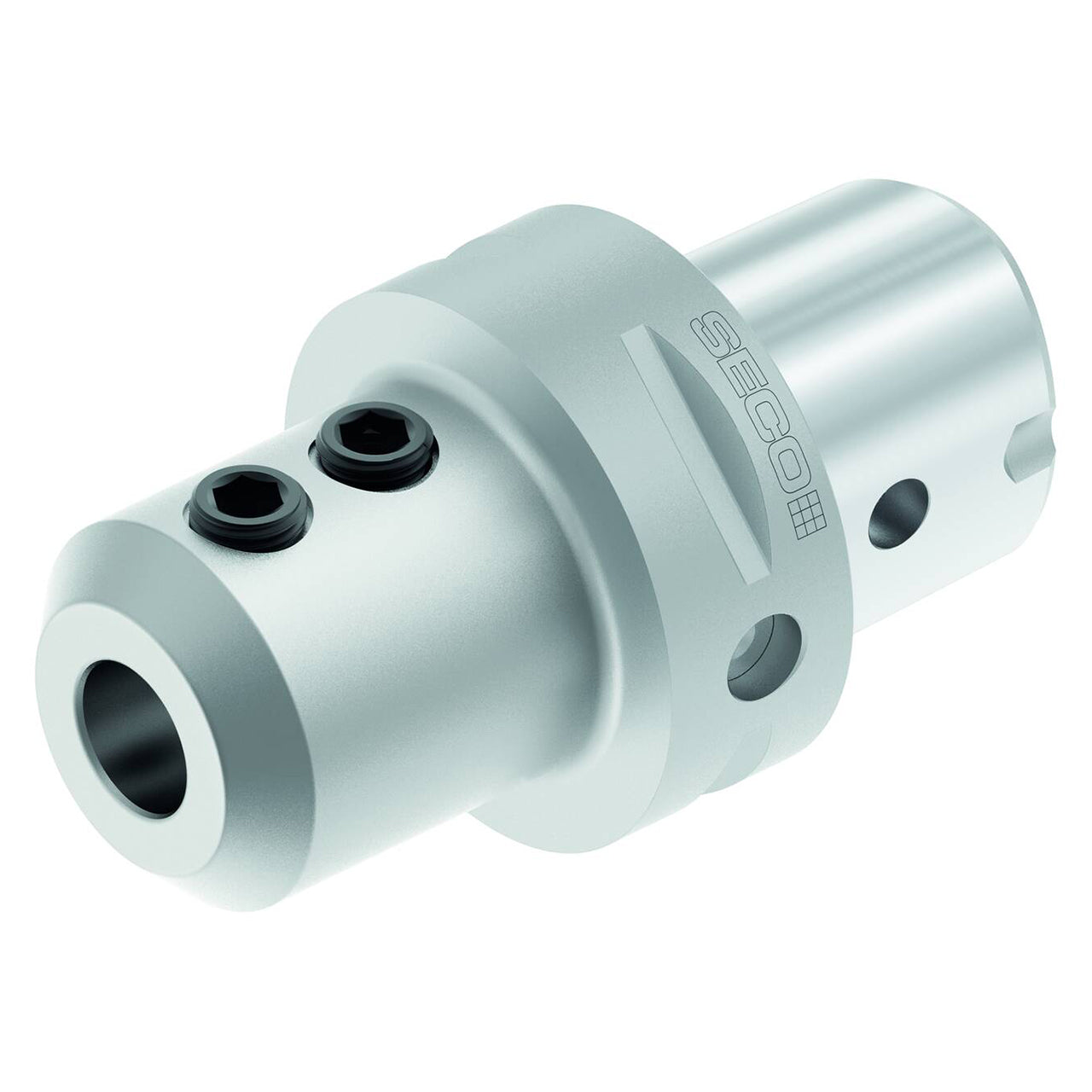

| Product Type | End Mill Holder |
