Product Specifications
| Manufacturer Part Number | 00078614 |
| Body Diameter (Decimal Inch) | 1.248" |
| Body Diameter (mm) | 31.70mm |
| Connection Bore Diameter (Decimal Inch) | 0.500" |
| Connection Bore Diameter (mm) | 12.70mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Connection Bore Diameter (mm) | 12.70mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Body Length (Decimal Inch) | 1.260" |
| Body Length (mm) | 32.00mm |
| Functional Length (Decimal Inch) | 1.494" |
| Functional Length (mm) | 37.95mm |
| Minimum Functional Length (Decimal Inch) | 1.480" |
| Functional Length Secondary (Decimal Inch) | 1.476" |
| Functional Length Secondary (mm) | 37.50mm |
| Protruding Length (Decimal Inch) | 2.360" |
| Protruding Length (mm) | 59.94mm |
| Clamping Length (Decimal Inch) | 1.772" |
| Clamping Length (mm) | 45.01mm |
| Overall Length (Decimal Inch) | 3.856" |
| Overall Length (mm) | 97.94mm |
| Body Half Taper Angle Degree) | 70 Degree |

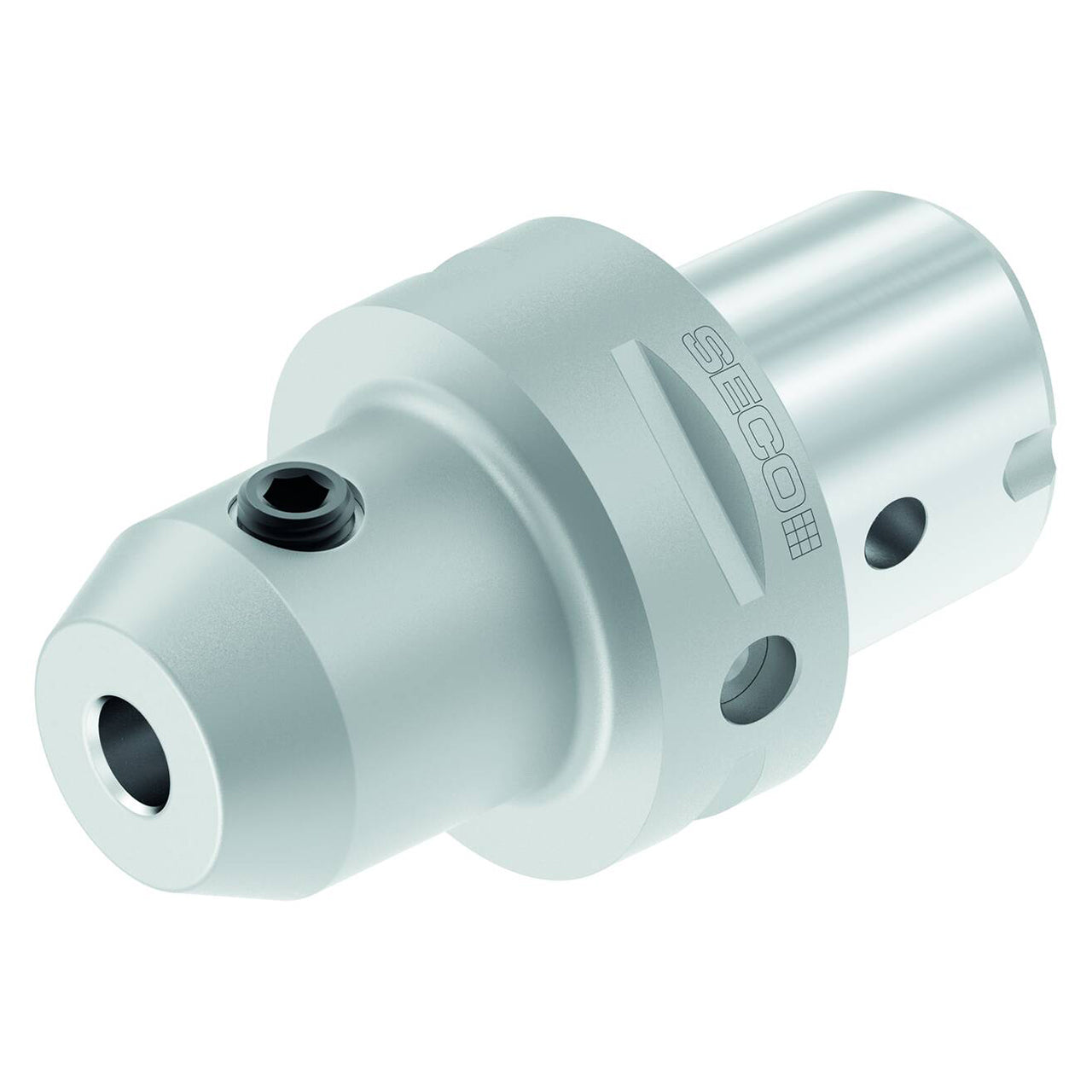

| Product Type | End Mill Holder |
