Product Specifications
| Manufacturer Part Number | 00074293 |
| Cutting Diameter (Decimal Inch) | 0.509" |
| Cutting Diameter (mm) | 12.93mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Diameter (Decimal Inch) | 0.310" |
| Body Diameter (mm) | 7.87mm |
| Shank Length (Decimal Inch) | 2.997" |
| Shank Length (mm) | 76.13mm |
| Overall Length (Decimal Inch) | 4.134" |
| Overall Length (mm) | 105.00mm |
| Functional Length (Decimal Inch) | 0.746" |
| Functional Length (mm) | 18.95mm |
| Maximum Depth of Cut (Decimal Inch) | 0.512" |
| Maximum Depth of Cut (mm) | 13.00mm |
| Shank Type | Weldon |
| Rake Radial Angle (Degree) | -15 Degree |
| Rake Orthogonal Angle (Degree) | -15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 1 |

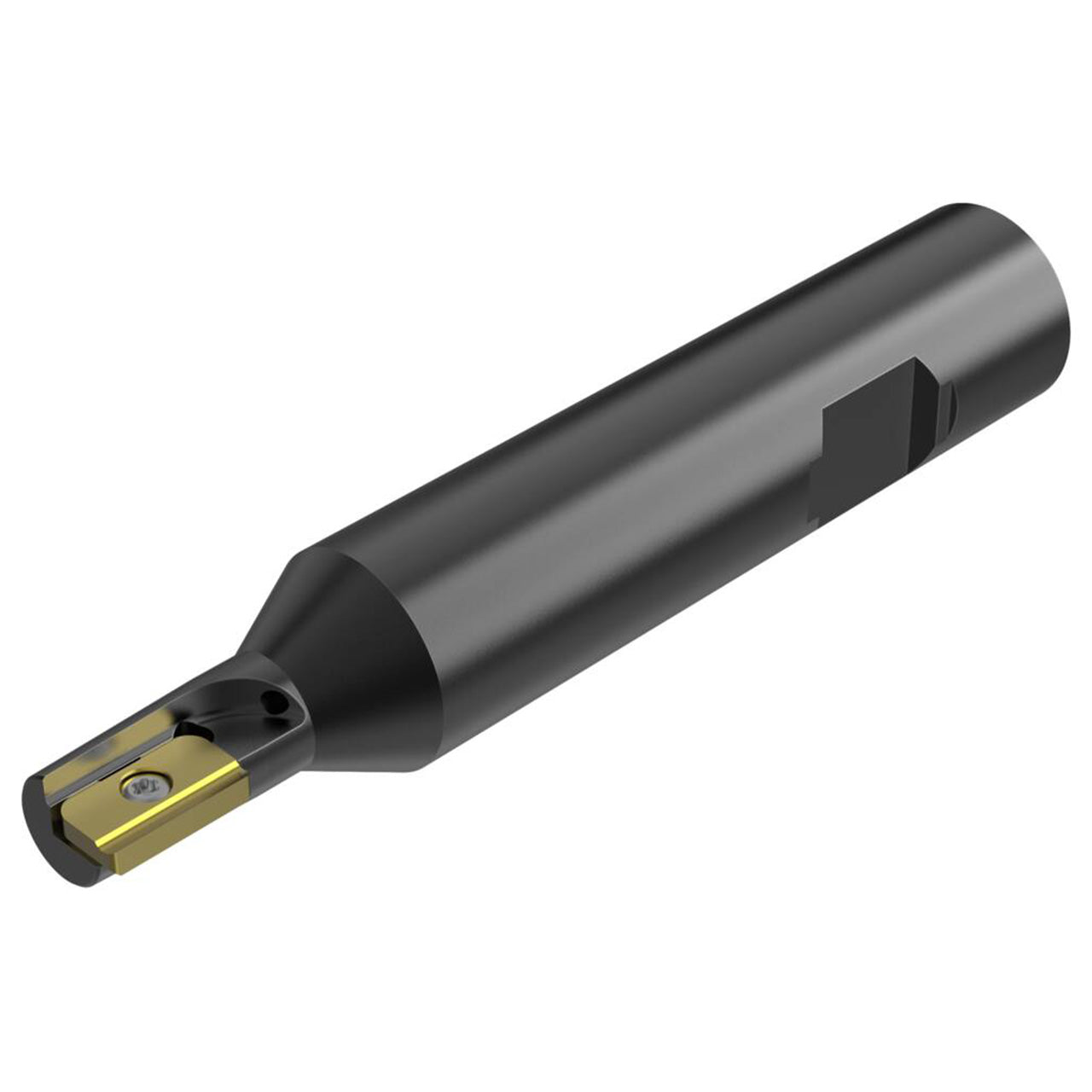

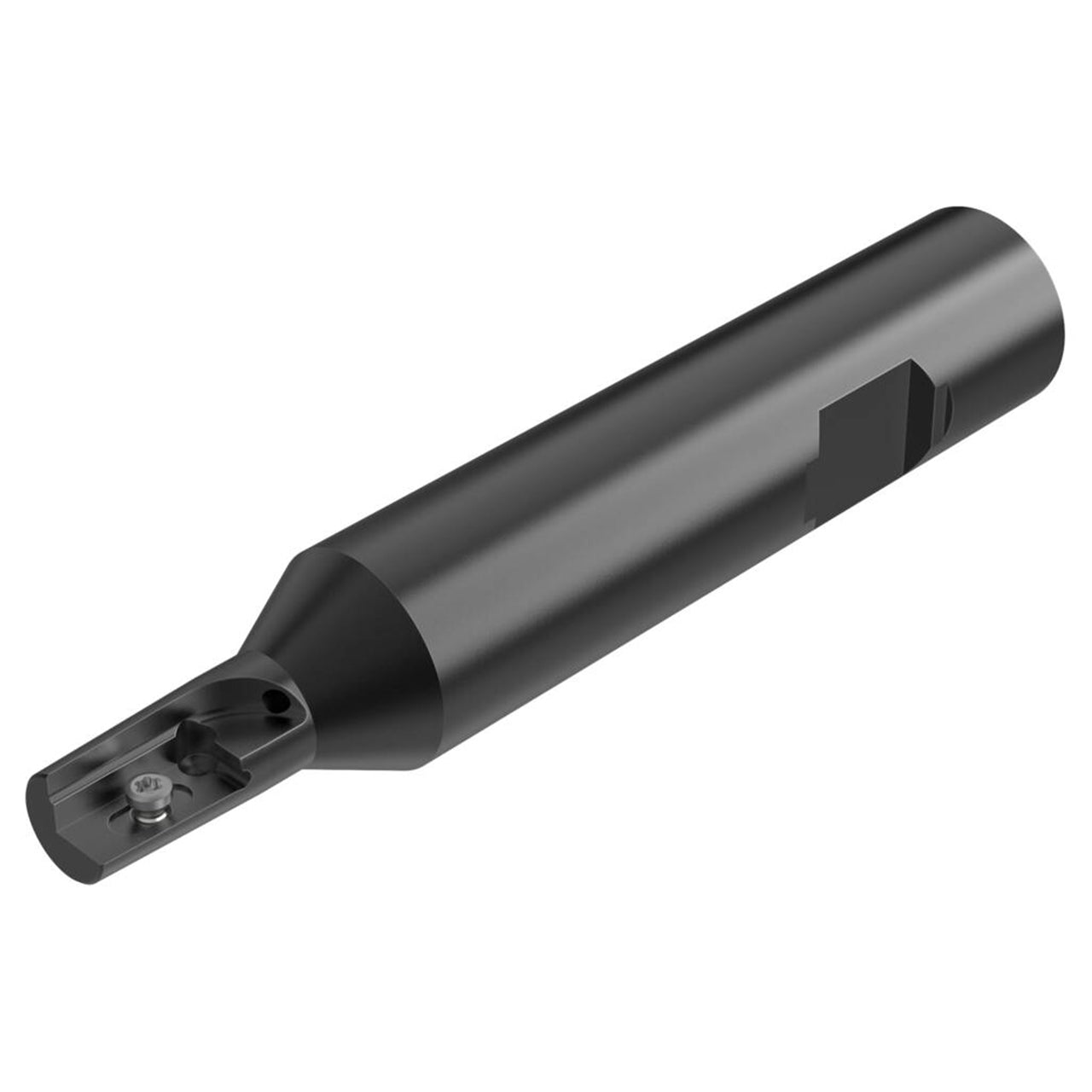

| Product Type | Indexable Thread Mill |
