Product Specifications
| Manufacturer Part Number | 00073313 |
| Cutting Diameter (mm) | 200.00mm |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (mm) | 168.00mm |
| Maximum Cutting Diameter (mm) | 214.20mm |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 12.00mm |
| Depth of Key Way (mm) | 14.00mm |
| Keyway Width (mm) | 25.70mm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Super close |
| Rake Radial Angle (Degree) | -11 Degree |
| Rake Radial Angle (Degree) | -11 Degree |
| Rake Orthogonal Angle (Degree) | -2 Degree |
| Axial Rake Angle (Degree) | 14 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 2000 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

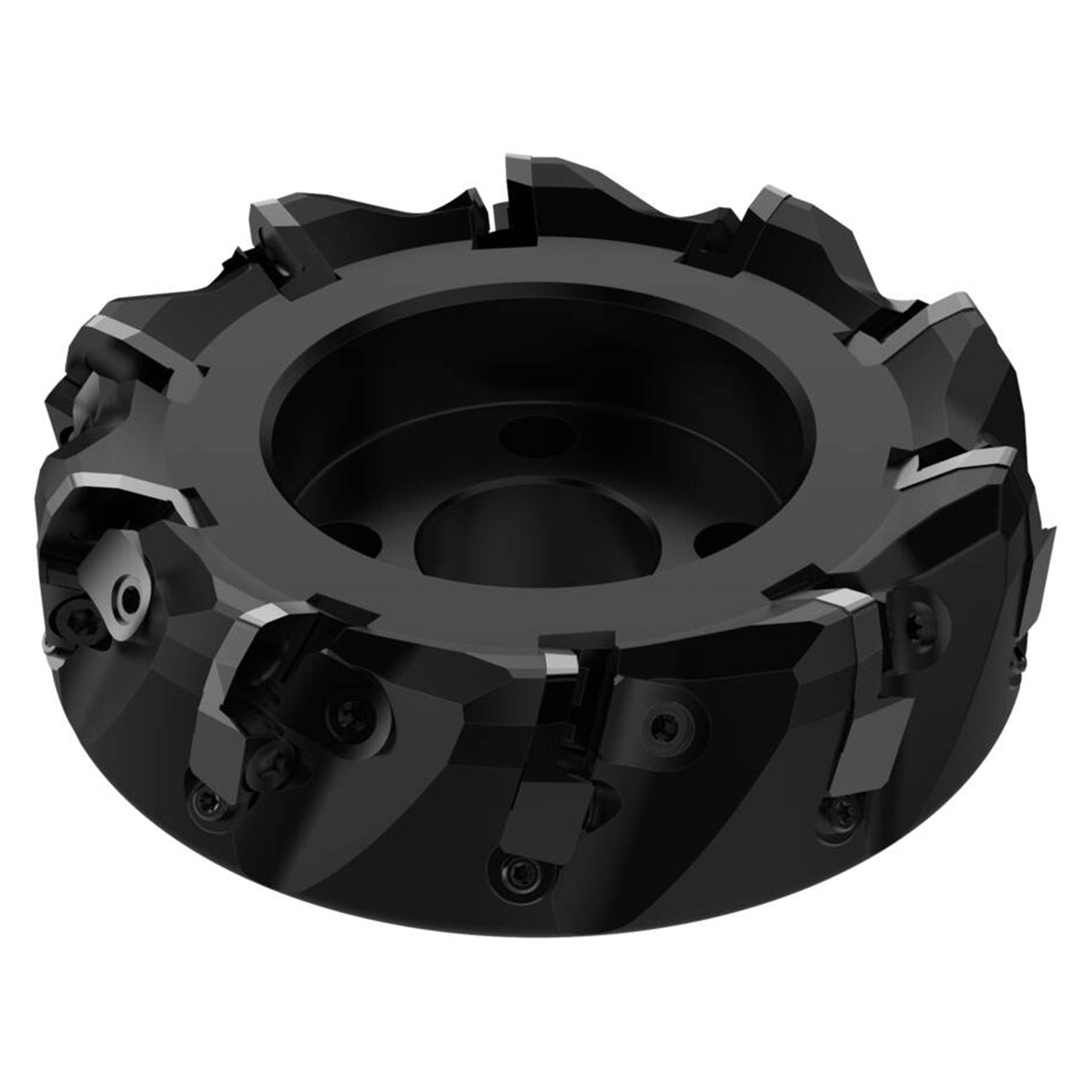

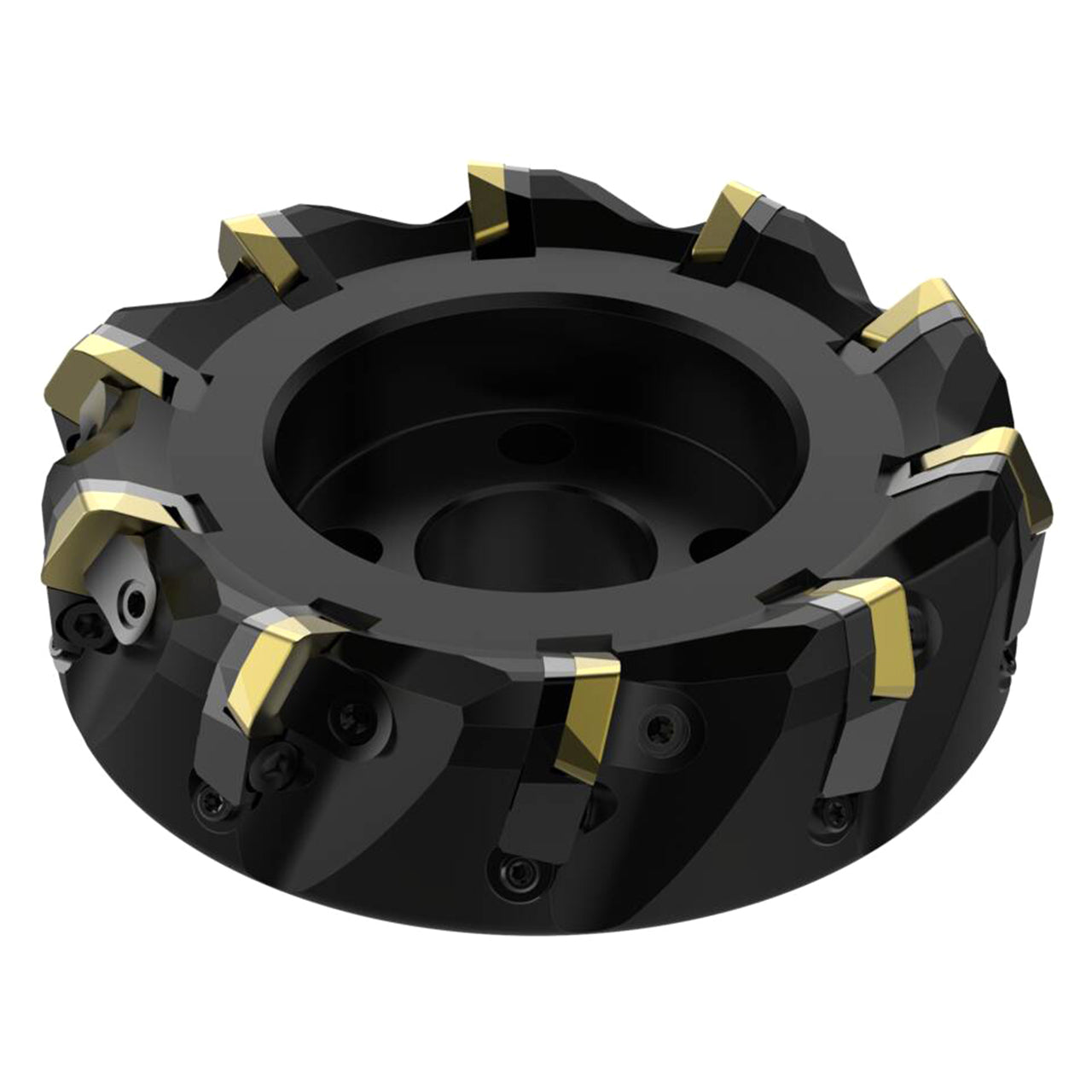

| Product Type | Indexable Copy Face Mill |
