Product Specifications
| Manufacturer Part Number | 00072560 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.550" |
| Minimum Cutting Diameter Internal (mm) | 13.97mm |
| Minimum Cutting Diameter Internal 2 (Decimal Inch) | 0.500" |
| Minimum Cutting Diameter Internal 2 (mm) | 12.70mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Functional Length (Decimal Inch) | 5.000" |
| Functional Length (mm) | 127.00mm |
| Head Length (Decimal Inch) | 1.000" |
| Head Length (mm) | 25.40mm |
| Maximum Cutting Depth (Decimal Inch) | 393.661" |
| Maximum Cutting Depth (mm) | 9999.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.625" |
| Height of Tool Holder Shank (mm) | 15.88mm |
| Shank Type | Cylindrical |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |

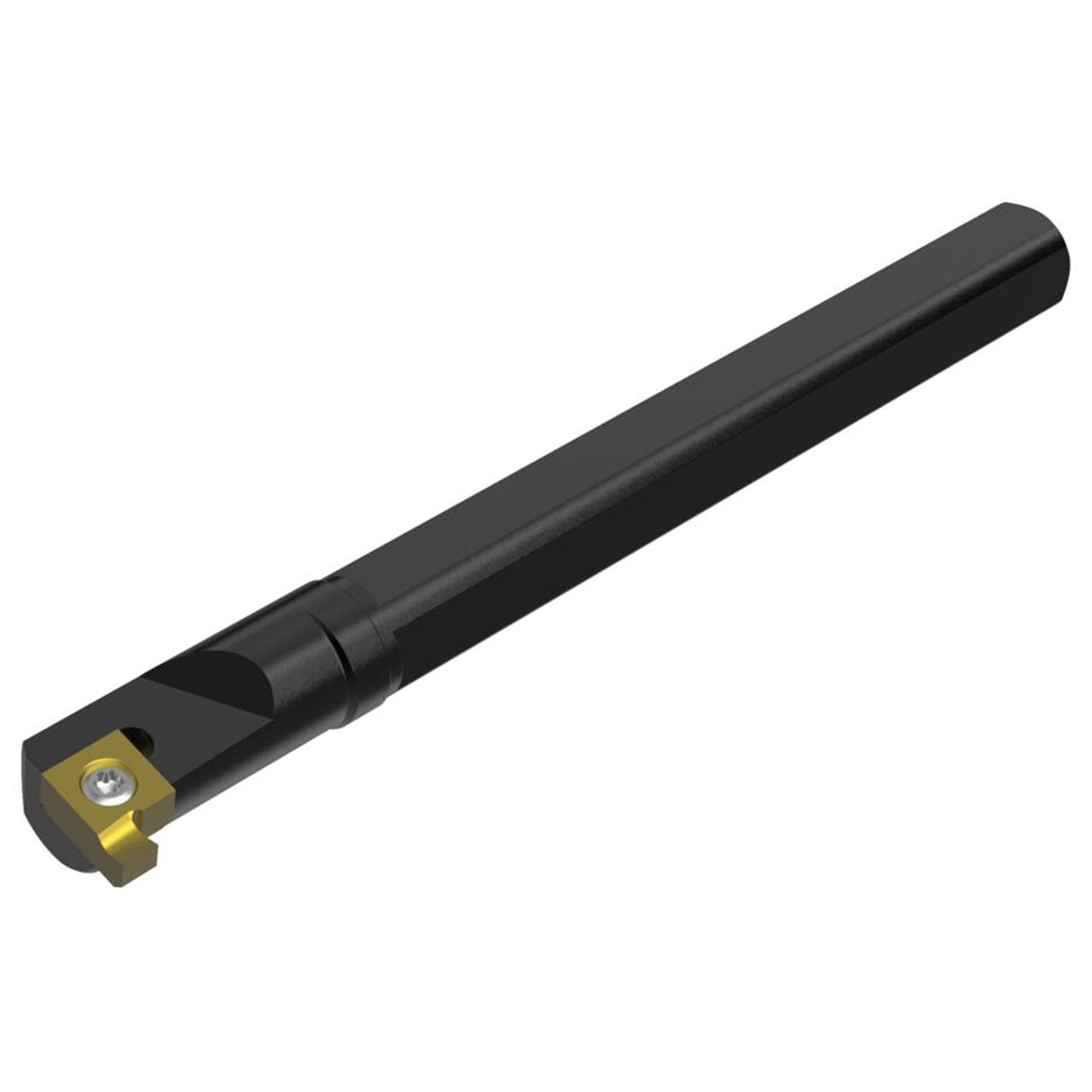

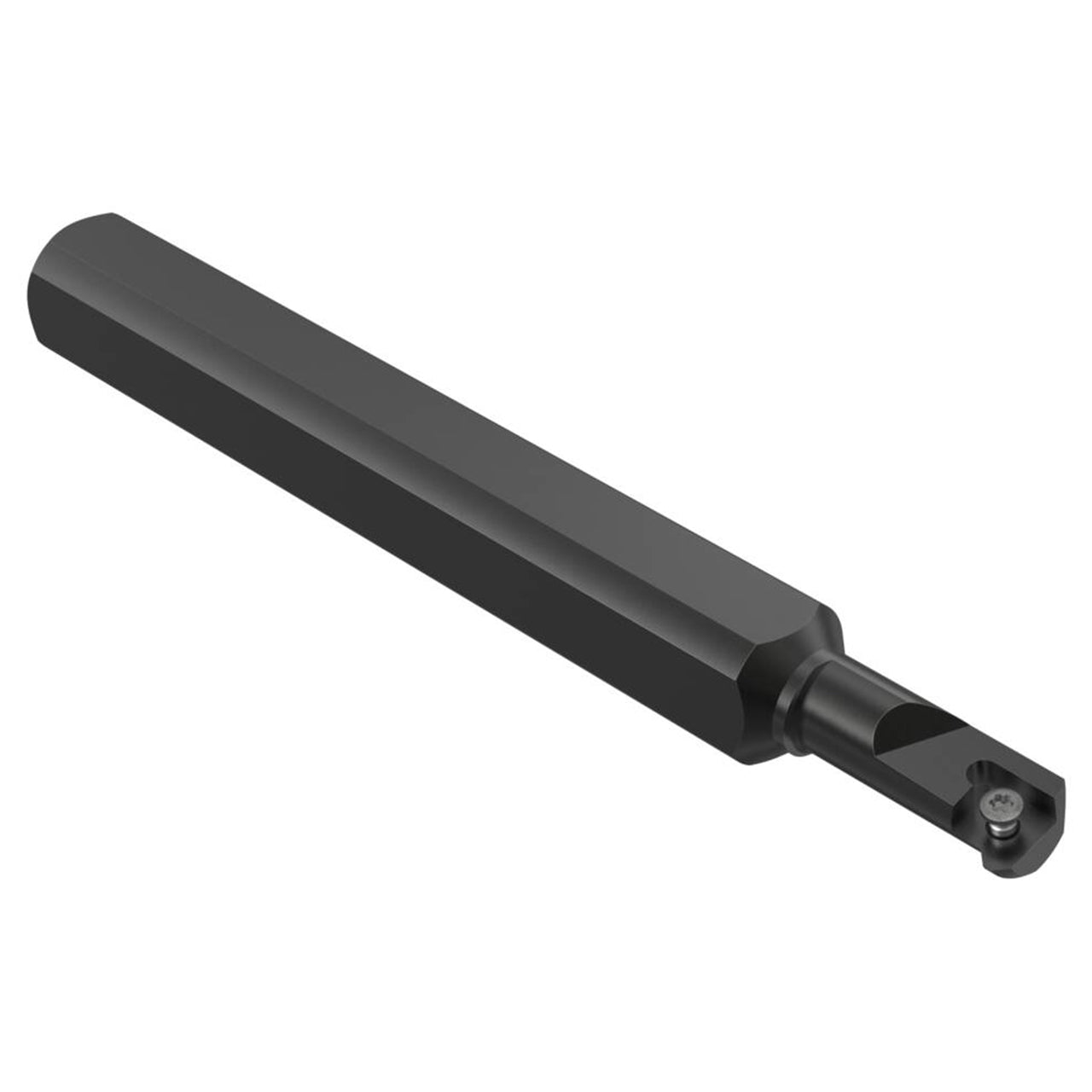

| Product Type | Indexable Threading Toolholder |
