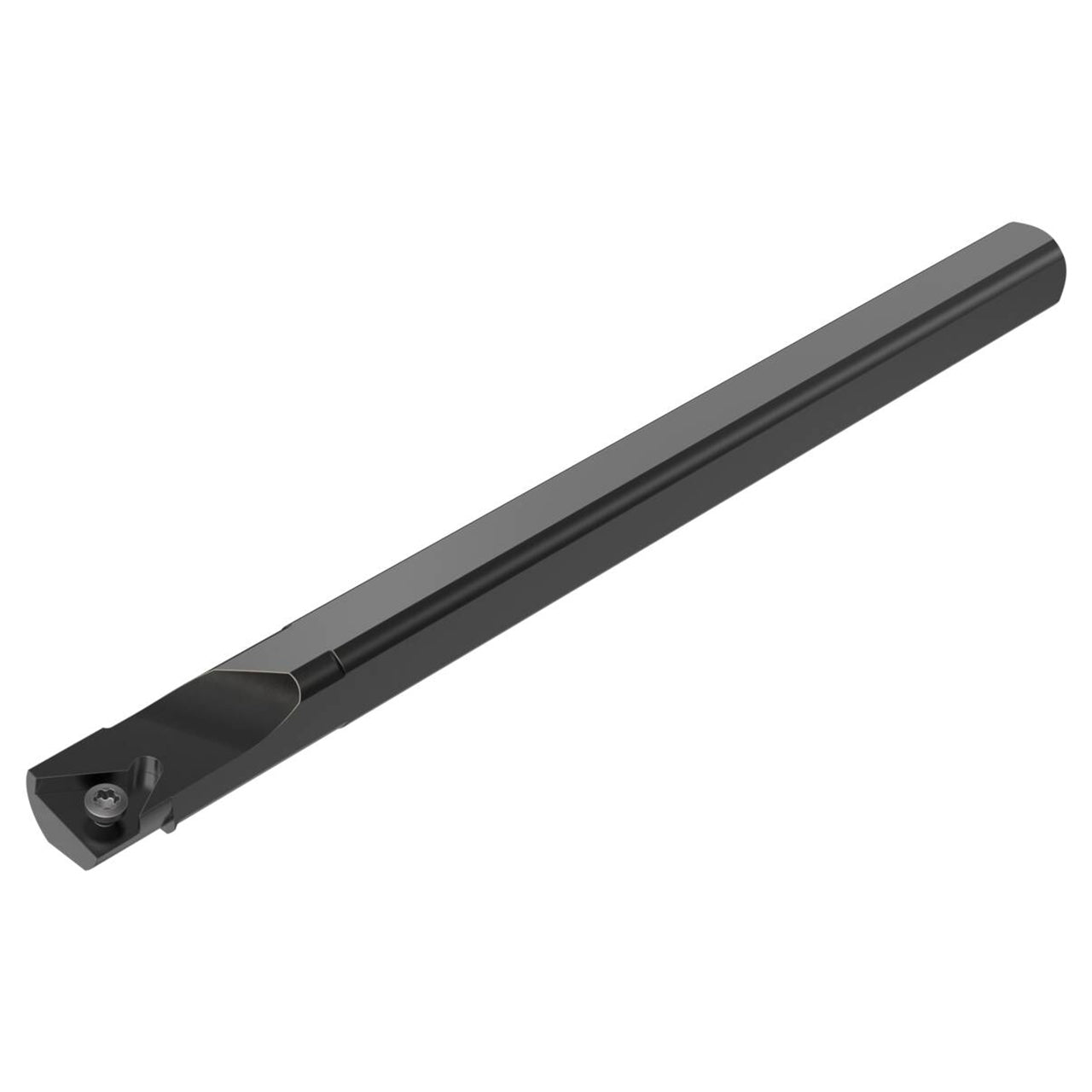

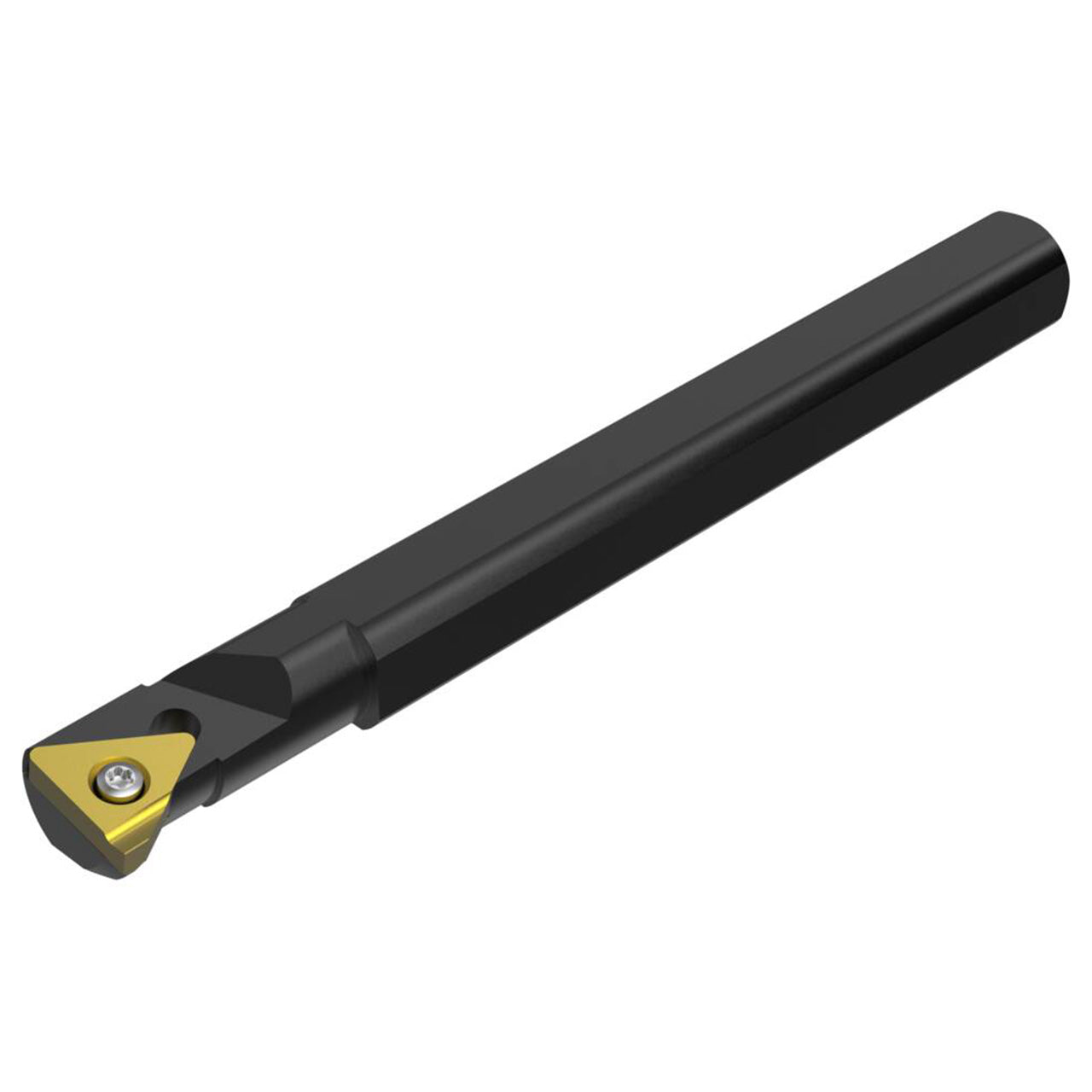

Product Specifications
| Manufacturer Part Number | 00072330 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.750" |
| Minimum Cutting Diameter Internal (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.500" |
| Head Length (mm) | 38.10mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.566" |
| Height of Tool Holder Shank (mm) | 14.38mm |
| Shank Type | Cylindrical |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Product Type | Indexable Threading Toolholder |
