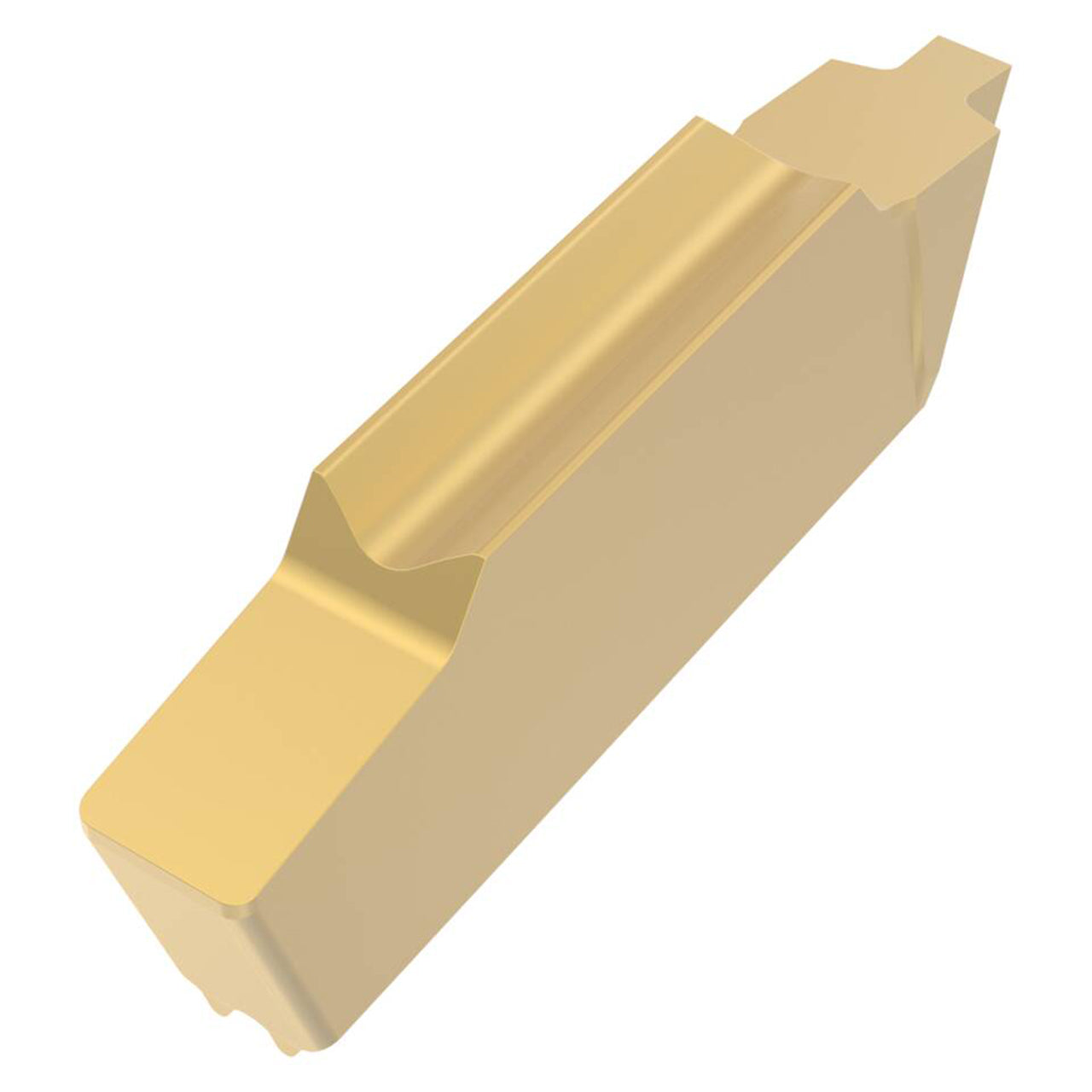

Product Specifications
| Manufacturer Part Number | 00071651 |
| Insert Thickness (Decimal Inch) | 0.177" |
| Insert Thickness (mm) | 4.50mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.063" |
| Maximum Cutting Depth Insert (mm) | 1.60mm |
| Cutting Width (Decimal Inch) | 0.053" |
| Cutting Width (mm) | 1.35mm |
| Insert Gauge Length (Decimal Inch) | 0.654" |
| Insert Gauge Length (mm) | 16.60mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 1 |
| Insert Size And Shape | LC1603 |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Seat Size Code | 16 |
| Product Type | Multi-Directional Turning Insert |
