Product Specifications
| Manufacturer Part Number | 00061858 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.630" |
| Minimum Cutting Diameter Internal (mm) | 16.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Functional Length (Decimal Inch) | 7.000" |
| Functional Length (mm) | 177.80mm |
| Head Length (Decimal Inch) | 1.620" |
| Head Length (mm) | 41.15mm |
| Usable Length (Decimal Inch) | 0.984" |
| Usable Length (mm) | 25.00mm |
| Shank Width (Decimal Inch) | 0.605" |
| Shank Width (mm) | 15.38mm |
| Maximum Cutting Depth (Decimal Inch) | 0.118" |
| Maximum Cutting Depth (mm) | 3.00mm |
| Cutting Width (Decimal Inch) | 0.118" |
| Cutting Width (mm) | 3.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.586" |
| Height of Tool Holder Shank (mm) | 14.88mm |
| Functional Width (Decimal Inch) | 0.400" |
| Functional Width (mm) | 10.16mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Cylindrical |

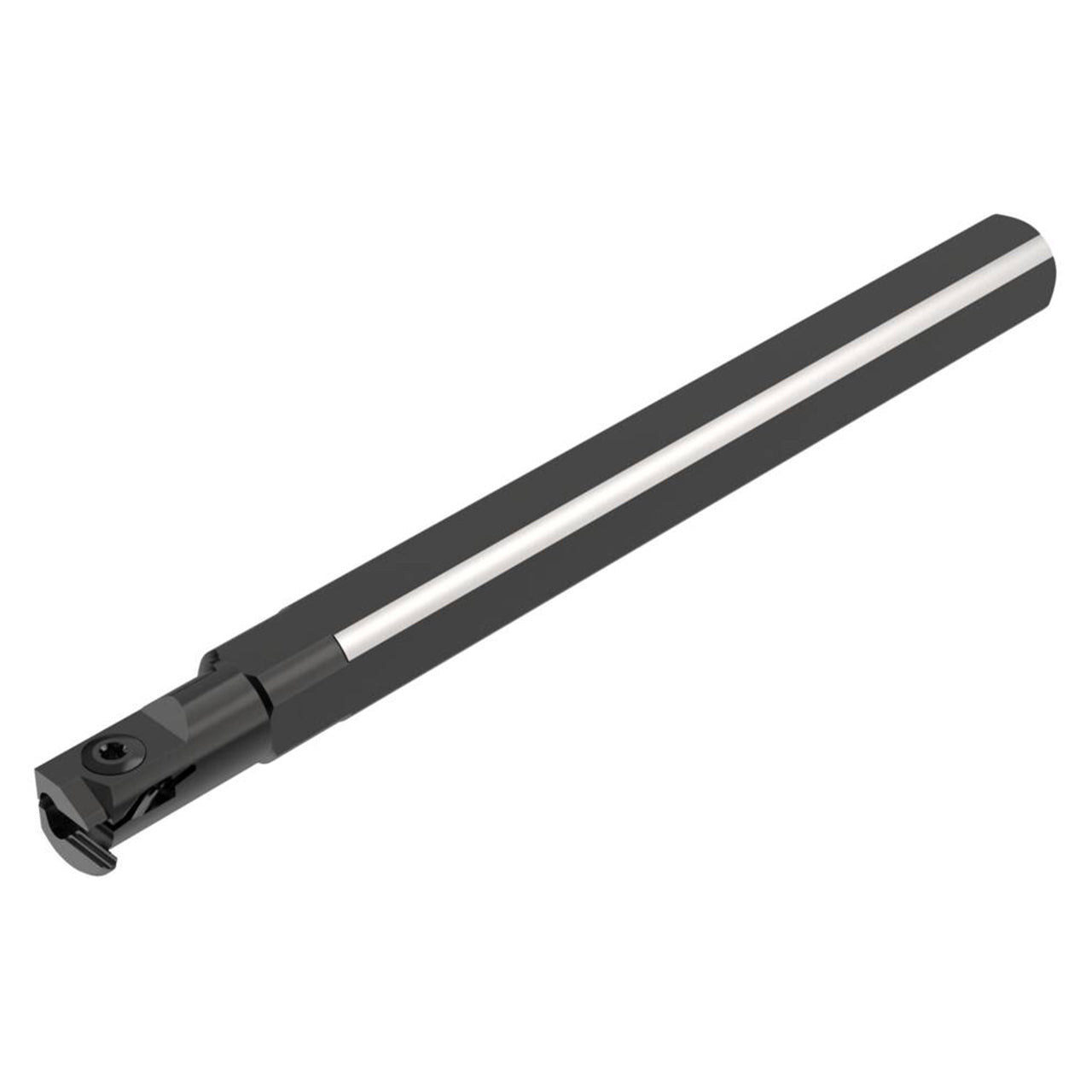

| Product Type | Indexable Grooving Toolholder |
