Product Specifications
| Manufacturer Part Number | 00059852 |
| Cutting Diameter (Decimal Inch) | 3.150" |
| Cutting Diameter (mm) | 80.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.543" |
| Contact Surface Diameter Machine Side (mm) | 90.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 3.520" |
| Maximum Cutting Diameter (mm) | 89.41mm |
| Functional Length (Decimal Inch) | 2.382" |
| Functional Length (mm) | 60.50mm |
| Depth of Key Way (Decimal Inch) | 0.230" |
| Depth of Key Way (mm) | 5.84mm |
| Keyway Width (Decimal Inch) | 0.381" |
| Keyway Width (mm) | 9.67mm |
| Rake Radial Angle (Degree) | -9 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Maximum Rotational Speed (rpm) | 15900 rpm |
| Shank Type | Arbor |

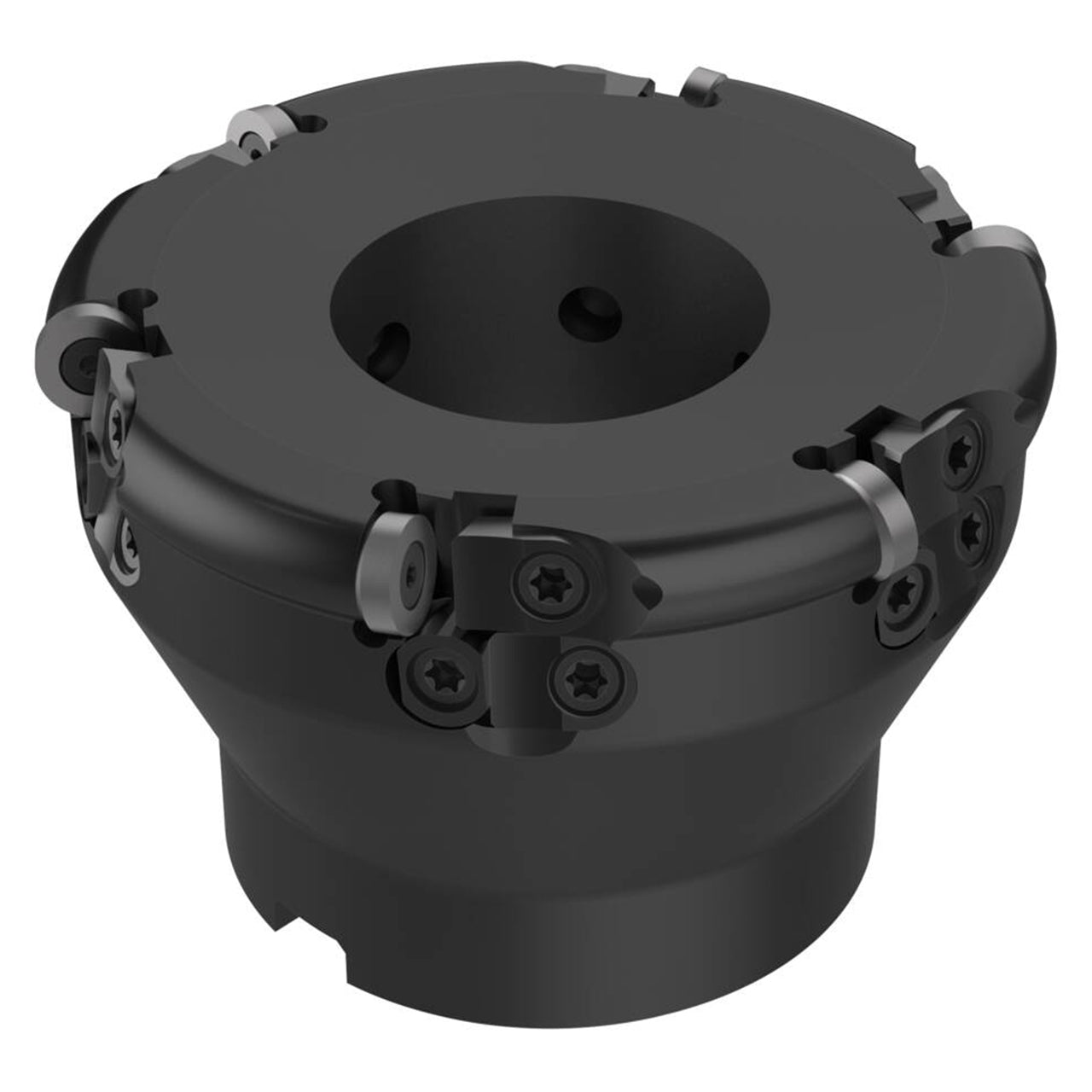

| Product Type | Face Mill for Round Insert |
