Product Specifications
| Manufacturer Part Number | 00059680 |

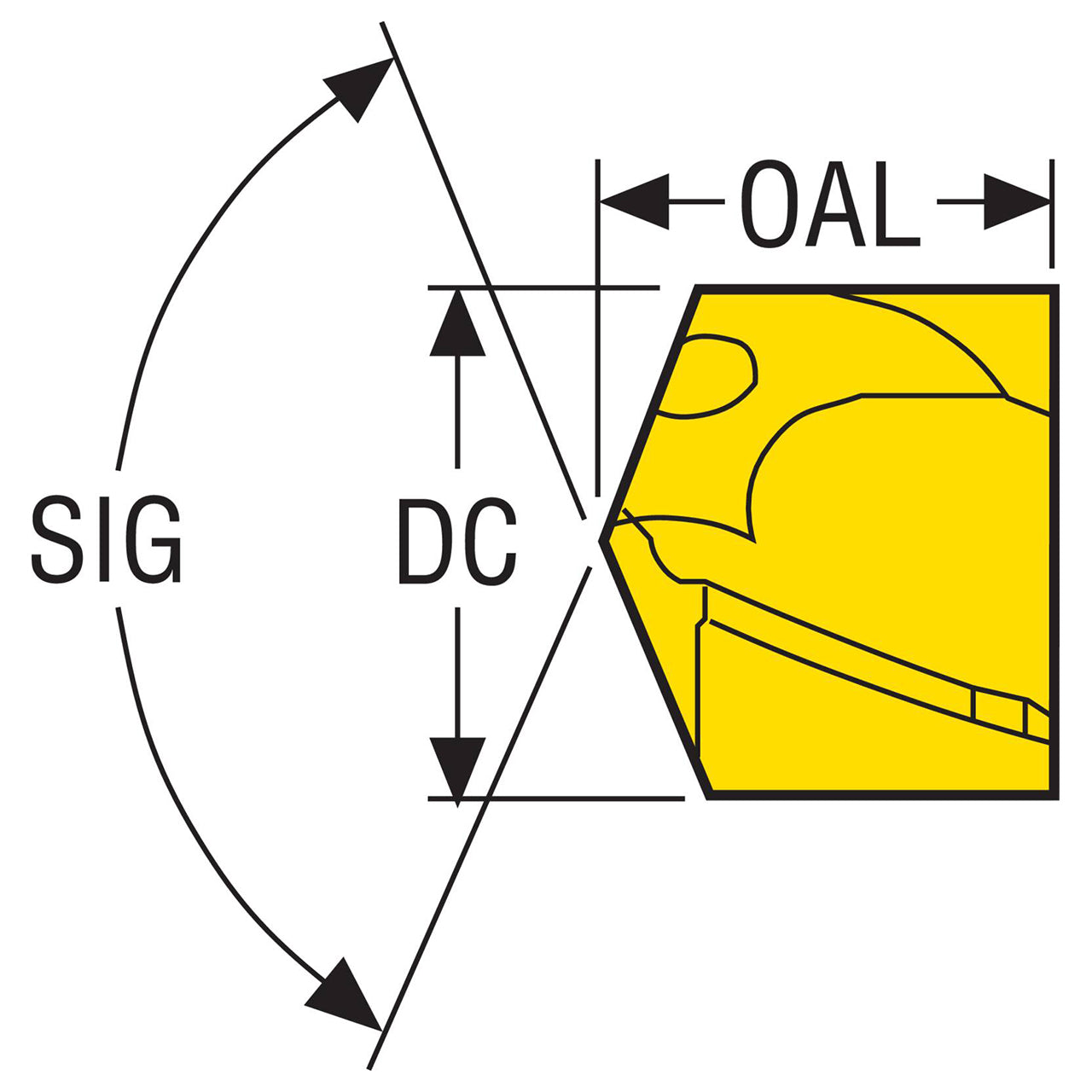

| Cutting Diameter (Decimal Inch) | 0.656" |
| Cutting Diameter (mm) | 16.67mm |
| Overall Length (Decimal Inch) | 0.496" |
| Overall Length (mm) | 12.60mm |
| Cutting Edge Count | 1 |
| Cutting Geometry Type | M |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Point Angle (Degree) | 140 Degree |
| Material | Carbide |

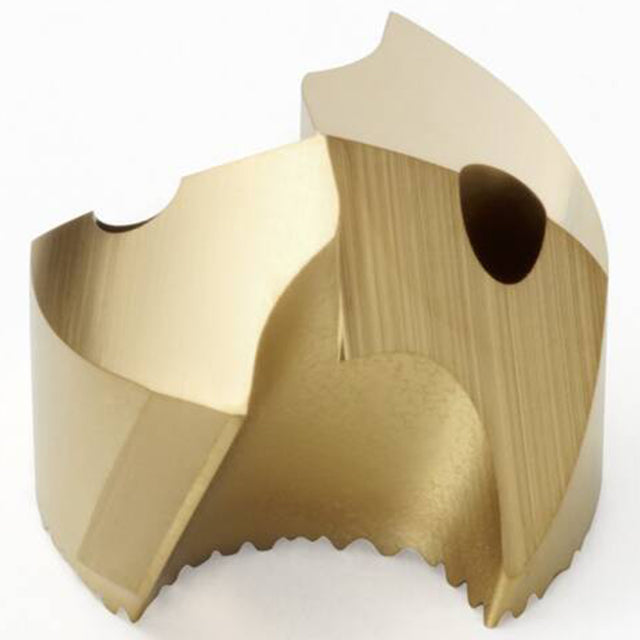

| Product Type | Replaceable Drill Tip |
