Product Specifications
| Manufacturer Part Number | 00057605 |
| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Body Diameter 1 (Decimal Inch) | 1.614" |
| Body Diameter 1 (mm) | 41.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.551" |
| Connection Bore Diameter (mm) | 14.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 1.181" |
| Minimum Cutting Diameter (mm) | 30.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.575" |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 6.102" |
| Body Length (mm) | 155.00mm |
| Body Length 1 (Decimal Inch) | 1.772" |
| Body Length 1 (mm) | 45.00mm |
| Protruding Length (Decimal Inch) | 8.661" |
| Protruding Length (mm) | 220.00mm |
| Usable Length (Decimal Inch) | 7.874" |
| Usable Length (mm) | 200.00mm |
| Overall Length (Decimal Inch) | 9.843" |
| Overall Length (mm) | 250.00mm |

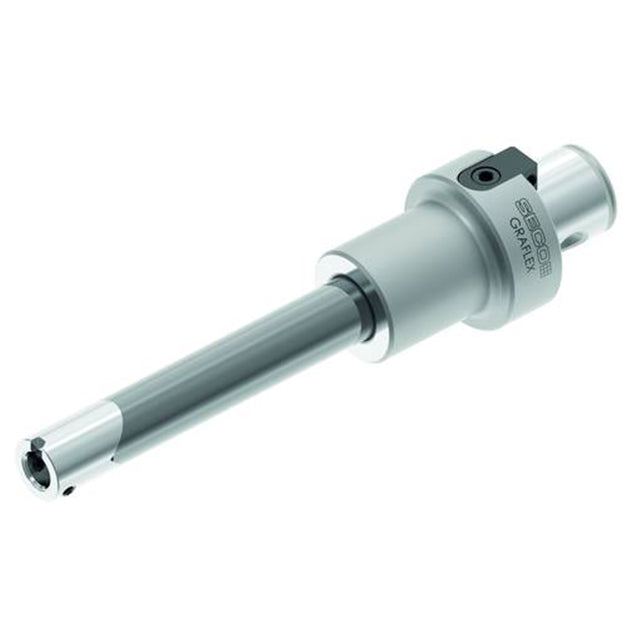

| Product Type | Boring Head Shank Extension |
