Product Specifications

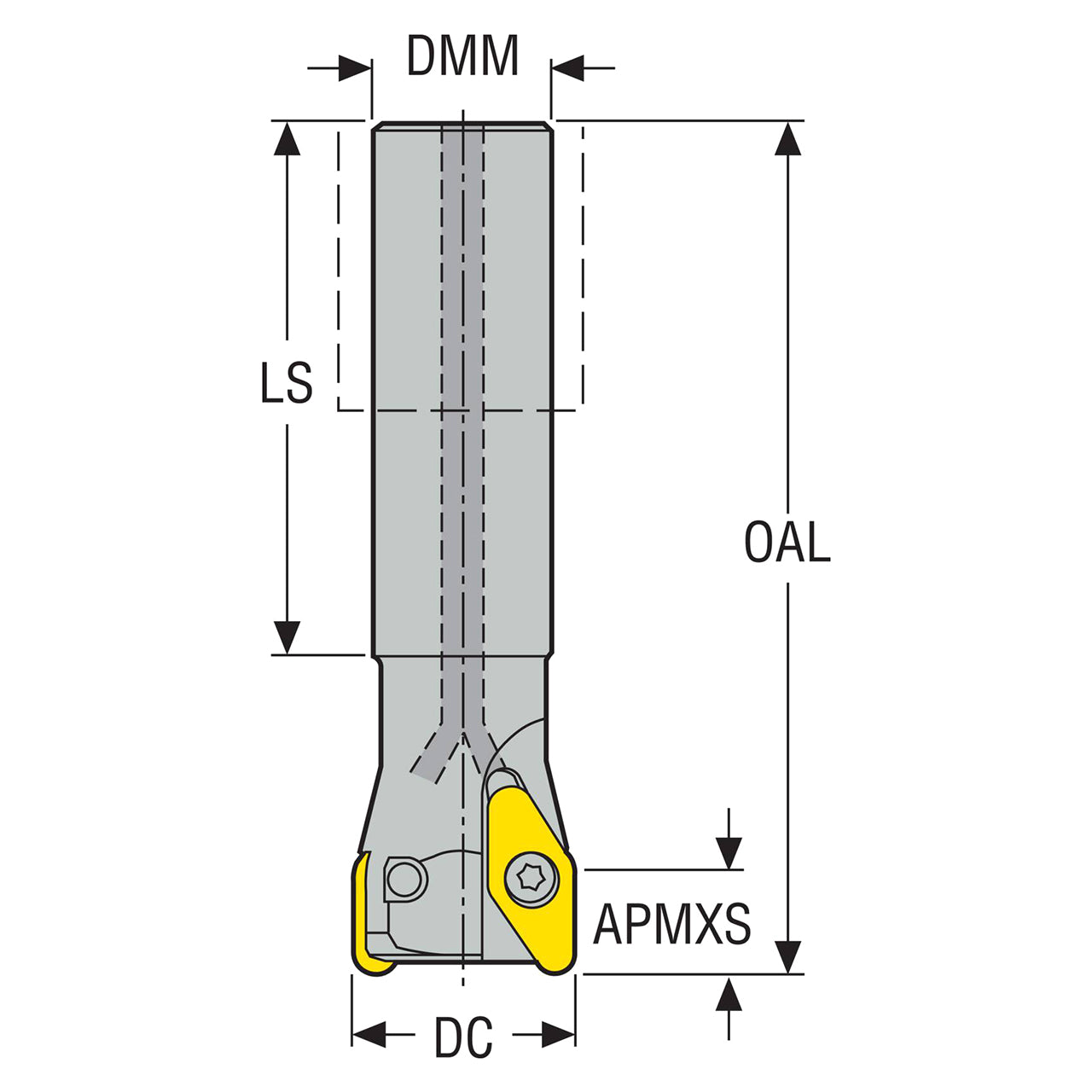

| Manufacturer Part Number | 00054181 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.685" |
| Minimum Helical Interpolation Hole Diameter (mm) | 68.20mm |
| Protruding Length (Decimal Inch) | 3.638" |
| Protruding Length (mm) | 92.40mm |
| Shank Length (Decimal Inch) | 4.000" |
| Shank Length (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Maximum Depth of Cut (mm) | 14.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.551" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4.5 Degree |
| Rake Radial Angle (Degree) | -4.5 Degree |
| Rake Orthogonal Angle (Degree) | -4.5 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 10 Degree |
| Maximum Rotational Speed (rpm) | 35000 rpm |
| Shank Type | Cylindrical |

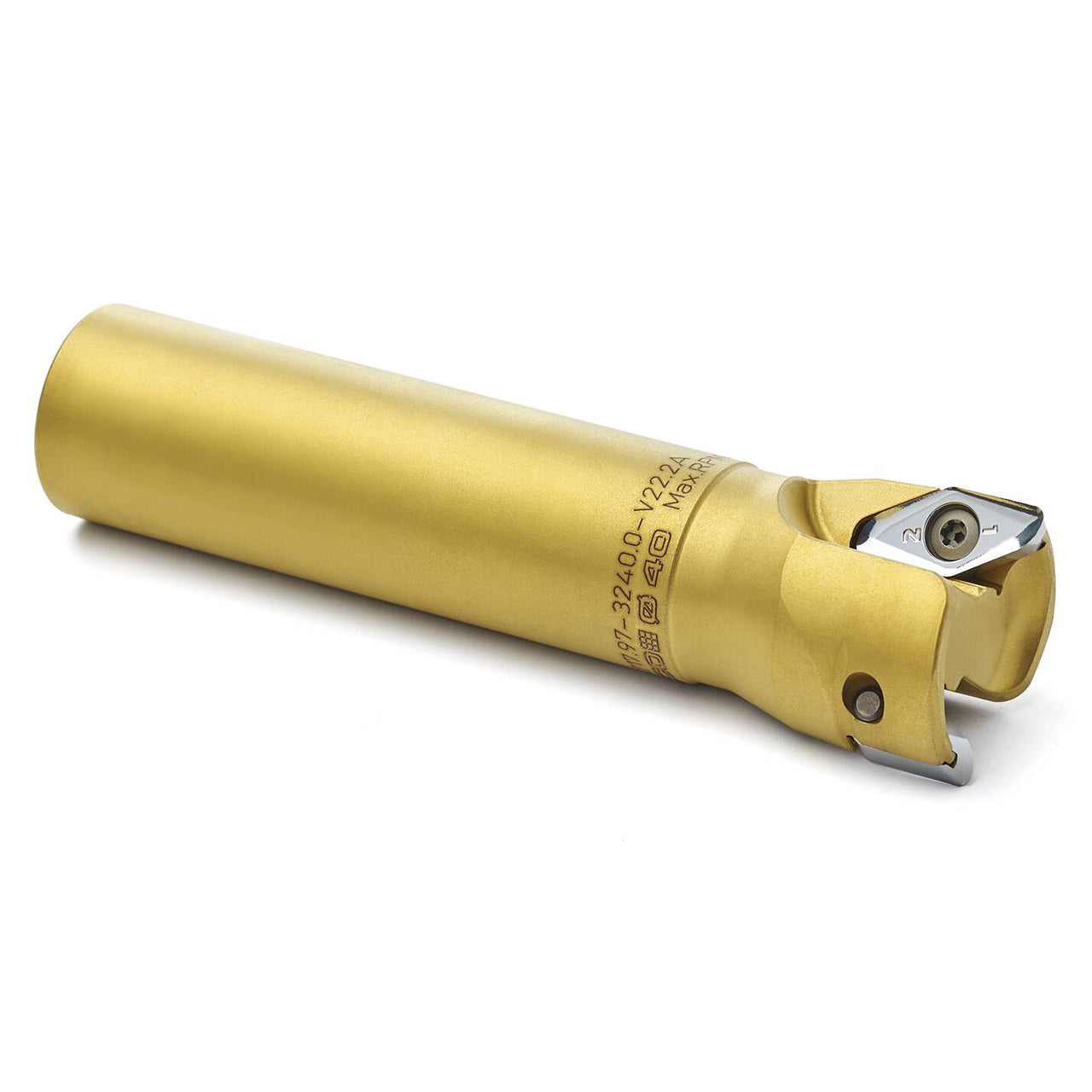

| Product Type | Indexable Copy End Mill |
