Product Specifications
| Manufacturer Part Number | 00042846 |
| Functional Length (mm) | 125.00mm |
| Head Length (mm) | 13.00mm |
| Shank Width (mm) | 8.00mm |
| Height of Tool Holder Shank (mm) | 8.00mm |
| Functional Width (mm) | 8.70mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | A |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 125 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Insert Shape Code | D |
| Shank Type | Square shank |

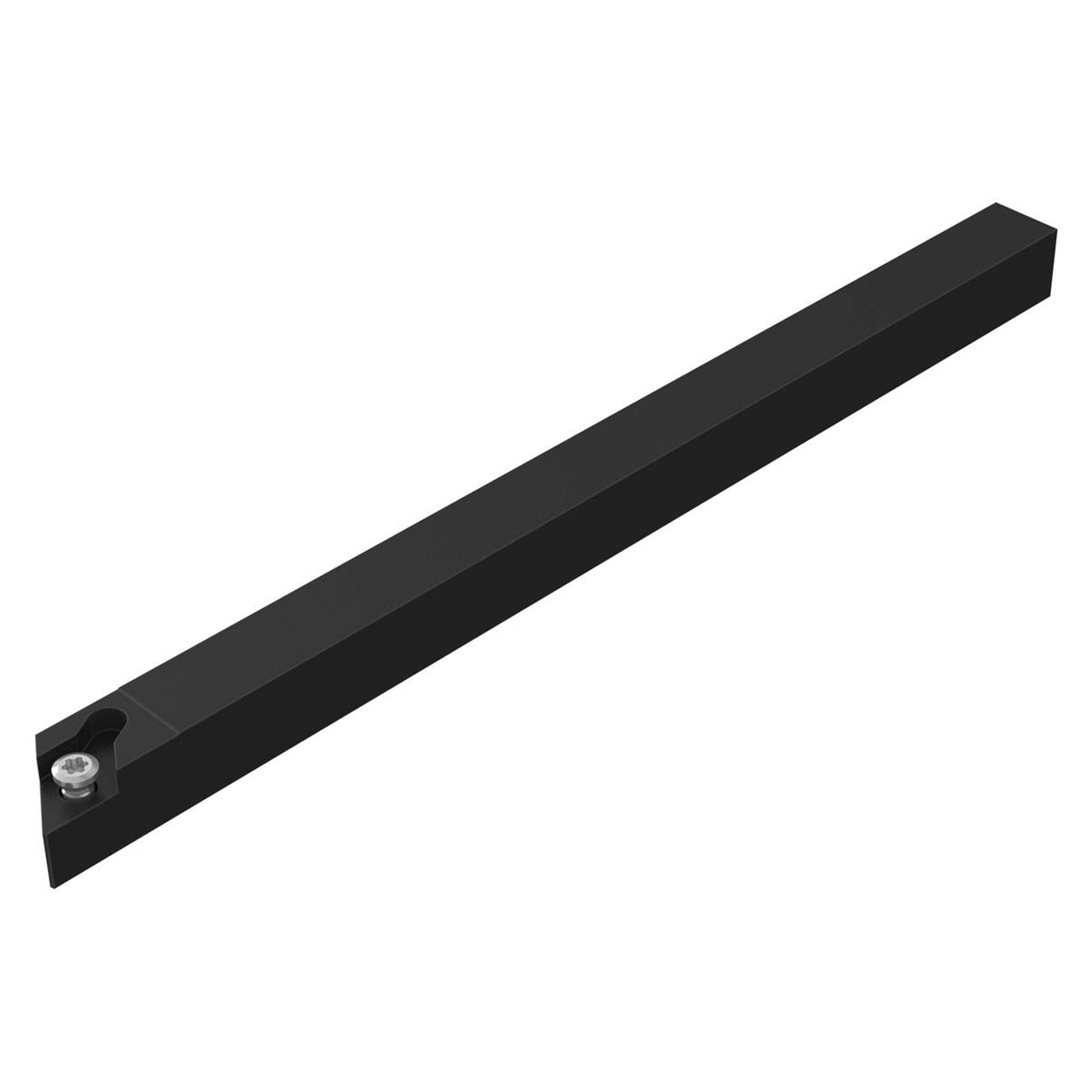

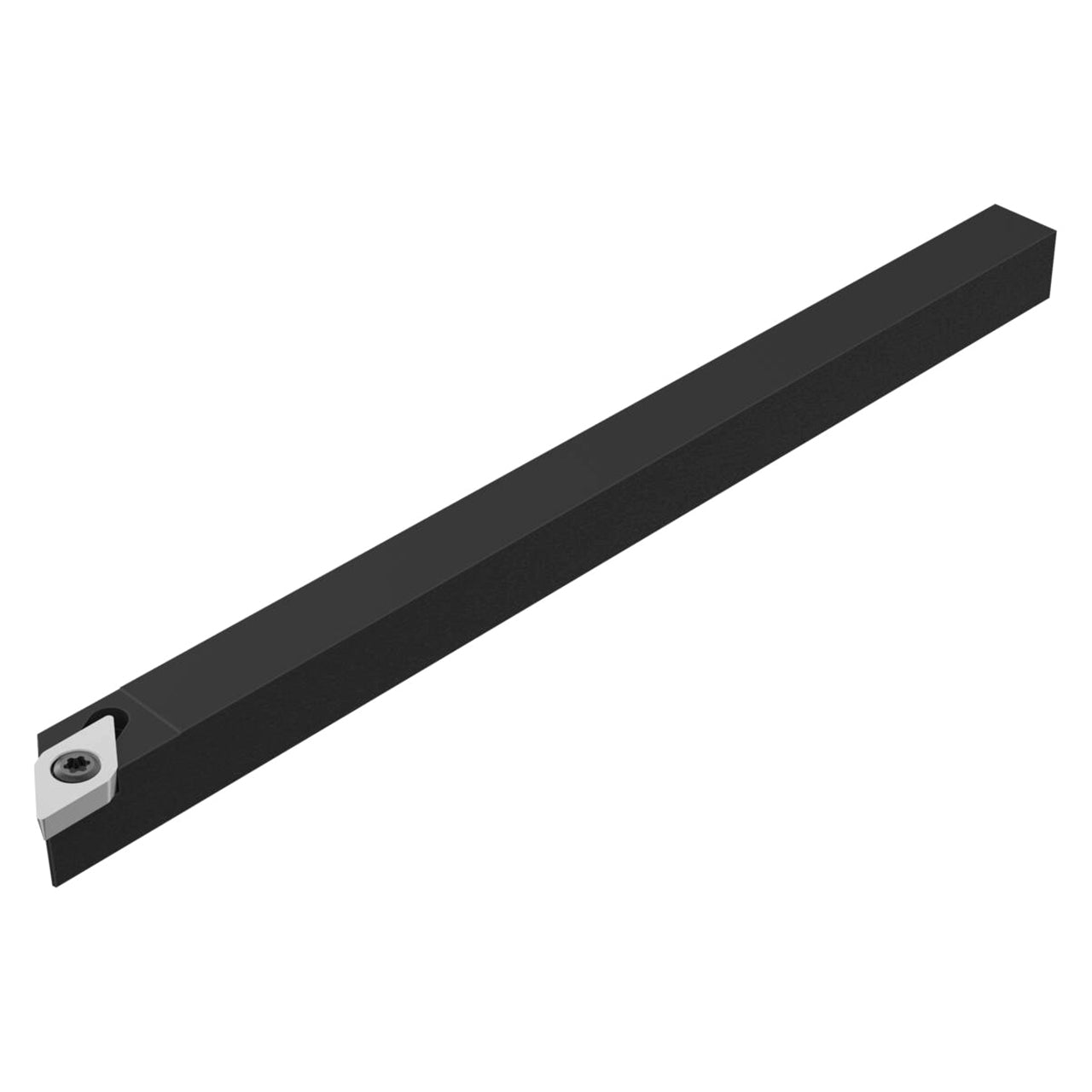

| Product Type | Indexable Turning Toolholder |
