Product Specifications
| Manufacturer Part Number | 00042755 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.953" |
| Minimum Cutting Diameter Internal (mm) | 75.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 6.496" |
| Minimum Cutting Diameter Internal 3 (mm) | 165.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Functional Width (Decimal Inch) | 1.063" |
| Functional Width (mm) | 27.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | S |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Inclination Angle (Degree) | -8 Degree |
| Insert Shape Code | R |
| Shank Type | Seco-Capto |

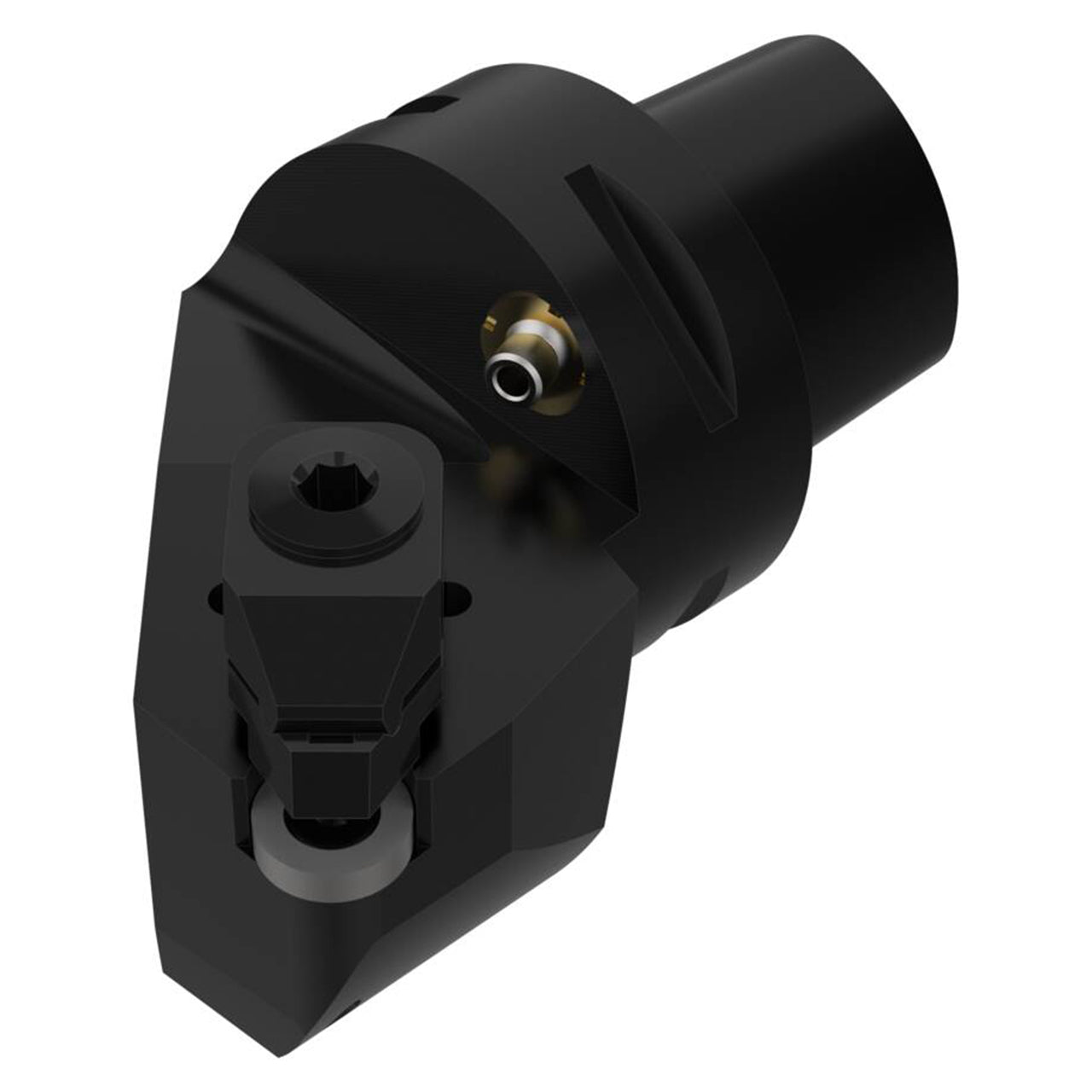

| Product Type | Modular Turning Head |
