Product Specifications
| Manufacturer Part Number | 00041882 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.756" |
| Minimum Cutting Diameter Internal (mm) | 70.00mm |
| Functional Length (Decimal Inch) | 2.756" |
| Functional Length (mm) | 70.00mm |
| Head Length (Decimal Inch) | 1.181" |
| Head Length (mm) | 30.00mm |
| Shank Width (Decimal Inch) | 0.709" |
| Shank Width (mm) | 18.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.181" |
| Height of Tool Holder Shank (mm) | 30.00mm |
| Functional Height (Decimal Inch) | 0.787" |
| Functional Height (mm) | 20.00mm |
| Mounting Hole Distance (Decimal Inch) | 1.181" |
| Mounting Hole Distance (mm) | 30.00mm |
| Functional Width (Decimal Inch) | 0.984" |
| Functional Width (mm) | 25.00mm |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | -10 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 120 Degree |
| Inclination Angle (Degree) | -10 Degree |
| Shank Type | Cartridges |

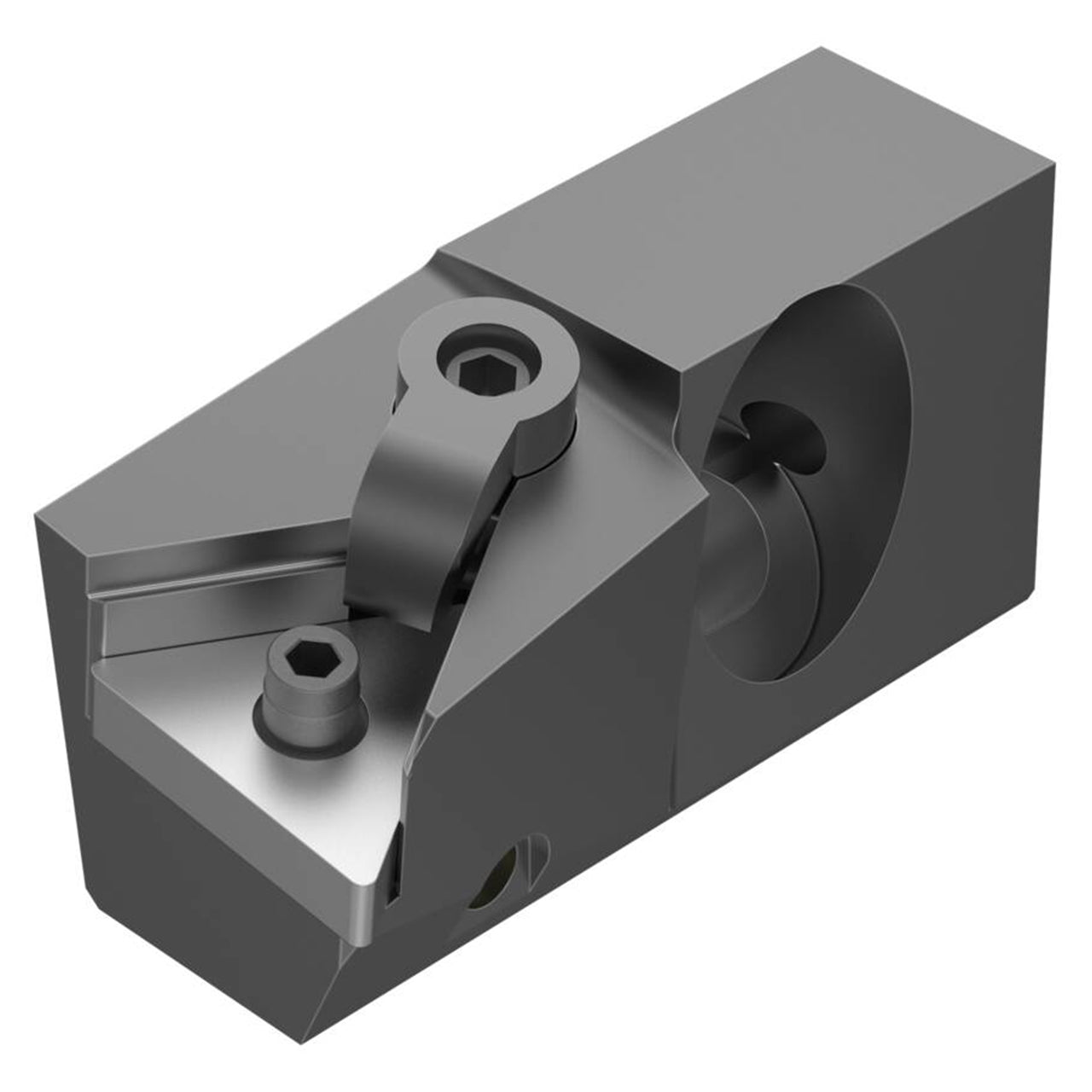

| Product Type | Indexable Turning Cartridge |
