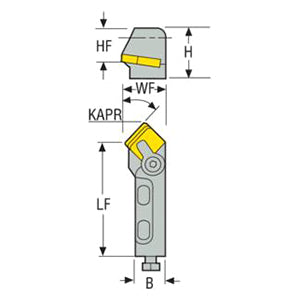

Product Specifications
| Manufacturer Part Number | 00041865 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.969" |
| Minimum Cutting Diameter Internal (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 2.177" |
| Functional Length (mm) | 55.30mm |
| Head Length (Decimal Inch) | 1.102" |
| Head Length (mm) | 28.00mm |
| Shank Width (Decimal Inch) | 0.551" |
| Shank Width (mm) | 14.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.787" |
| Height of Tool Holder Shank (mm) | 20.00mm |
| Functional Height (Decimal Inch) | 0.472" |
| Functional Height (mm) | 12.00mm |
| Mounting Hole Distance (Decimal Inch) | 0.787" |
| Mounting Hole Distance (mm) | 19.99mm |
| Functional Width (Decimal Inch) | 0.787" |
| Functional Width (mm) | 20.00mm |
| Rake Orthogonal Angle (Degree) | -9 Degree |
| Axial Rake Angle (Degree) | -9 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | S |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Inclination Angle (Degree) | -9 Degree |
| Shank Type | Cartridges |

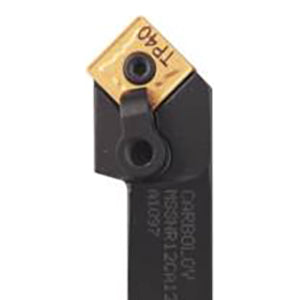

| Product Type | Indexable Turning Cartridge |
