Product Specifications
| Manufacturer Part Number | 00041094 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.559" |
| Minimum Cutting Diameter Internal (mm) | 65.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 14.000" |
| Functional Length (mm) | 355.60mm |
| Head Length (Decimal Inch) | 1.969" |
| Head Length (mm) | 50.00mm |
| Shank Width (Decimal Inch) | 1.419" |
| Shank Width (mm) | 36.05mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.197" |
| Maximum Radial Cutting Depth (mm) | 5.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.197" |
| Maximum Cutting Depth (mm) | 5.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.339" |
| Height of Tool Holder Shank (mm) | 34.00mm |
| Functional Width (Decimal Inch) | 1.031" |
| Functional Width (mm) | 26.19mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | -10 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 118 Degree |
| Inclination Angle (Degree) | -10 Degree |
| Insert Shape Code | T |
| Shank Type | Cylindrical |

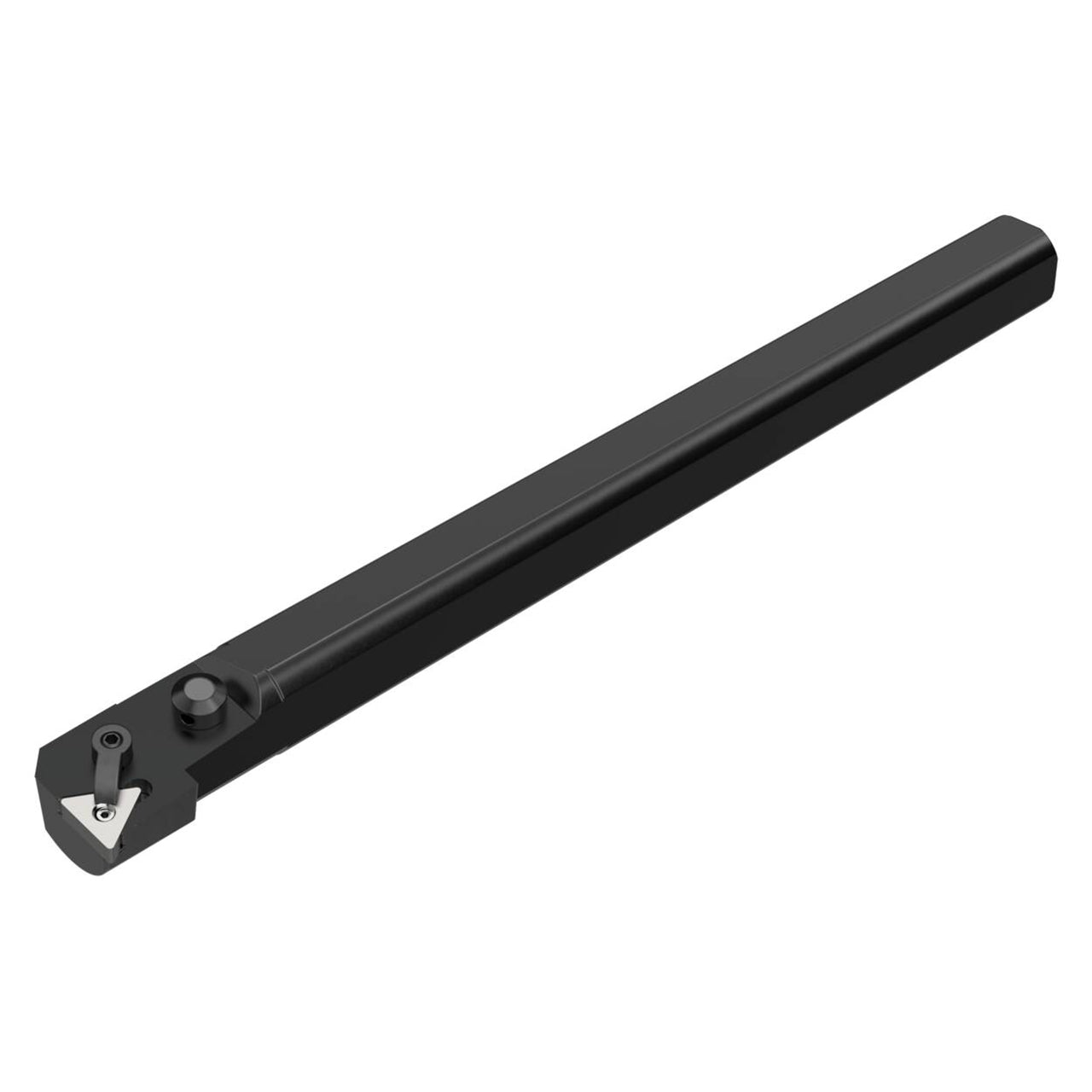

| Product Type | Indexable Boring Bar |
