Product Specifications
| Manufacturer Part Number | 00041052 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.780" |
| Minimum Cutting Diameter Internal (mm) | 45.21mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 14.000" |
| Functional Length (mm) | 355.60mm |
| Head Length (Decimal Inch) | 2.224" |
| Head Length (mm) | 56.50mm |
| Shank Length (Decimal Inch) | 11.776" |
| Shank Length (mm) | 299.10mm |
| Shank Width (Decimal Inch) | 1.461" |
| Shank Width (mm) | 37.10mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.902" |
| Height of Tool Holder Shank (mm) | 22.90mm |
| Functional Width (Decimal Inch) | 0.890" |
| Functional Width (mm) | 22.60mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | -12 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -12 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

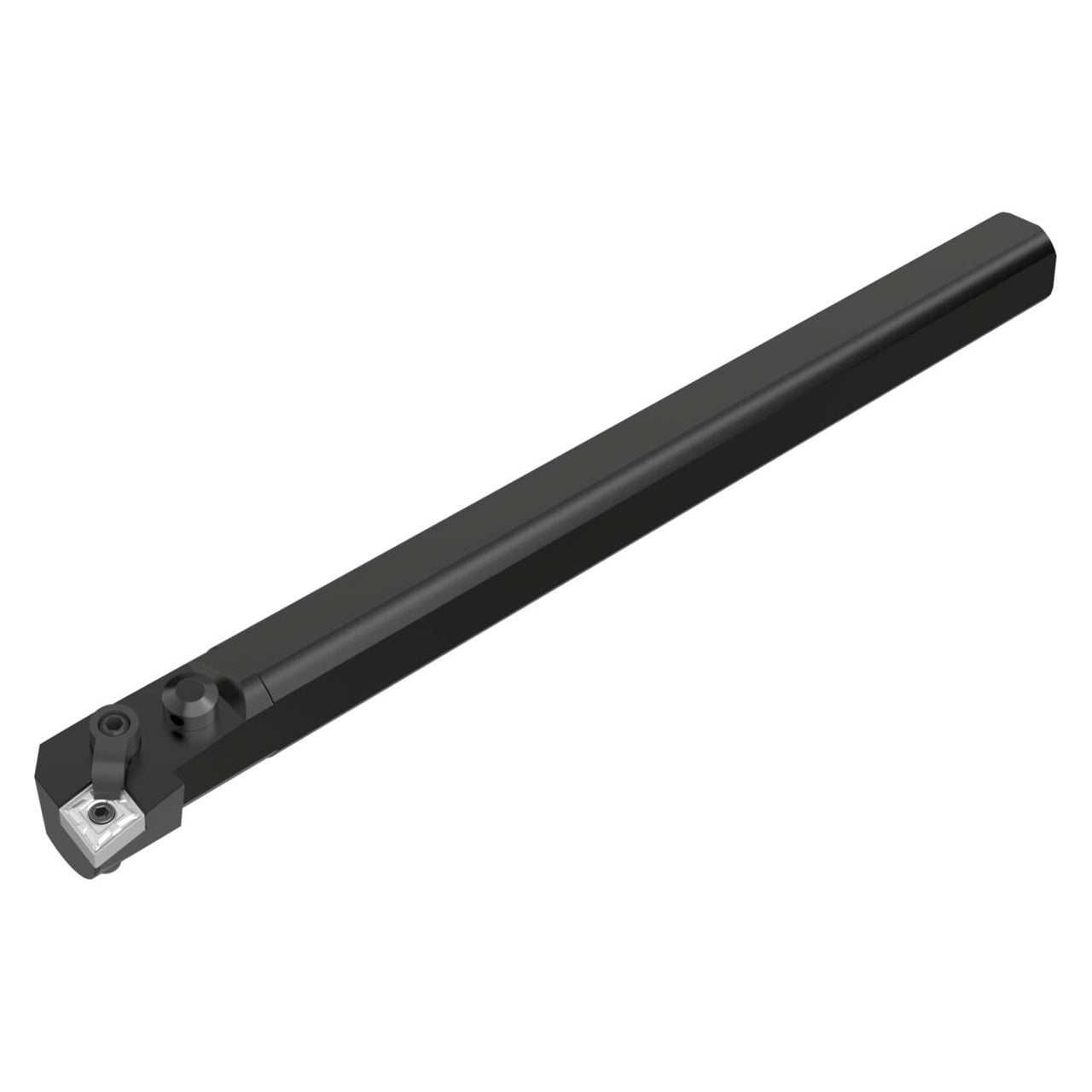

| Product Type | Indexable Boring Bar |
