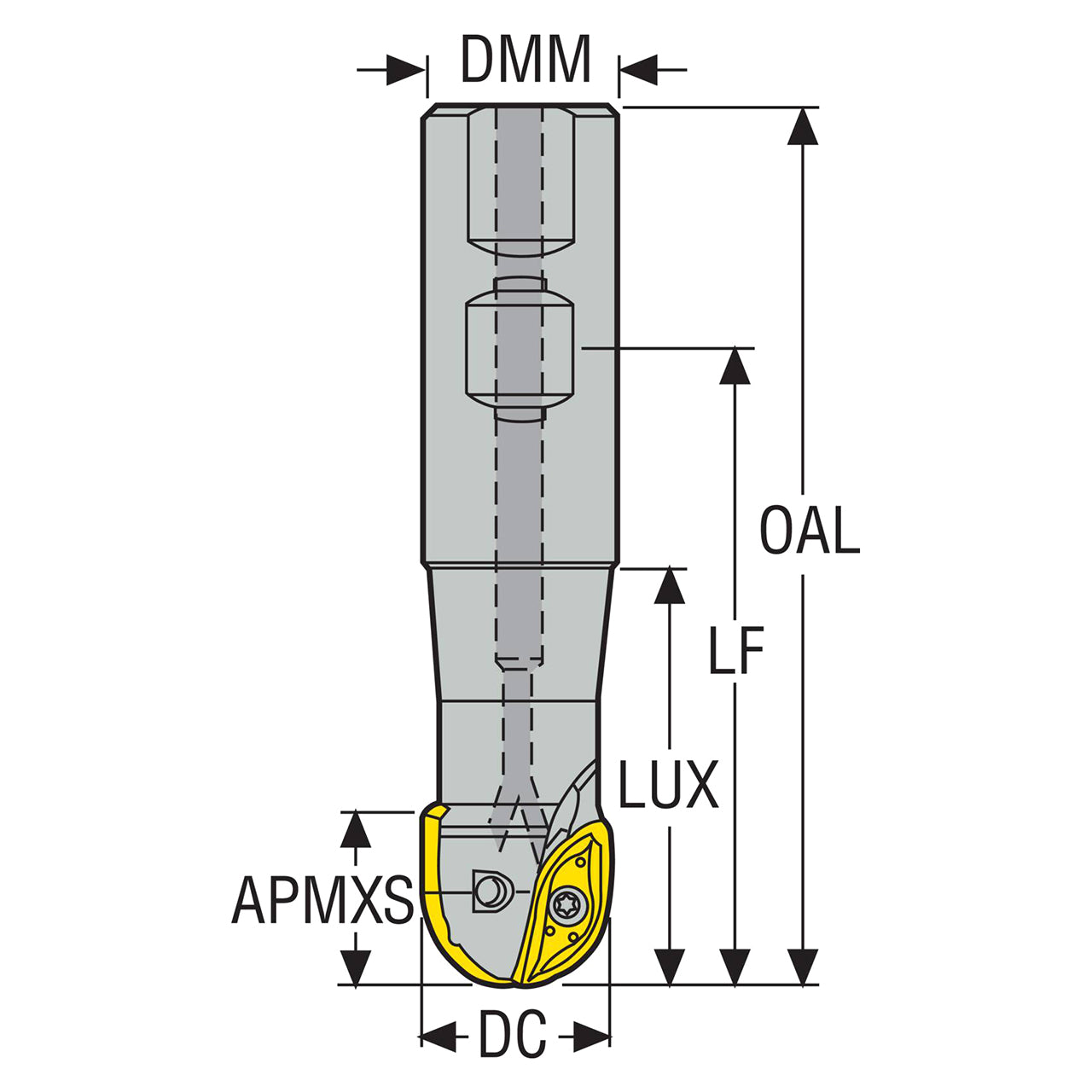

Product Specifications
| Manufacturer Part Number | 00040027 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 5.435" |
| Functional Length (mm) | 138.05mm |
| Protruding Length (Decimal Inch) | 3.870" |
| Protruding Length (mm) | 98.30mm |
| Shank Length (Decimal Inch) | 3.083" |
| Shank Length (mm) | 78.30mm |
| Overall Length (Decimal Inch) | 6.626" |
| Overall Length (mm) | 168.30mm |
| Maximum Depth of Cut (mm) | 34.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.339" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Maximum Rotational Speed (rpm) | 7200 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Insert Shape Code | 218.20 |
| Shank Type | Weldon |

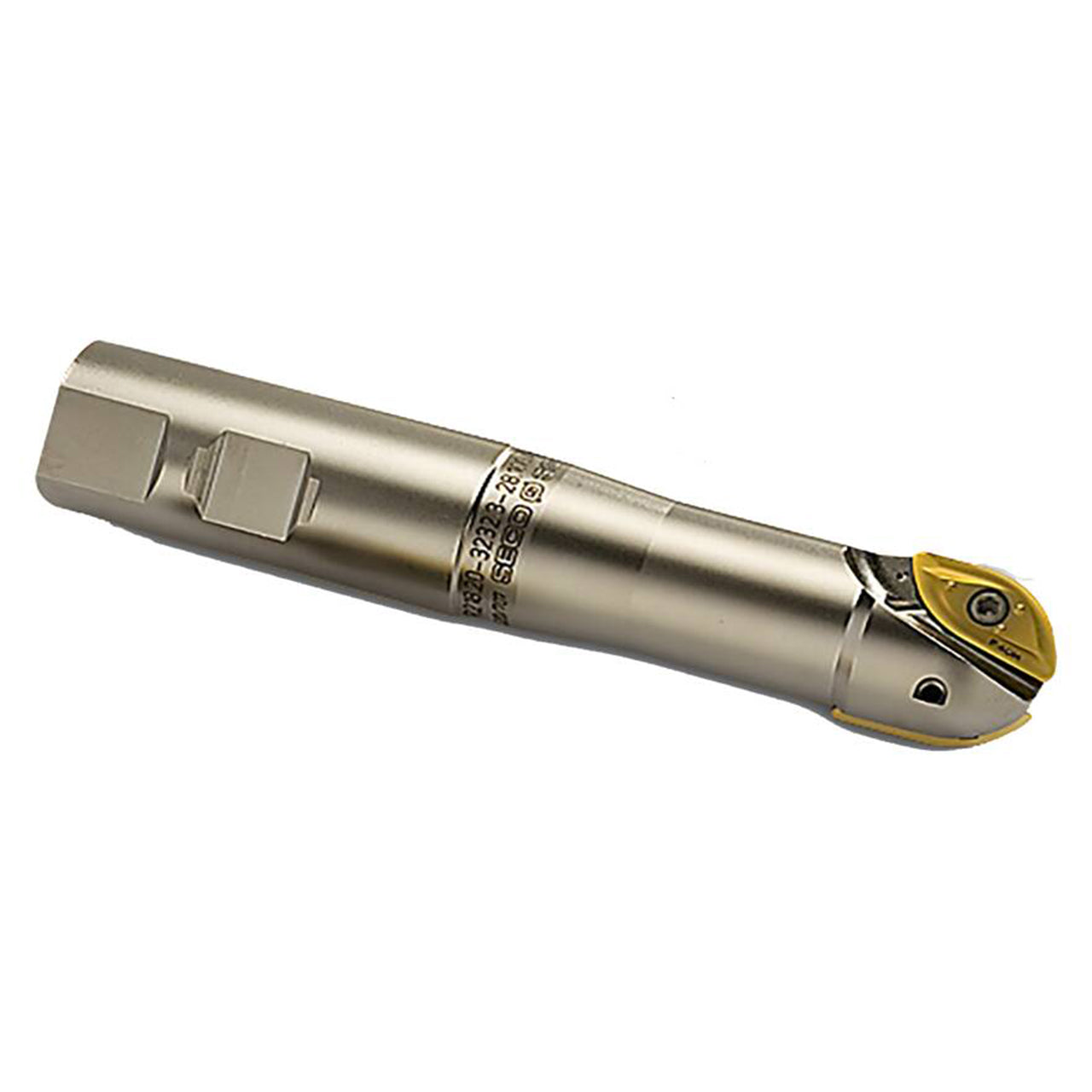

| Product Type | Indexable Ball Nose End Mill |
