Product Specifications

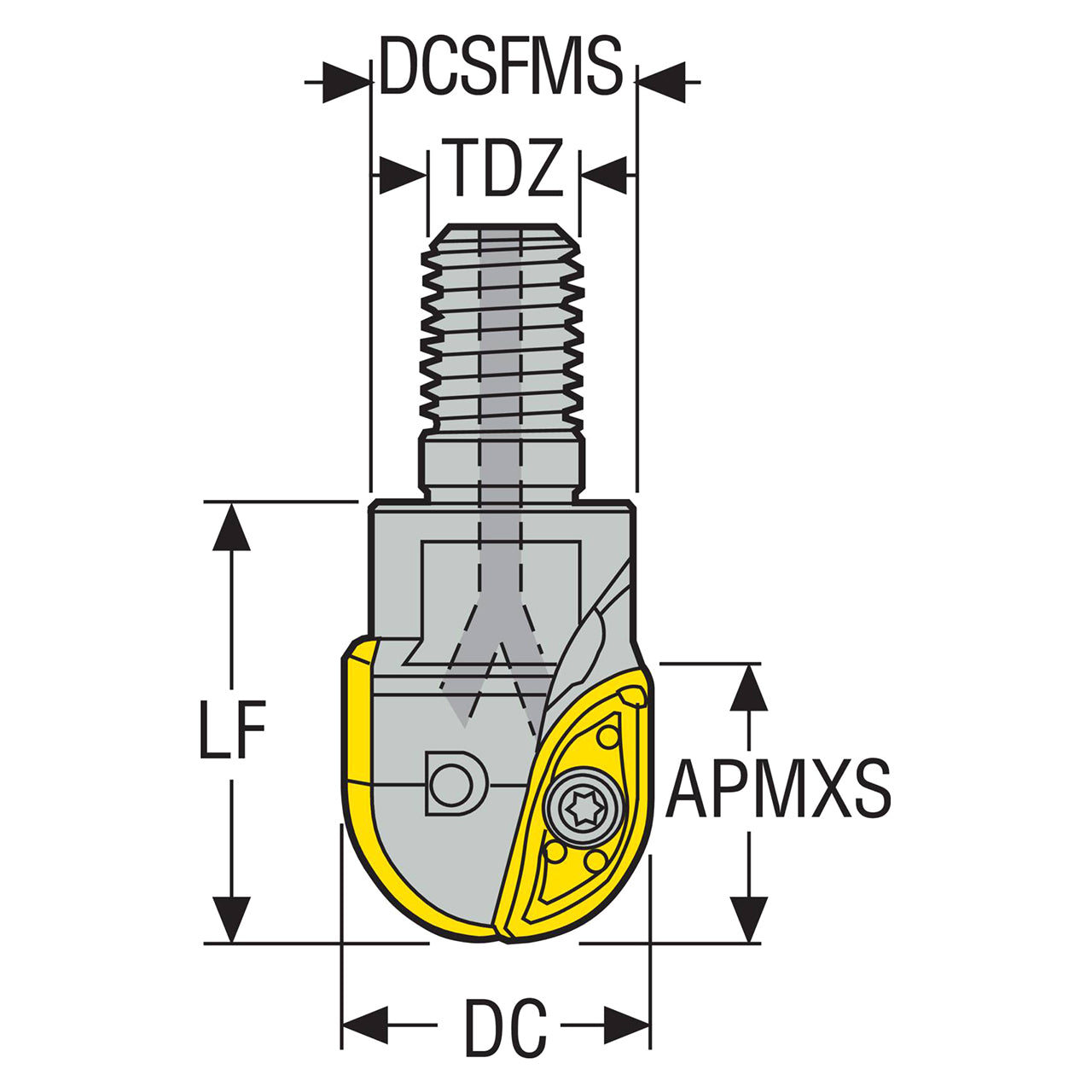

| Manufacturer Part Number | 00040019 |
| Cutting Diameter (Decimal Inch) | 1.250" |
| Cutting Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.122" |
| Contact Surface Diameter Machine Side (mm) | 28.50mm |
| Thread Diameter Size | M16 |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 2.471" |
| Overall Length (mm) | 62.75mm |
| Maximum Depth of Cut (mm) | 28.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.102" |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Maximum Rotational Speed (rpm) | 10900 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Insert Shape Code | 218.20 |
| Shank Type | Combimaster |

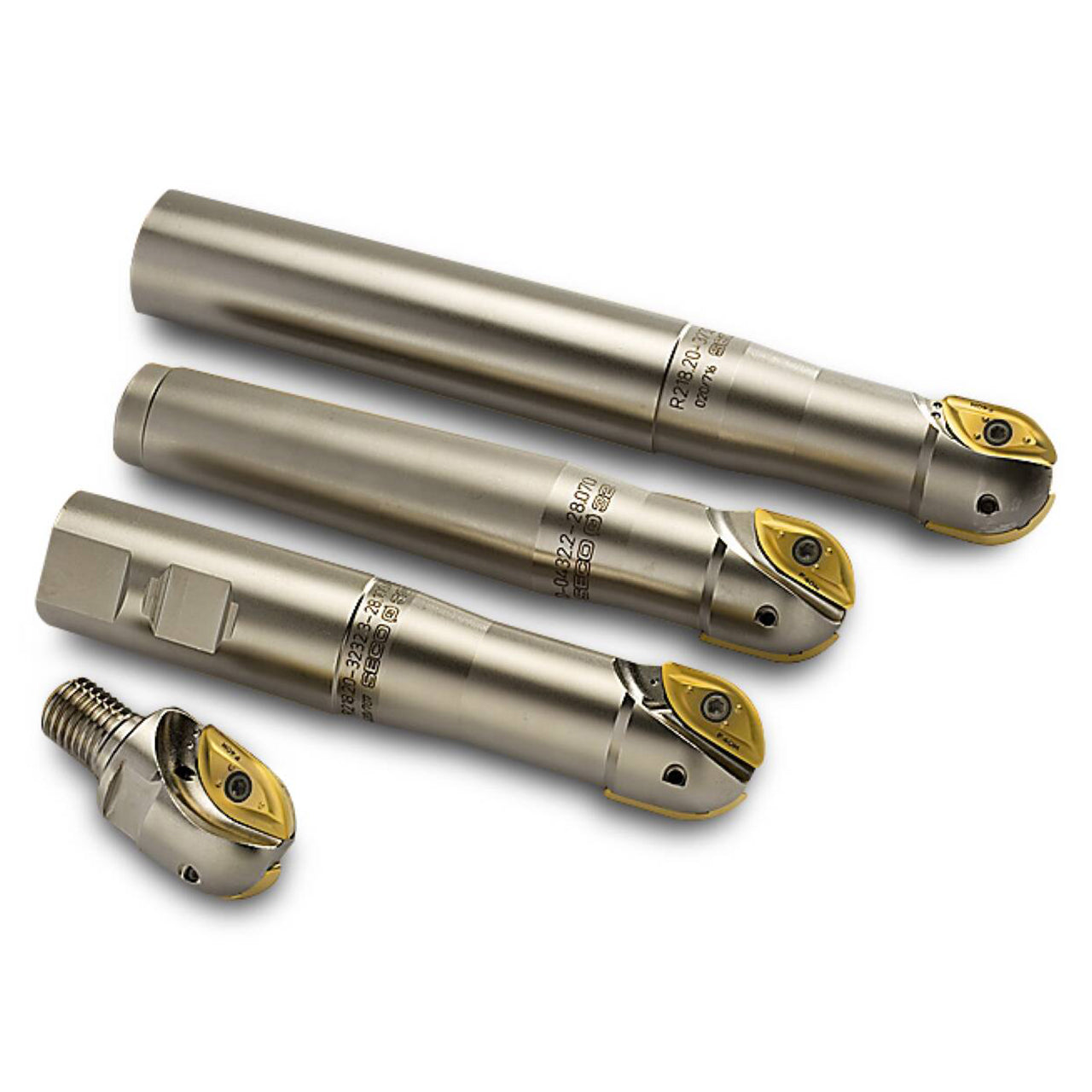

| Product Type | Indexable Ball Nose End Mill |
