Product Specifications
| Manufacturer Part Number | 00039777 |

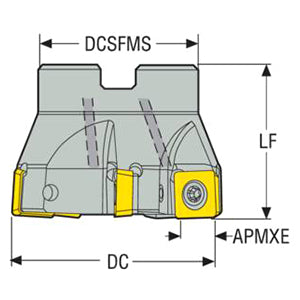

| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.850" |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Functional Length (Decimal Inch) | 1.500" |
| Functional Length (mm) | 38.10mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.433" |
| Depth of Key Way (Decimal Inch) | 0.193" |
| Depth of Key Way (mm) | 4.90mm |
| Keyway Width (Decimal Inch) | 0.321" |
| Keyway Width (mm) | 8.15mm |
| Rake Radial Angle (Degree) | -2 Degree |
| Rake Radial Angle (Degree) | -2 Degree |
| Tool Cutting Edge Angle (Degree) | 87 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 87 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 8600 rpm |
| Shank Type | Arbor |

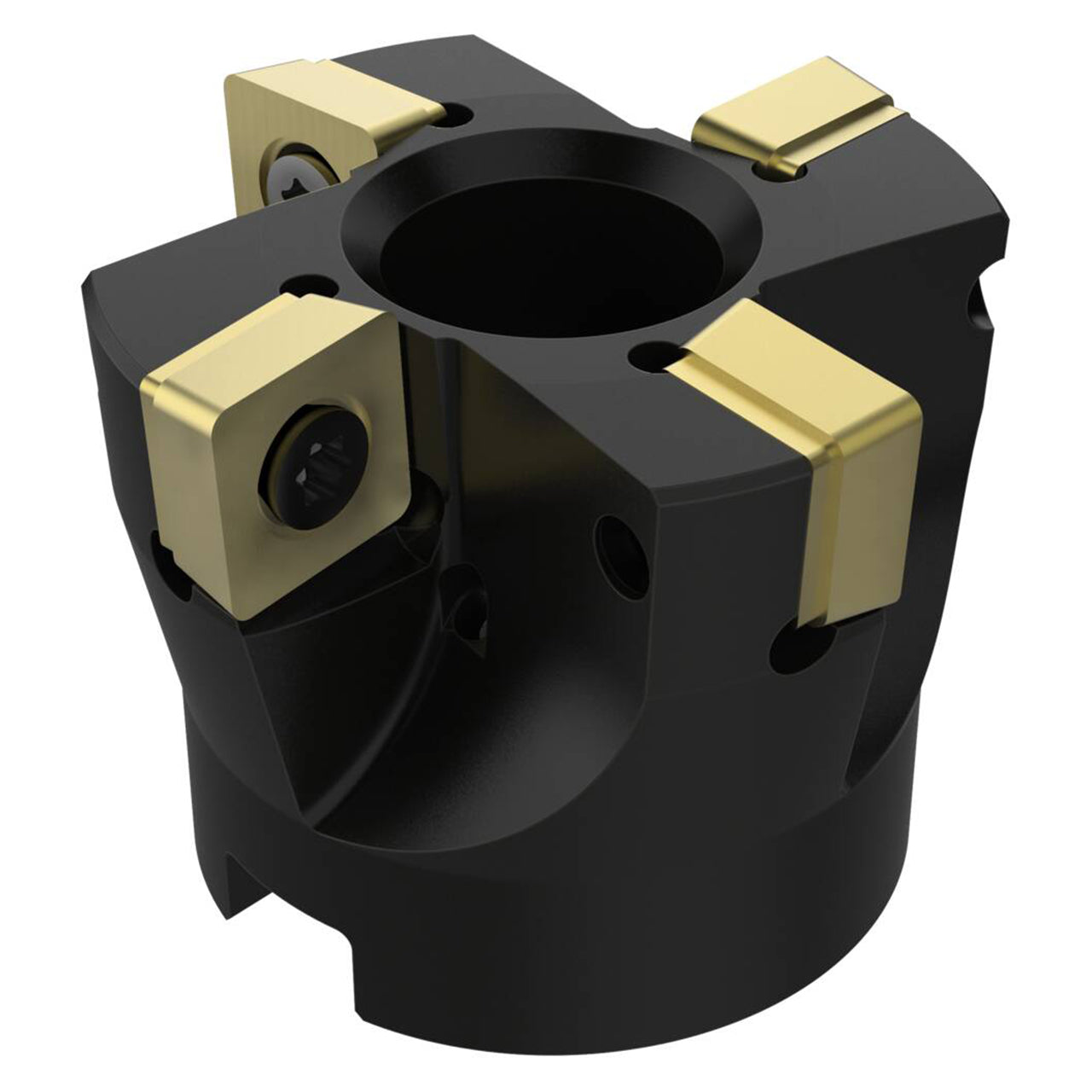

| Product Type | Plunge Mill |
