Product Specifications
| Manufacturer Part Number | 00039384 |
| Body Diameter 1 (Decimal Inch) | 0.354" |
| Body Diameter 1 (mm) | 9.00mm |
| Body Diameter 2 (Decimal Inch) | 0.630" |
| Body Diameter 2 (mm) | 15.99mm |
| Connection Bore Diameter (Decimal Inch) | 0.118" |
| Connection Bore Diameter (mm) | 3.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Minimum Connection Bore Diameter (mm) | 3.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.118" |
| Maximum Connection Bore Diameter (mm) | 3.00mm |
| Body Length (Decimal Inch) | 1.969" |
| Body Length (mm) | 50.00mm |
| Body Length 1 (Decimal Inch) | 1.969" |
| Body Length 1 (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 2.244" |
| Functional Length (mm) | 57.00mm |
| Minimum Functional Length (Decimal Inch) | 2.185" |
| Protruding Length (Decimal Inch) | 2.756" |
| Protruding Length (mm) | 70.00mm |
| Clamping Length (Decimal Inch) | 0.512" |
| Clamping Length (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Body Half Taper Angle 1 (Degree) | 5 Degree |
| Body Half Taper Angle Degree) | 3 Degree |

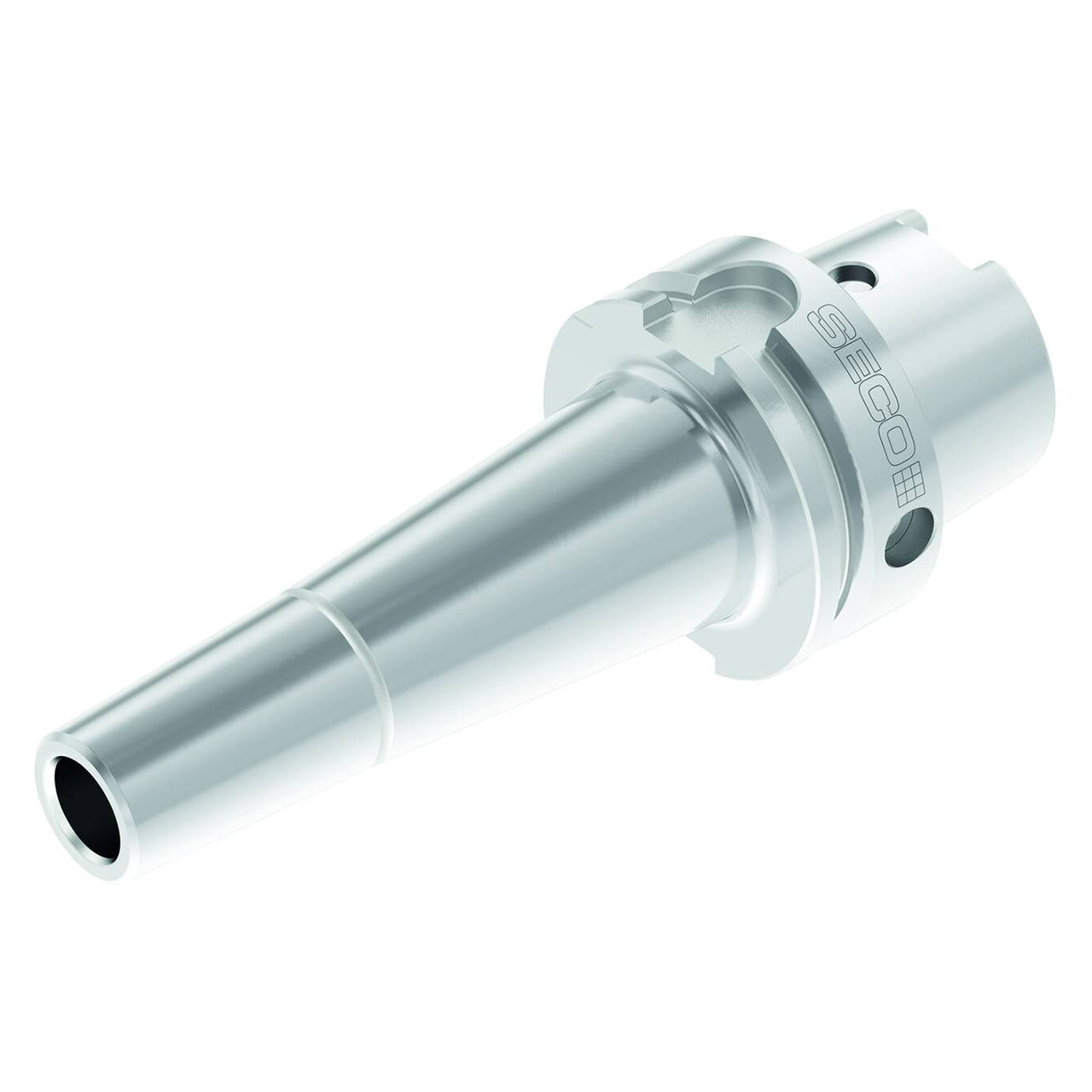

| Product Type | Shrink-Fit Tool Holder |
