Product Specifications
| Manufacturer Part Number | 00038033 |
| Body Diameter (Decimal Inch) | 1.378" |
| Body Diameter (mm) | 35.00mm |
| Cutting Width (Decimal Inch) | 0.118" |
| Cutting Width (mm) | 3.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.772" |
| Minimum Cutting Diameter Internal (mm) | 45.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Functional Length (Decimal Inch) | 3.543" |
| Functional Length (mm) | 90.00mm |
| Head Length (Decimal Inch) | 2.756" |
| Head Length (mm) | 70.00mm |
| Shank Type | Seco-Capto |
| Torque (Nm) | 3.5Nm |
| Functional Width (Decimal Inch) | 0.984" |
| Functional Width (mm) | 25.00mm |

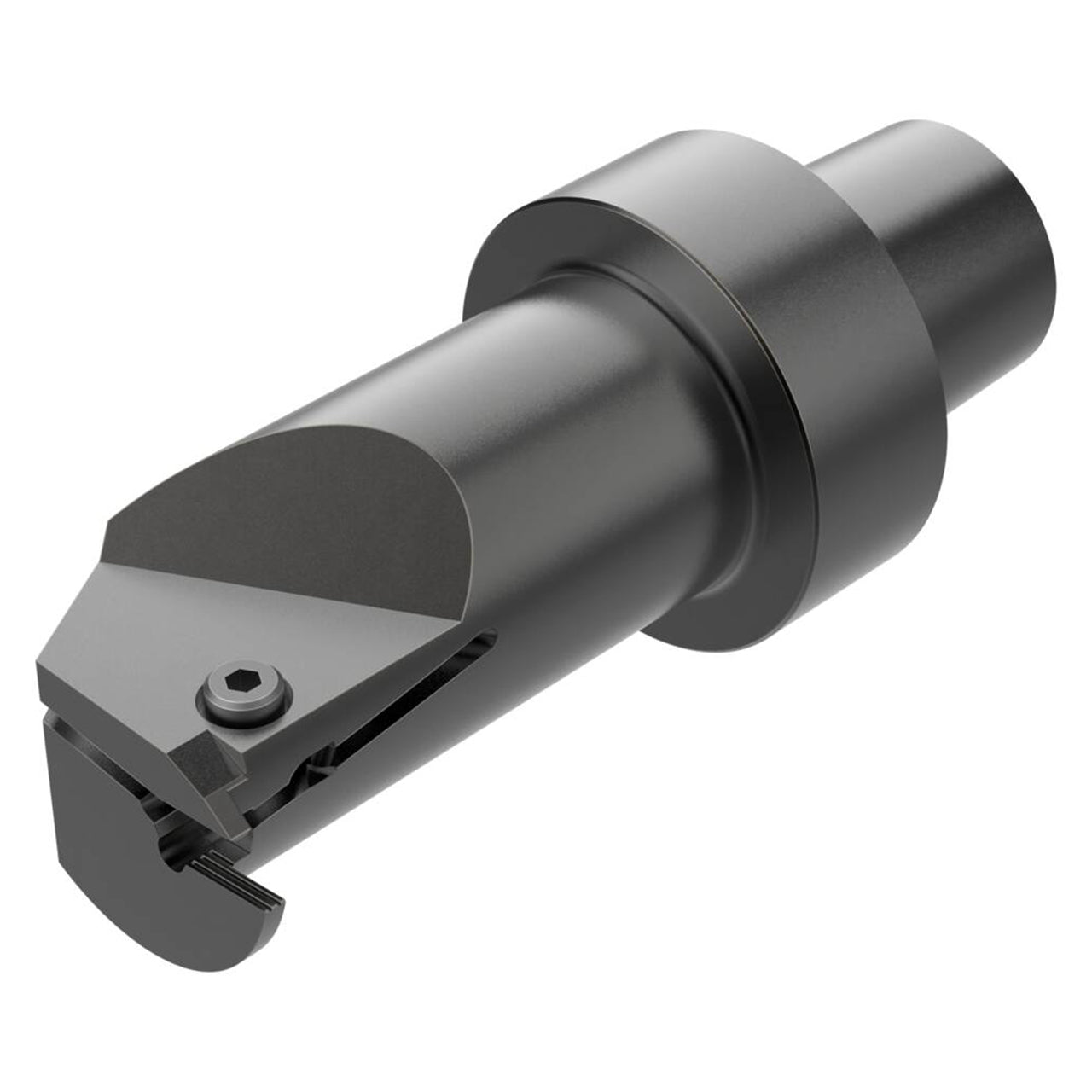

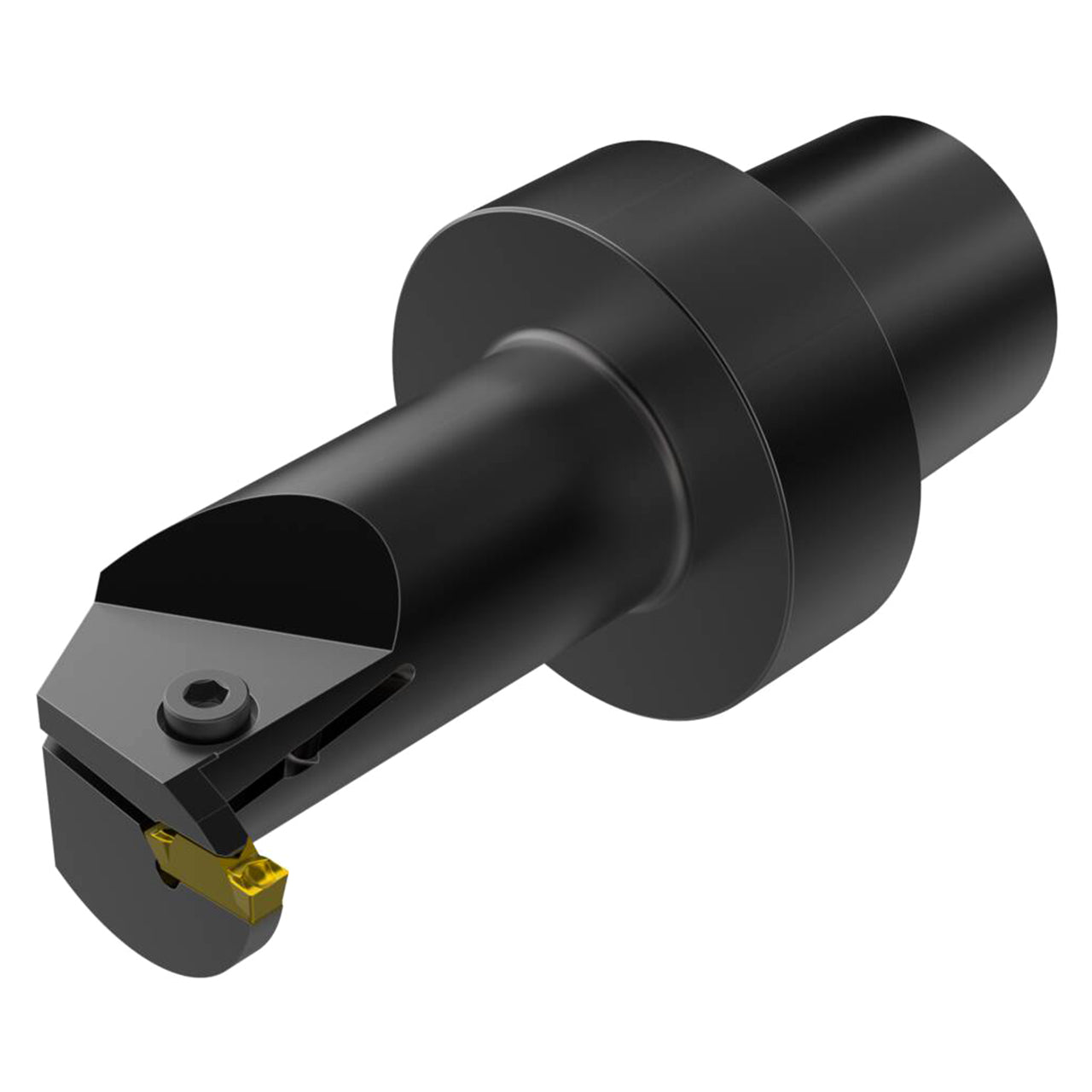

| Product Type | Modular Turning Head |
